Original Axial flow fan 614NM 24V 6cm frequency converter cooling fan mute fan
Manufacturer
Manufacturer Product Number
614NM
Description
614NM FAN AXIAL 60X25.4MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
614NM |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
600N |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 60mm L x 60mm H |
|
Width |
25.40mm |
|
Air Flow |
20.6 CFM (0.577m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
28.0dB(A) |
|
Power (Watts) |
1.4 W |
|
RPM |
4100 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.145 lb (65.77 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
18 ~ 28VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
80000 Hrs @ 40°C |
|
Base Product Number |
614N |

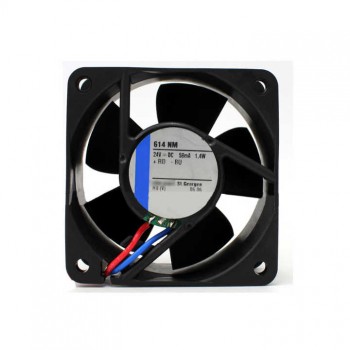

Actual image of the product
