Hot sale Original S1M-E3/5AT DIODE GEN PURP 1KV 1A DO214AC Rectifiers Single Diodes Surface Mount DO-214AC (SMA) 12pF
Manufacturer Product Number
S1M-E3/5AT
Description
Original S1M-E3/5AT DIODE GEN PURP 1KV 1A DO214AC Rectifiers Single Diodes Surface Mount DO-214AC (SMA) 12pF @ 4V, 1MHz
Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
A reasonable reverse voltage is 1kV.The average rectified current for this device is 1A volts.When the forward current reaches 1A, it is allowed.The maximum surge current is 30A.This device can deliver a value of 12pF depending on the capacitance.A data chart shows that the peak reverse is 5μA in the datasheets.
Product Features
an average rectified current of 1A volts
the peak reverse is 5μA
Product Applications
S1M-E3/5AT applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - S1M-E3/5AT |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Technology |
Standard |
|
Voltage - DC Reverse (Vr) (Max) |
1000 V |
|
Current - Average Rectified (Io) |
1A |
|
Voltage - Forward (Vf) (Max) @ If |
1.1 V @ 1 A |
|
Speed |
Standard Recovery >500ns, > 200mA (Io) |
|
Reverse Recovery Time (trr) |
1.8 µs |
|
Current - Reverse Leakage @ Vr |
5 µA @ 1000 V |
|
Capacitance @ Vr, F |
12pF @ 4V, 1MHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AC, SMA |
|
Supplier Device Package |
DO-214AC (SMA) |
|
Operating Temperature - Junction |
-55°C ~ 150°C |
|
Base Product Number |
S1M |

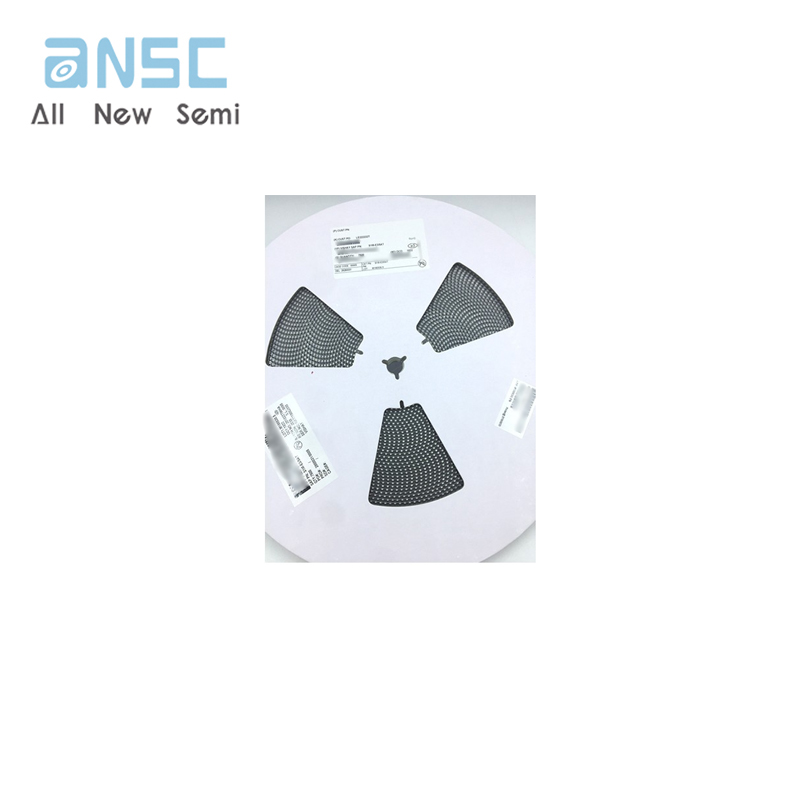

Actual image of the product

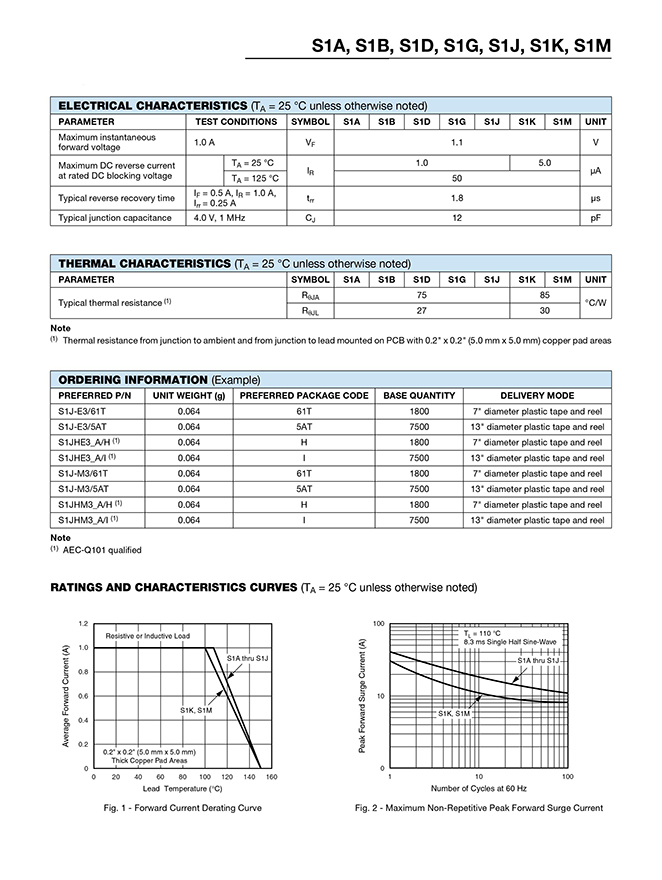

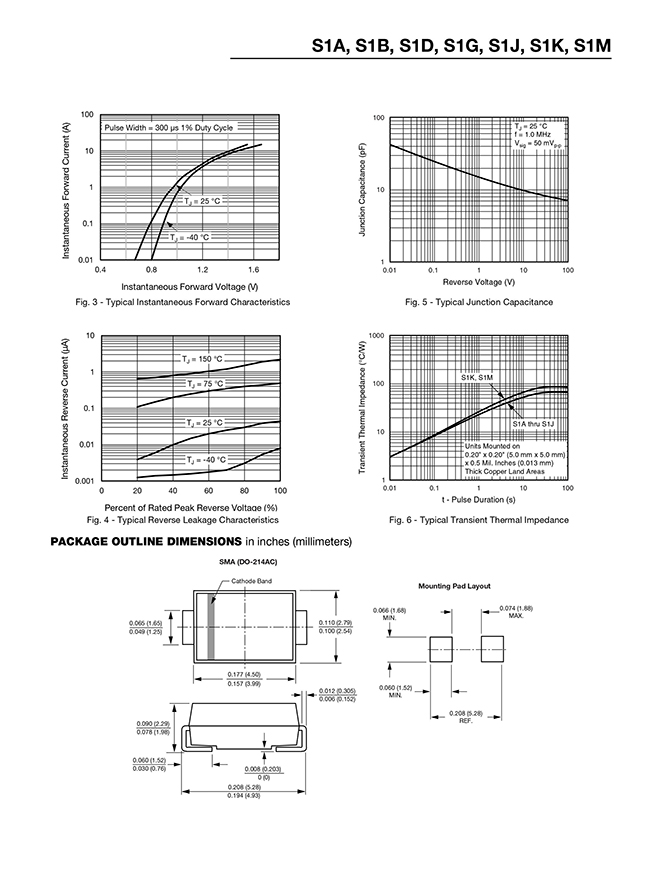

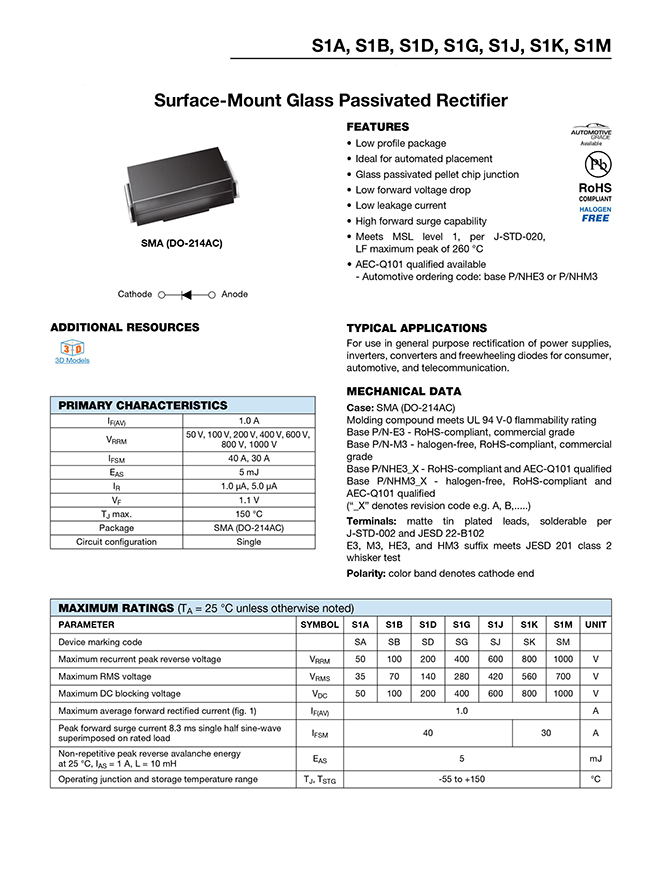

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
