Hot sale Original SMBJ33CA-TR TVS DIODE 33VWM DO-214AA/SMB 53.3V Clamp 11.8A Ipp Tvs Diode Surface Mount General Purpose
Manufacturer Product Number
SMBJ33CA-TR
Description
Original SMBJ33CA-TR TVS DIODE 33VWM DO-214AA/SMB 53.3V Clamp 11.8A Ipp Tvs Diode Surface Mount General Purpose
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Applications
The SMBJ series are TRANSILTM diodes designed specifically for protecting sensitive equipment against transient overvoltages.
Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
Product Features
PEAK PULSE POWER : 600 W (10/1000µs)
STAND OFF VOLTAGE RANGE : From 5V to 188V.
UNI AND BIDIRECTIONAL TYPES
LOW CLAMPING FACTOR
FAST RESPONSE TIME
JEDEC REGISTERED PACKAGE OUTLINE
Product Description
|
type |
description |
|---|---|
|
ANSC PART# |
ANSC - SMBJ33CA-TR |
|
category |
Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes |
|
Mfr |
Original |
|
Series |
SMBJ, TRANSIL™ |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Type |
Zener |
|
Bidirectional Channels |
1 |
|
Voltage - Reverse Standoff (Typ) |
33V |
|
Voltage - Breakdown (Min) |
36.7V |
|
Voltage - Clamping (Max) @ Ipp |
53.3V |
|
Current - Peak Pulse (10/1000µs) |
11.8A |
|
Power - Peak Pulse |
600W |
|
Power Line Protection |
No |
|
Applications |
General Purpose |
|
Capacitance @ Frequency |
- |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AA, SMB |
|
Supplier Device Package |
SMB |
|
Base Product Number |
SMBJ33 |

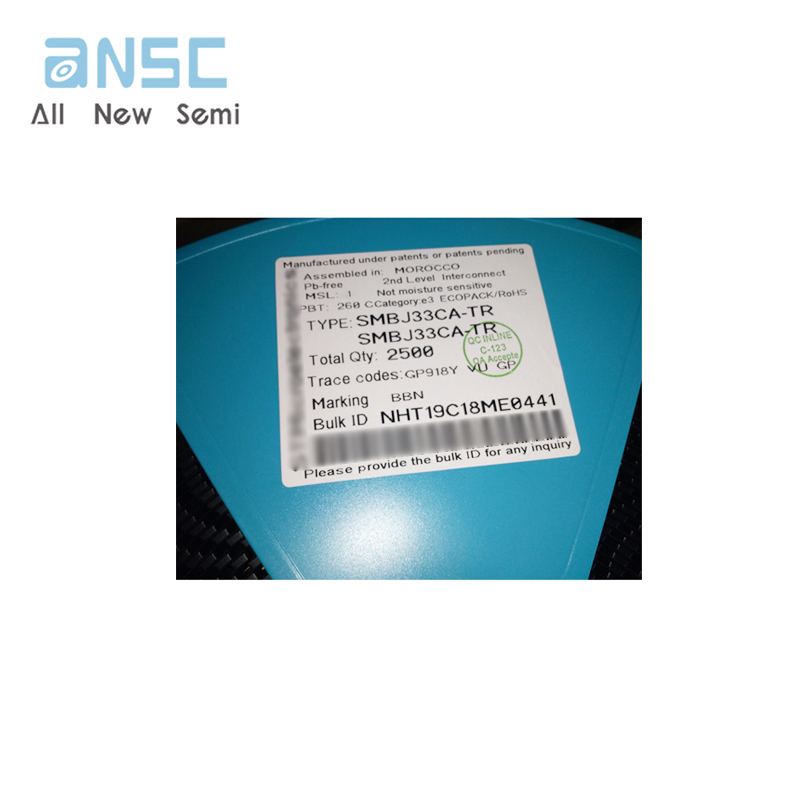

Actual image of the product

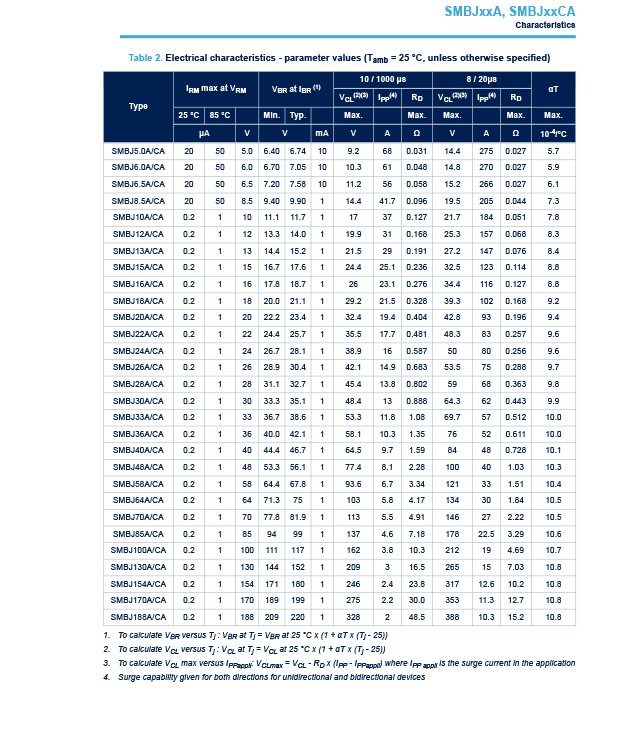

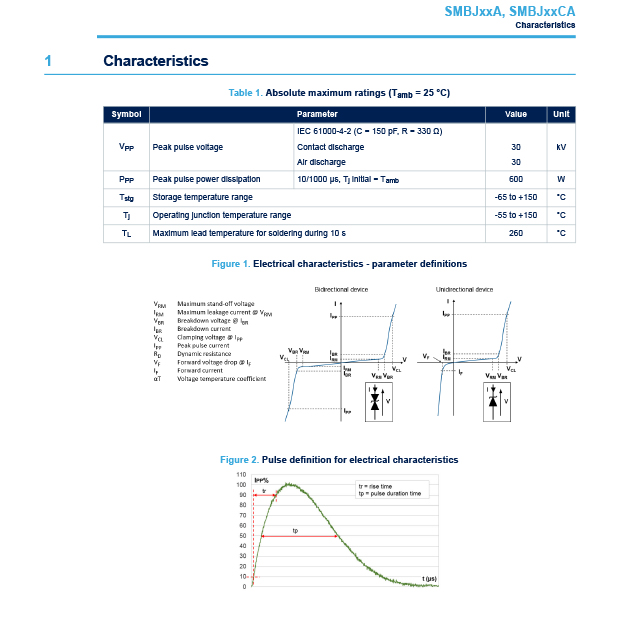

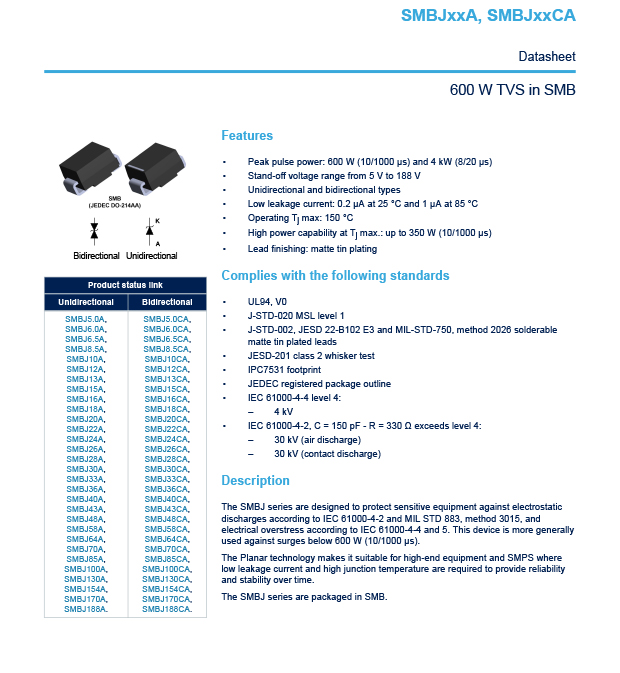

Product datasheet
For more information, please download
