Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
You can contact me for the best price MBRS540T3G Rectifier Single DIODE SCHOTTKY 40V 5A DO-214AB Surface Mount Hot sale Original
Manufacturer Product Number
MBRS540T3G
Description
MBRS540T3G Rectifier Single DIODE SCHOTTKY 40V 5A DO-214AB Surface Mount Hot sale Original
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

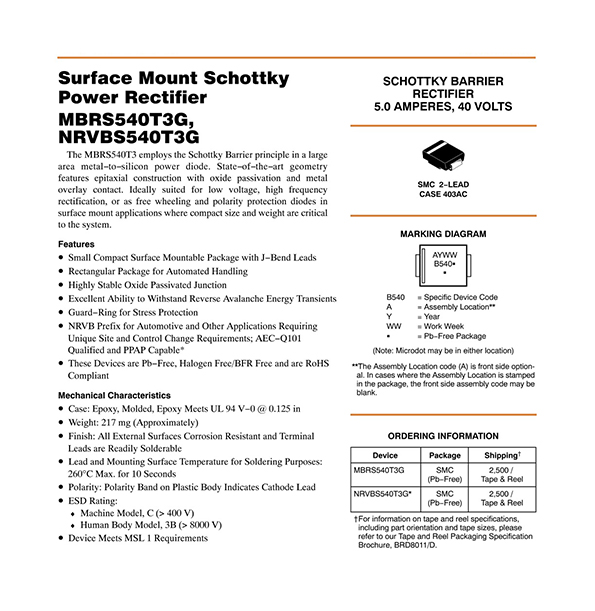

| Surface Mount Schottky Power Rectifier . . . employing the Schottky Barrier principle in a large area metal–to–silicon power diode. State–of–the–art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. • Small Compact Surface Mountable Package with J–Bend Leads • Rectangular Package for Automated Handling • Highly Stable Oxide Passivated Junction • Very Low Forward Voltage Drop (0.55 Volts Max @ 1.0 A, TJ = 25°C) • Excellent Ability to Withstand Reverse Avalanche Energy Transients • Guardring for Stress Protection |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - MBRS540T3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 300 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | MBRS540 |

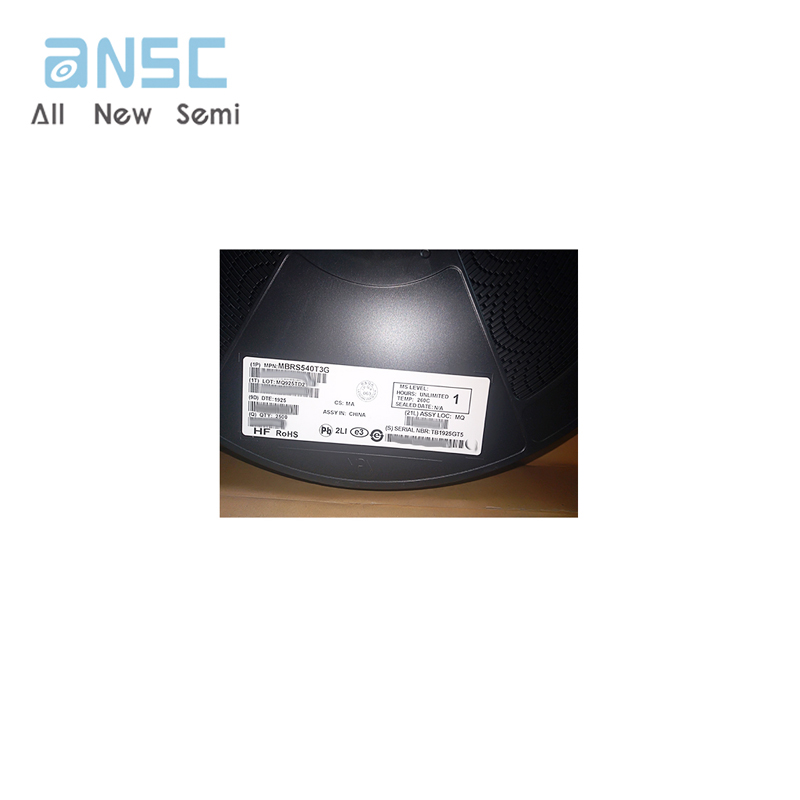

Product Photos

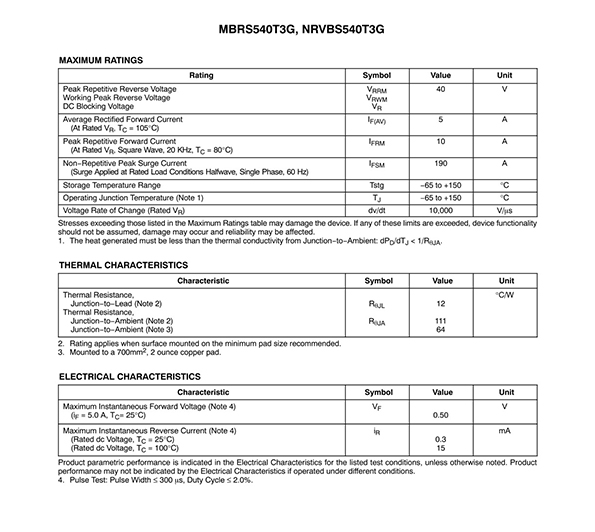

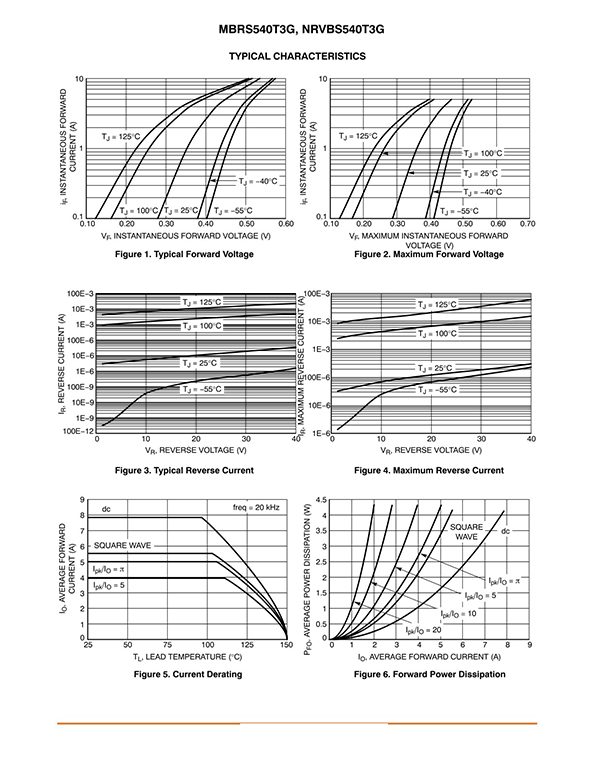

Product datasheet
For more information, please download
