Hot sale Original MURS140-E3/52T DIODE GEN PURP 400V 2A Rectifiers Single Diodes Standard Surface Mount DO-214AA (SMB)
Manufacturer Product Number
MURS140-E3/52T
Description
Original MURS140-E3/52T DIODE GEN PURP 400V 2A Rectifiers Single Diodes Standard Surface Mount DO-214AA (SMB)
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
Phase diode rectifier is reasonable to reverse the voltage to 400V.This device's average rectified current is zero volts.A forward current of 2A is allowed.As for rectifiers current rating, rectifier is 1A, which is the maximum current a fuse can carry wrectifierhout too much degradation.Surge currents are limited to 35A.The datasheets show a peak reverse of 5μA, as shown in the data chart.
Product Features
an average rectified current of 2A volts
a current rating of 1A
the peak reverse is 5μA
Product Applications
MURS140-E3/52T applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - MURS140-E3/52T |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Technology |
Standard |
|
Voltage - DC Reverse (Vr) (Max) |
400 V |
|
Current - Average Rectified (Io) |
2A |
|
Voltage - Forward (Vf) (Max) @ If |
1.25 V @ 1 A |
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io) |
|
Reverse Recovery Time (trr) |
75 ns |
|
Current - Reverse Leakage @ Vr |
5 µA @ 400 V |
|
Capacitance @ Vr, F |
- |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AA, SMB |
|
Supplier Device Package |
DO-214AA (SMB) |
|
Operating Temperature - Junction |
-65°C ~ 175°C |
|
Base Product Number |
MURS140 |

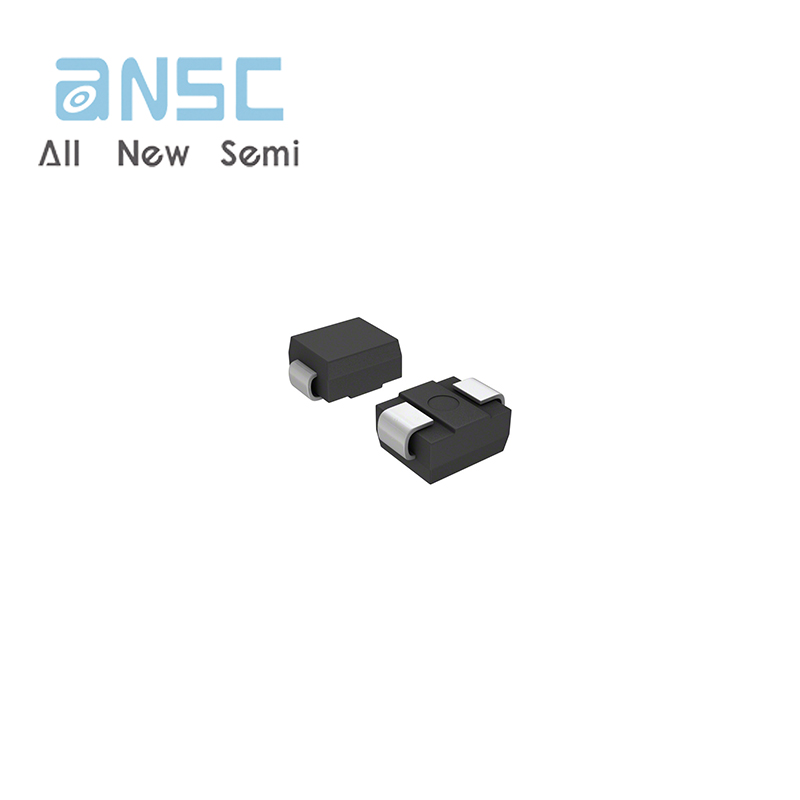

Actual image of the product

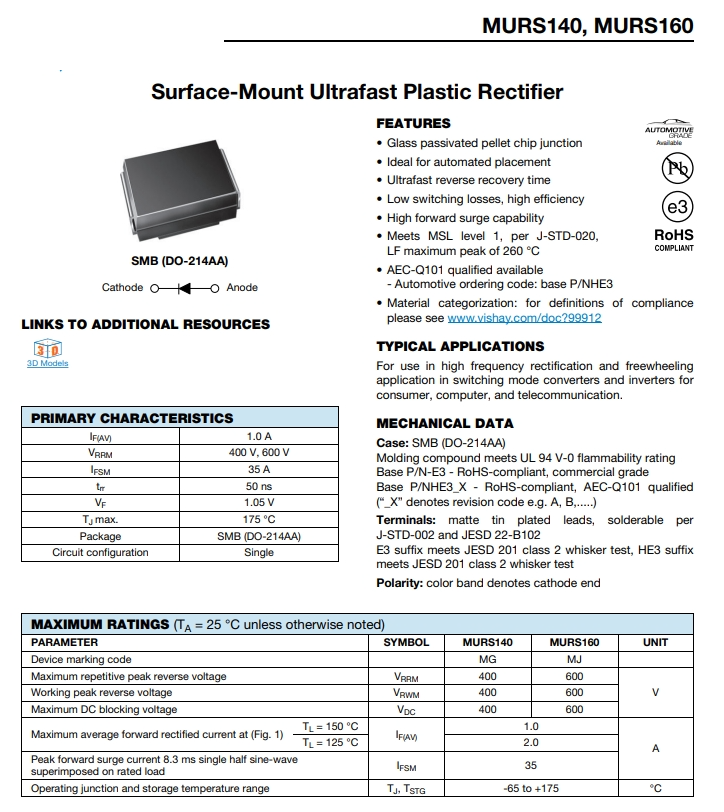

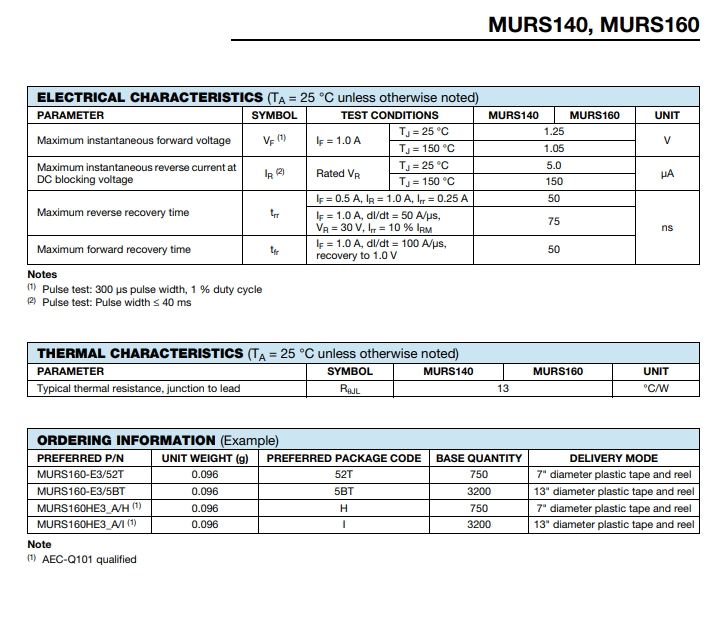

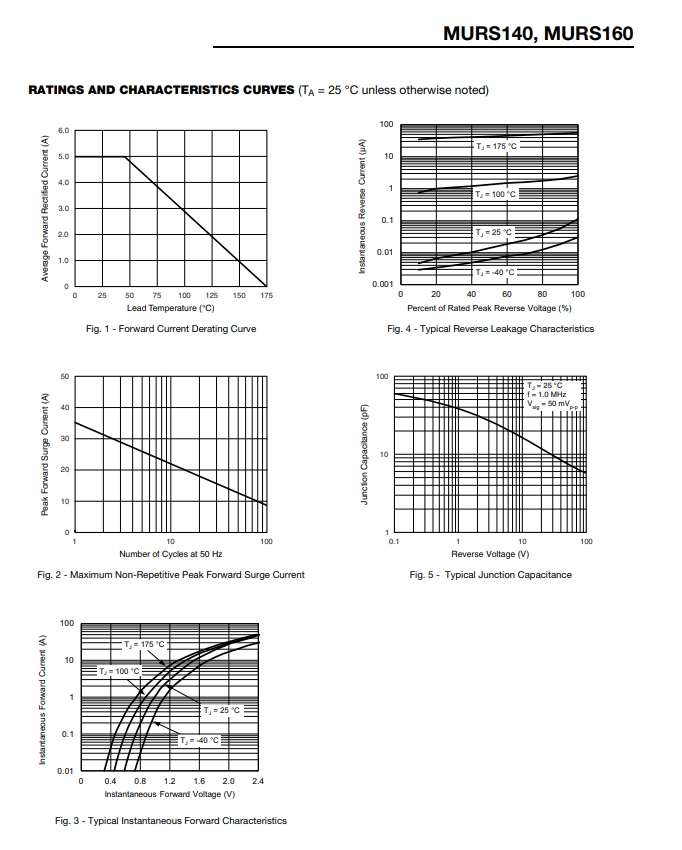

Product datasheet
For more information, please download
