Hot sale Original SS16 Rectifiers Single DIODE SCHOTTKY 60V 1A DO214AC Diode DO-214AC Surface Mount 700 mV 1 A Diode
Manufacturer Product Number
SS16
Description
SS16 Diode 60V 1A Surface Mount DO-214AC (SMA)
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
· Plastic Package has Underwriters Laboratory
Flammability Classification 94V-0
· Metal silicon junction, majority carrier conduction
· For surface mount applications
· Guard ring for overvoltage protection
· Low power loss, high efficiency
· High current capability, Low forward voltage drop
· High surge capability
· For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
· High temperature soldering guaranteed : 250℃/10 seconds at terminals
Product Description
| Type | Description |
| ANSC PART# | ANSC- SS16 |
| Ihs Manufacturer | / |
| Part Package Code | SMA |
| Package Description | SMA, 2 PIN |
| Pin Count | 2 |
| Manufacturer Package Code | 403AE |
| Factory Lead Time | 4 Weeks |
| Samacsys Manufacturer | onsemi |
| Additional Feature | FREE WHEELING DIODE |
| Application | GENERAL PURPOSE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.475 V |
| JESD-30 Code | R-PDSO-C2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 30 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Output Current-Max | 1 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 60 V |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |

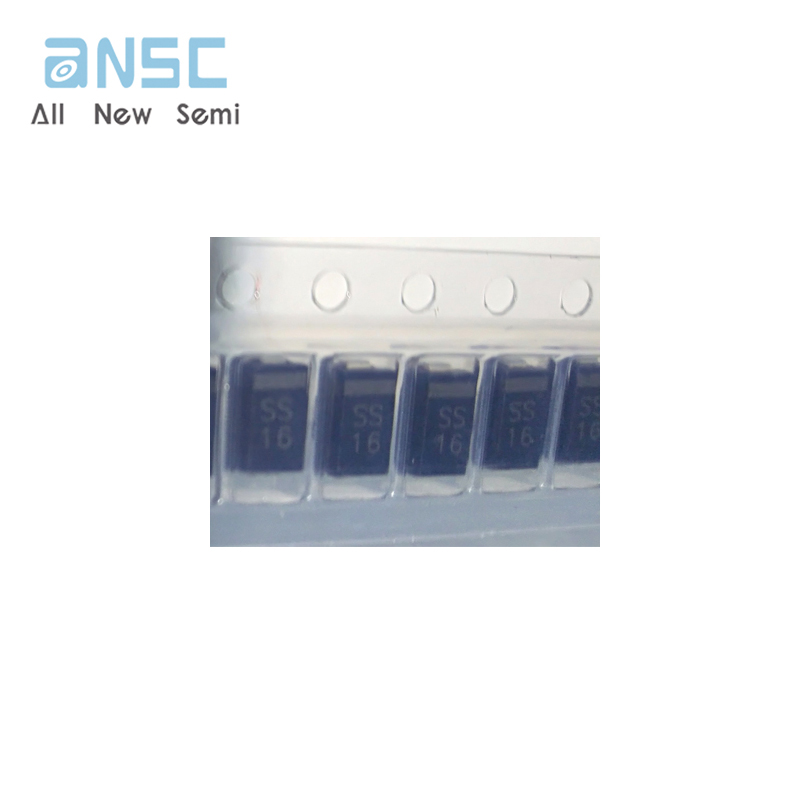

Actual image of the product

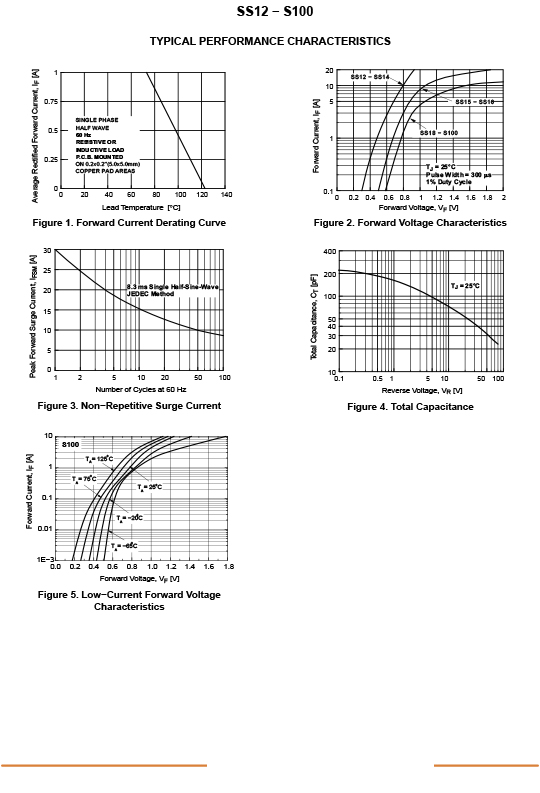

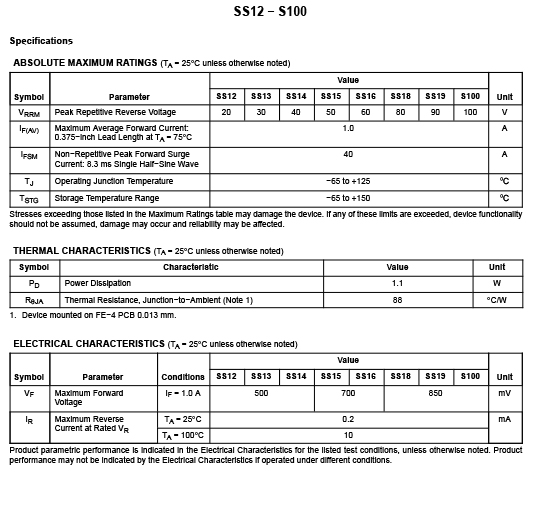

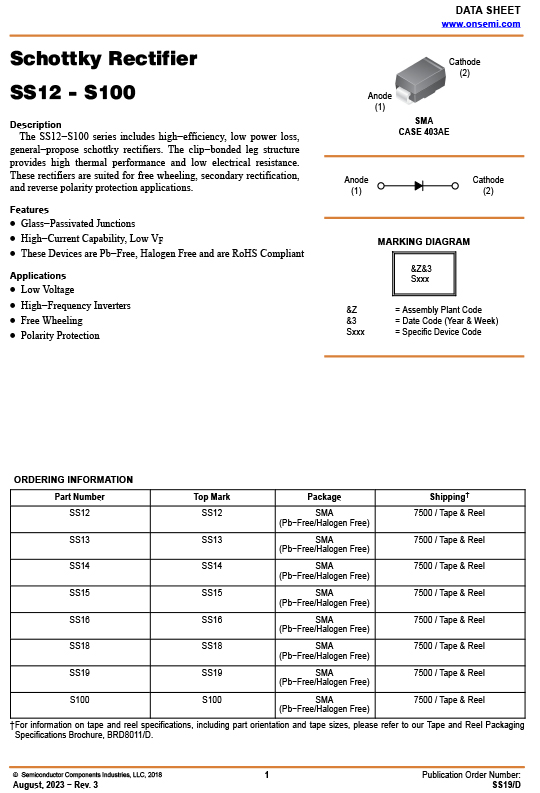

Product datasheet
For more information, please download
