Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original PMLL4150 DIODE 0.3 A 75V SILICON SIGNAL DIODE HERMETIC SEALED GLASS SMD 2 PIN Signal Diode
Manufacturer Product Number
PMLL4150
Description
PMLL4150 DIODE 0.3 A 75V SILICON SIGNAL DIODE HERMETIC SEALED GLASS SMD 2 PIN Signal Diode
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
DESCRIPTION
The PMLL4150, PMLL4151, PMLL4153 are high-speed switching diodes fabricated in planar technology,
and encapsulated in small hermetically sealed glass SOD80C SMD packages.
FEATURES
• Small hermetically sealed glass SMD package
• High switching speed: max. 4 ns
• General application
• Continuous reverse voltage: max. 50 V
• Repetitive peak reverse voltage: max. 75 V
• Repetitive peak forward current: max. 600 mA and 450 mA respectively.
APPLICATIONS
• High-speed switching
• The PMLL4150 is primarily intended for general purpose use in computer and industrial applications.
• The PMLL4151 and PMLL4153 are intended for military and industrial applications.
Product Description
| TYPE# | DESCRIPTION |
| ANSC PART# | ANSC- PMLL4150 |
| Manufacturer | / |
| Package Description | HERMETIC SEALED, GLASS, SMD, 2 PIN |
| Pin Count | 2 |
| Additional Feature | HIGH SPEED SWITCH |
| Application | GENERAL PURPOSE |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1 V |
| Non-rep Pk Forward Current-Max | 4 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 200 °C |
| Output Current-Max | 0.3 A |
| Package Body Material | GLASS |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Power Dissipation-Max | 0.5 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 75 V |
| Reverse Current-Max | 0.1 µA |
| Reverse Recovery Time-Max | 0.006 µs |
| Surface Mount | YES |
| Terminal Form | WRAP AROUND |
| Terminal Position | END |

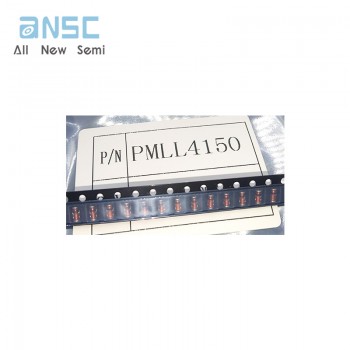

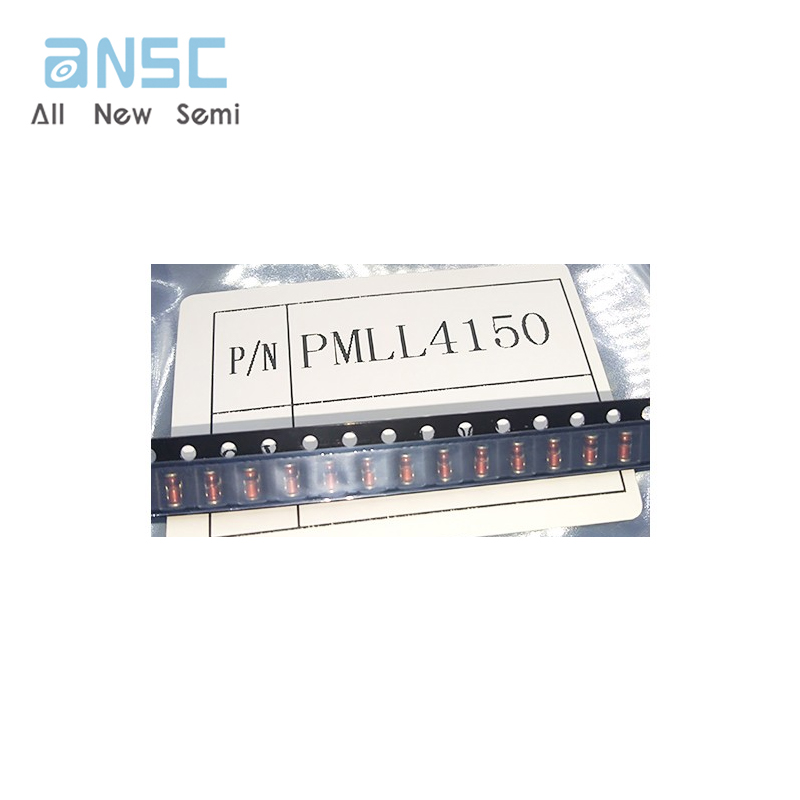

Actual image of the product

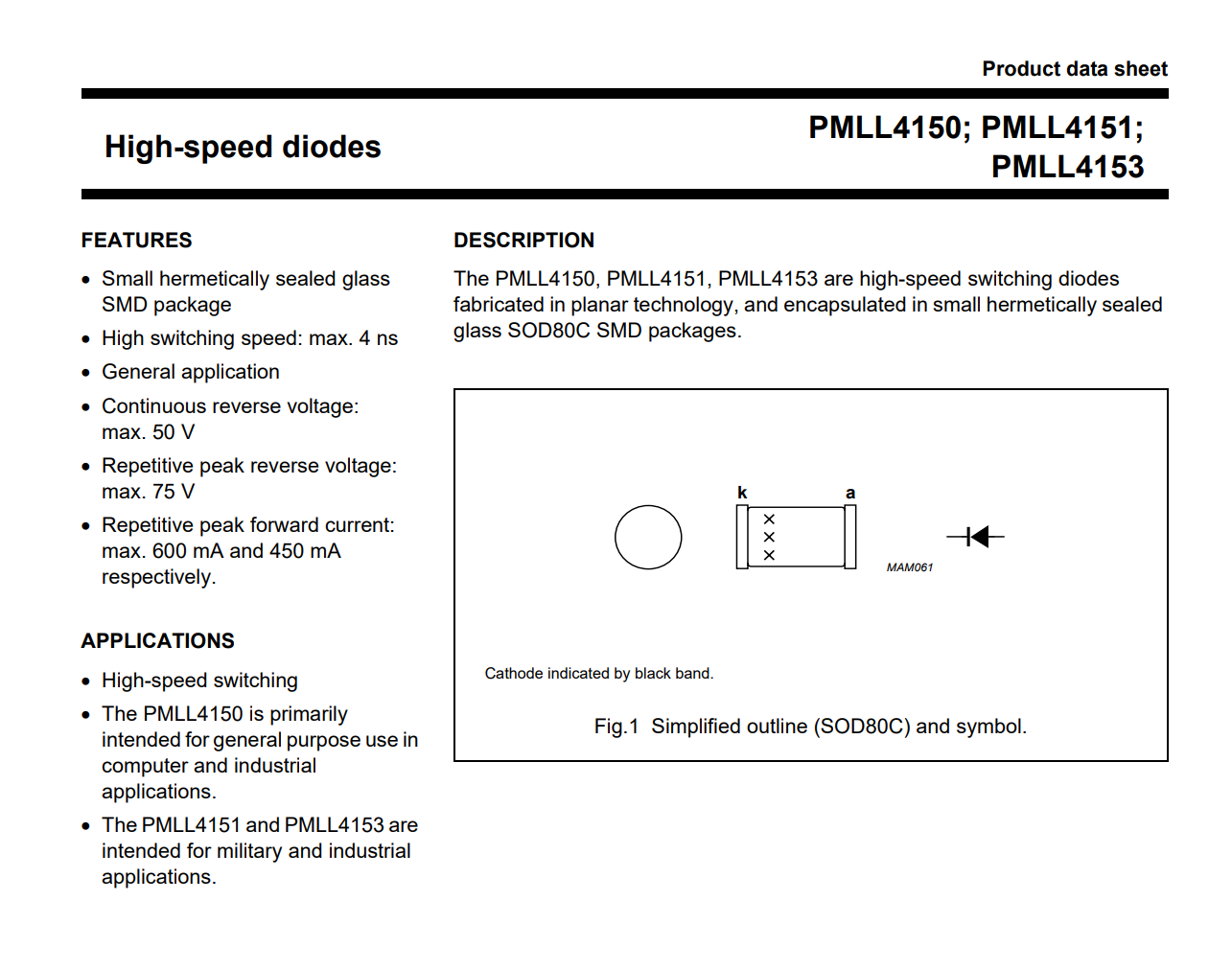

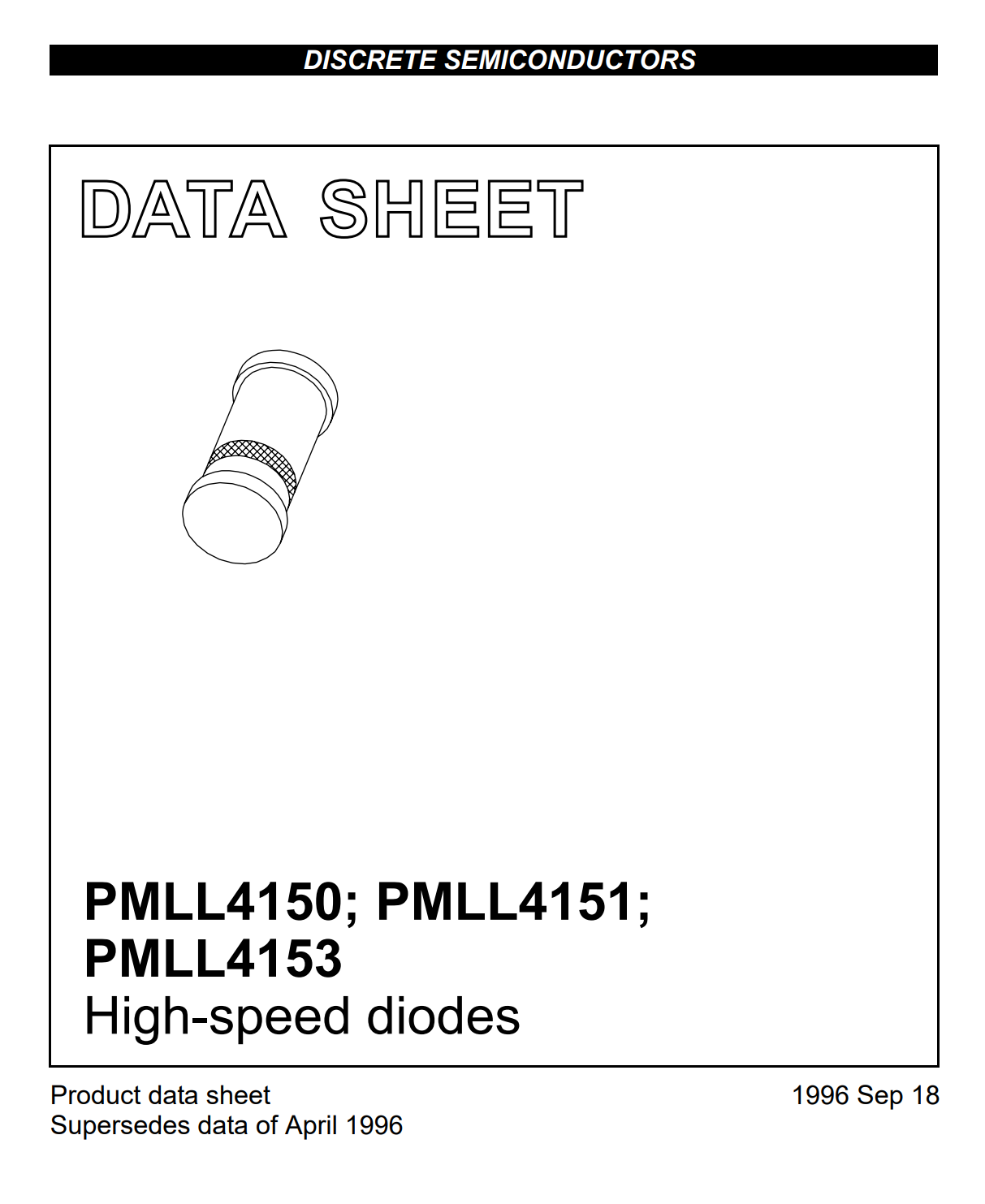

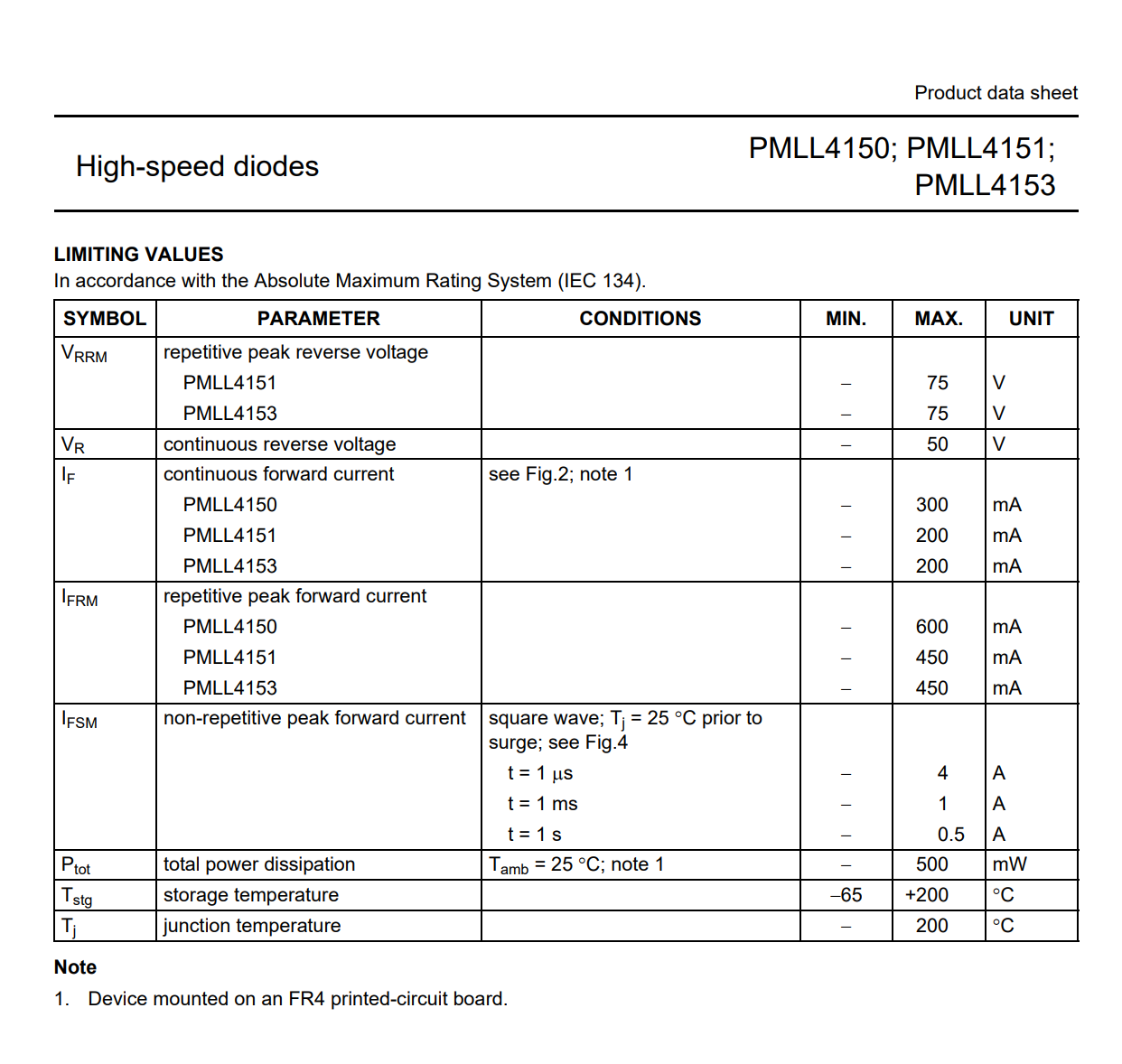

Product datasheet
For more information, please download
