Hot sale Original PTVS33VS1UR Diodes 400W UNIDIRECTIONAL SILICON TVS DIODE PLASTIC PACKAGE-2
Manufacturer Product Number
PTVS33VS1UR
Description
PTVS33VS1UR Diodes 400W UNIDIRECTIONAL SILICON TVS DIODE PLASTIC PACKAGE-2
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
General description 400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection. Features ■ Rated peak pulse power: PPPM = 400 W (350W for 3V3) ■ Small plastic package suitable for surface-mounted design ■ Reverse standoff voltage range: VRWM = 3.3 V to 64 V ■ Very low package height: 1 mm ■ Reverse current: IRM = 0.001 µA ■ AEC-Q101 qualified Applications ■ Power supply protection ■ Automotive application ■ Industrial application ■ Power management |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - PTVS33VS1UR |
| Rohs Code | Yes |
| Part Life Cycle Code | Transferred |
| Package Description | Plastic Package-2 |
| Pin Count | 2 |
| Breakdown Voltage-Max | 40.6 V |
| Breakdown Voltage-Min | 36.7 V |
| Configuration | Single |
| Diode Element Material | Silicon |
| Diode Type | Trans Voltage Suppressor Diode |
| Moisture Sensitivity Level | 1 |
| Non-rep Peak Rev Power Dis-Max | 400 W |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | Plastic/Epoxy |
| Package Shape | Rectangular |
| Package Style | Small Outline |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity | Unidirectional |
| Qualification Status | Not Qualified |
| Reference Standard | Aec-Q101; Iec-60134; Iec-61000-4-2; Iec-61643-321 |
| Rep Pk Reverse Voltage-Max | 33 V |
| Surface Mount | Yes |
| Technology | Avalanche |
| Terminal Finish | Tin (Sn) |
| Terminal Form | Flat |
| Terminal Position | Dual |
| Time@Peak Reflow Temperature-Max (s) | 30 |

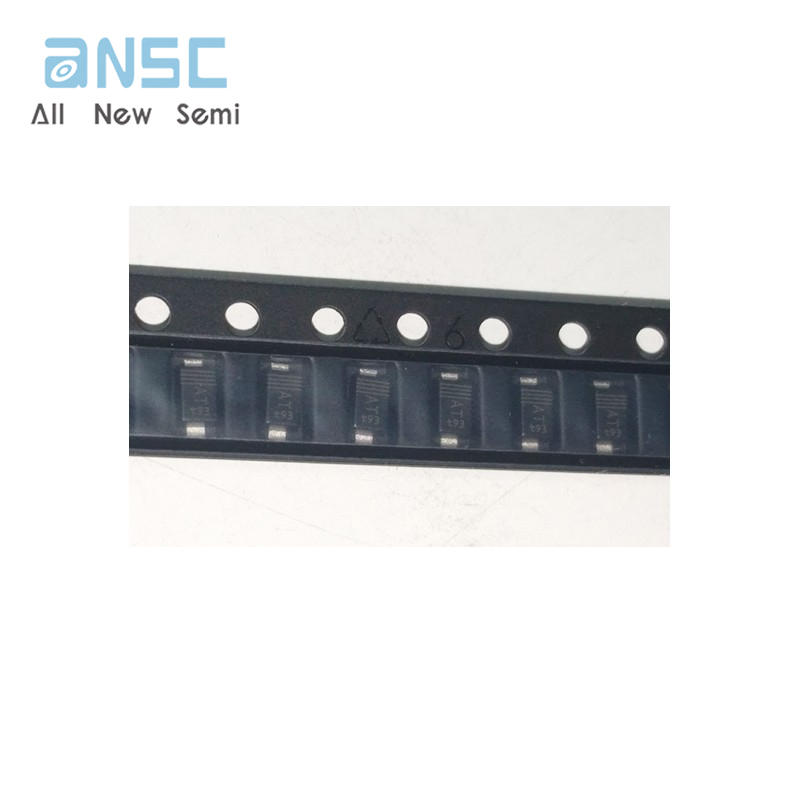

Actual image of the product

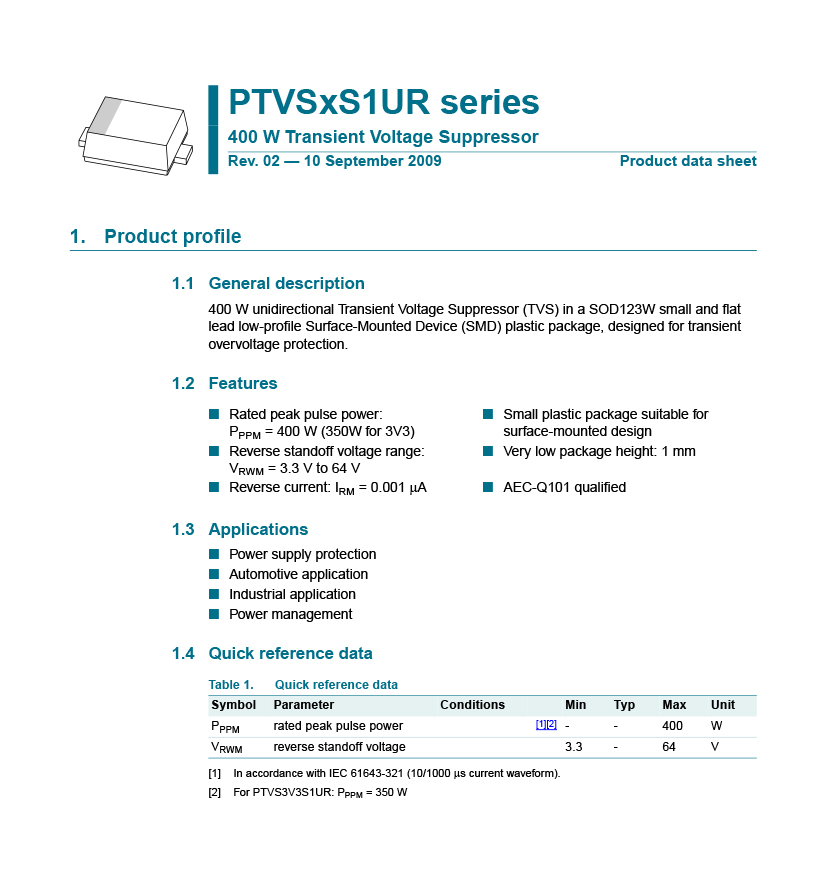

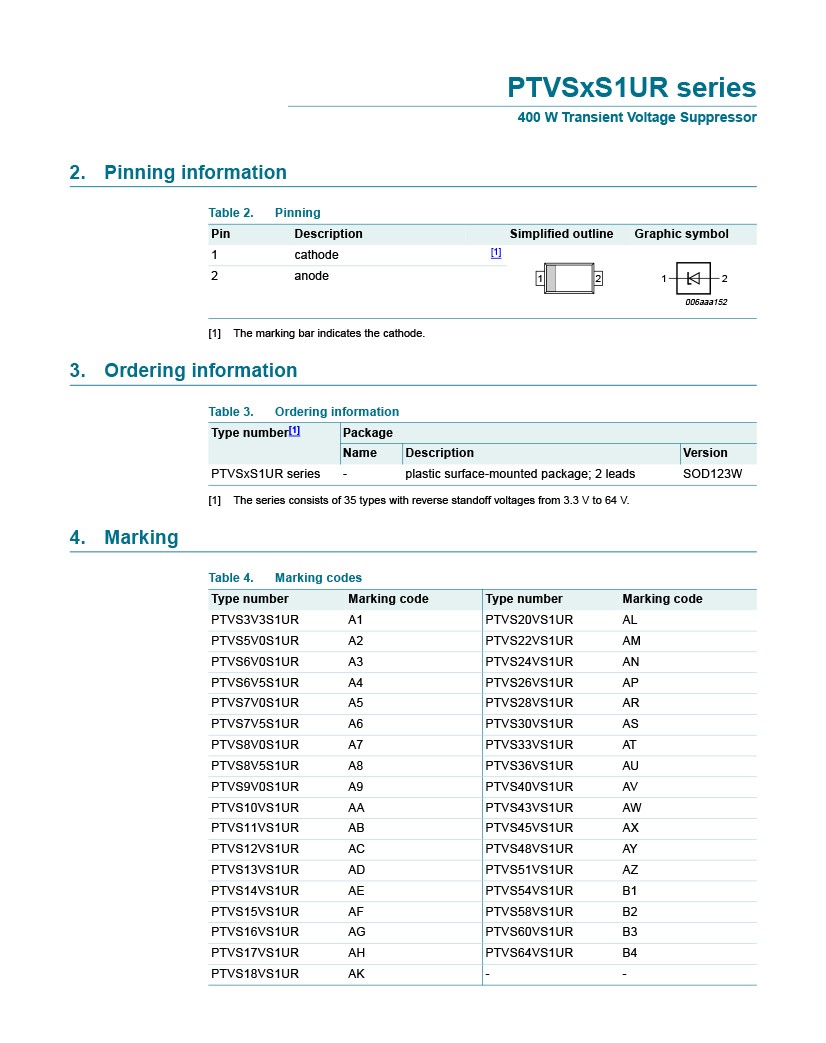

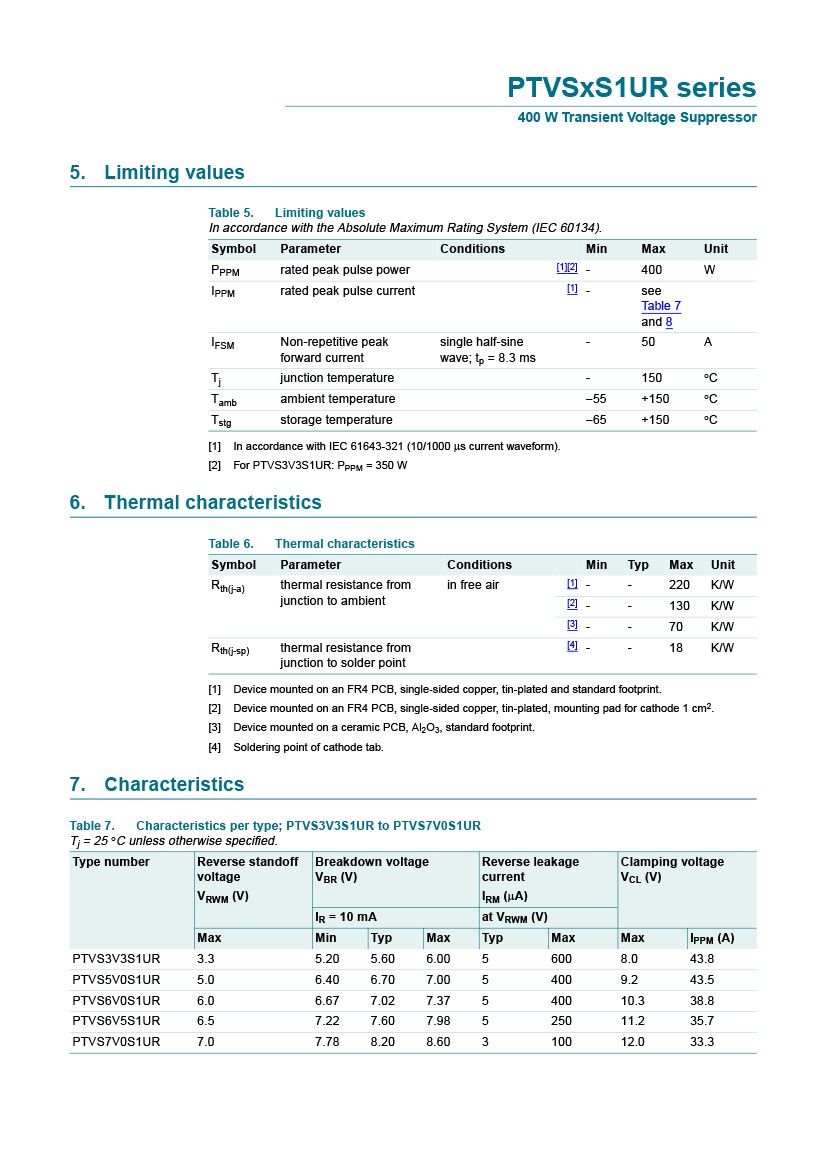

Product datasheet
