6.0 Amp Glass Passivated Bridge Rectifiers BOM distribution service electronic components KBL608G Professional supply Original
Manufacturer
Manufacturer Product Number
KBL608G
Description
KBL608G Bridge Rectifier Single Phase Standard 800 V Through Hole KBL
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The KBL608G is a high-performance single-phase bridge rectifier diode, designed to provide reliable and efficient rectification in a variety of applications. This 4-pin device is packaged in a 4-SIP (Single-In-Line Package) with a KBL case, ensuring compactness and ease of integration. The KBL608G operates within a wide temperature range of -55°C to 150°C, making it suitable for use in both low-temperature and high-temperature environments. Features High Current Handling: The KBL608G can handle a maximum output current of 6A, making it ideal for applications requiring high power rectification. Low Forward Voltage Drop: With a maximum forward voltage drop (Vf) of 1.1V at 6A, this diode minimizes power loss and heat generation. High Peak Reverse Voltage: The device can withstand a peak reverse voltage (Vrrm) of up to 800V, ensuring robustness against reverse polarity conditions. Low Reverse Leakage Current: The KBL608G features a maximum reverse leakage current of 5μA at 800V, reducing noise and improving overall system reliability. Pb-Free and RoHS Compliant: The product is Pb-free and RoHS compliant, adhering to environmental regulations and ensuring safe disposal. Applications Primary Applications Power Supplies: The KBL608G is well-suited for use in power supplies where high current rectification is required. Industrial Control Systems: Its ability to handle high surge currents makes it suitable for industrial control systems that require robust rectification. Automotive Systems: The device's wide operating temperature range and high reliability make it an excellent choice for automotive applications. Secondary Applications Telecommunications Equipment: The KBL608G can be used in telecommunications equipment where high current rectification is necessary. Medical Devices: Its low forward voltage drop and high reliability make it suitable for medical devices requiring efficient power management. |
Product Description
| Type# | Description |
| PART# | KBL608G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Bridge Rectifiers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 6 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 6 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, KBL |
| Supplier Device Package | KBL |
| Base Product Number | KBL608 |

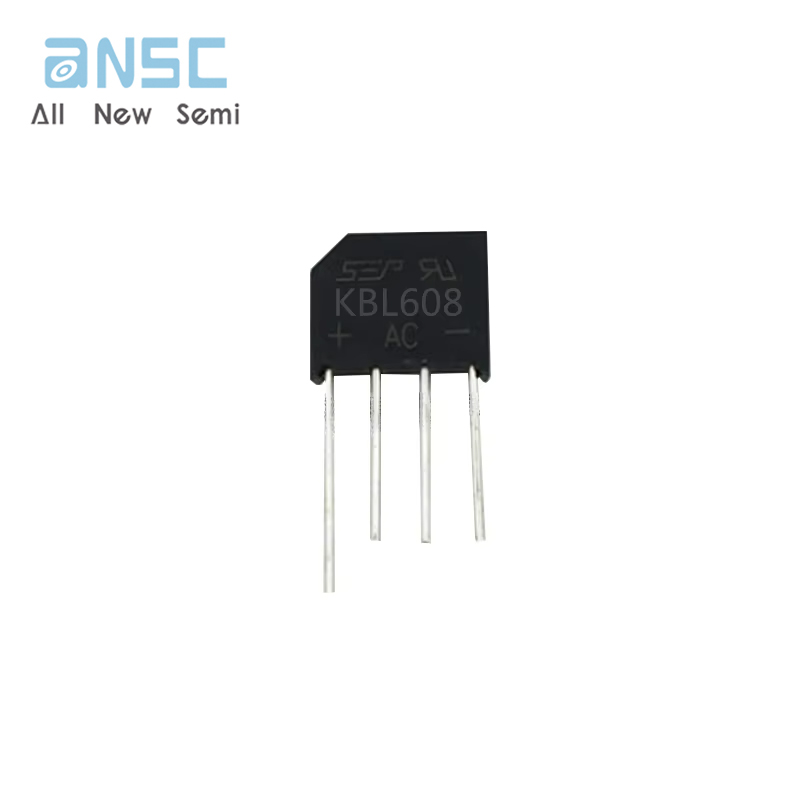

Actual image of the product
