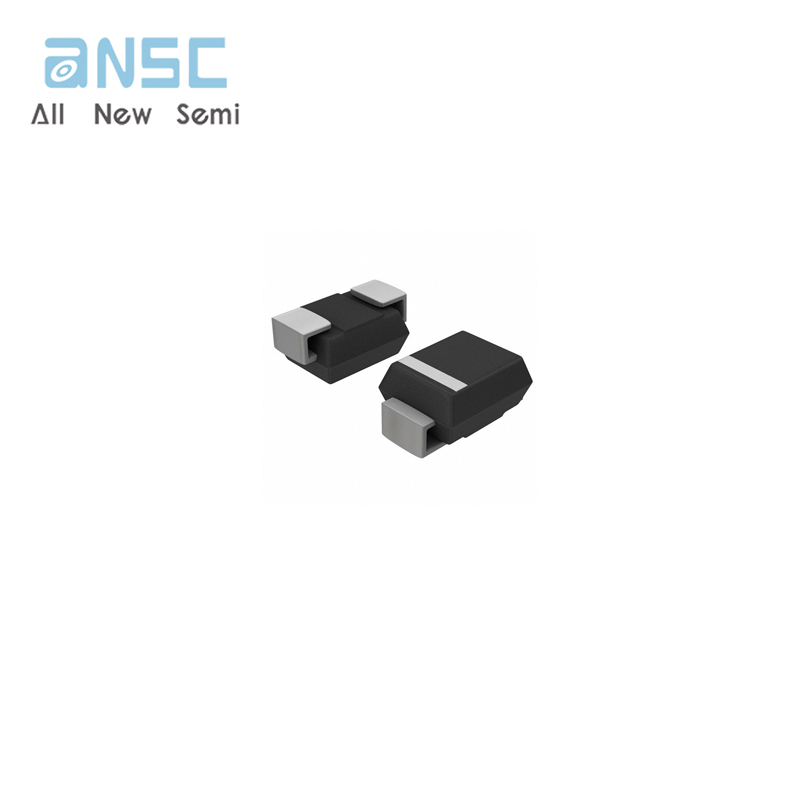

Hot sale Original NRVBA140T3G Rectifiers Single DIODE SCHOTTKY 40V 1A SMA Diode 40 V 1A Surface Mount SMA
Manufacturer Product Number
NRVBA140T3G
Description
Original NRVBA140T3G Rectifiers Single DIODE SCHOTTKY 40V 1A SMA Diode 40 V 1A Surface Mount SMA
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
For this device, the average rectified current is 1A volts.In this case, forward current can reach 1A.1A represents the maximum output current.Based on the data chart, the peak reverse is 500μA.
Product Features
an average rectified current of 1A volts
1A is the maximum value
the peak reverse is 500μA
Product Applications
NRVBA140T3G applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
| Type | Description |
| ANSC PART# | ANSC- NRVBA140T3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | NRVBA140 |
