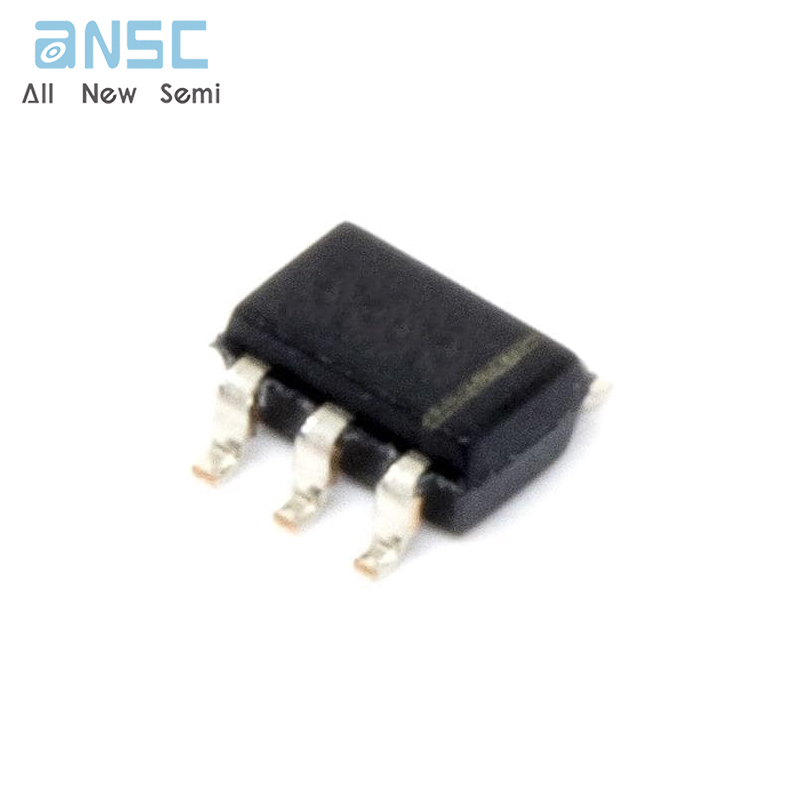

Hot-selling and scarce RCLAMP0504F.TCT Low Capacitance TVS Array SOT-363 spot stock

Product Descriptions

RailClamps^® are surge rated diode arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT(electrical fast transients).

The unique design incorporates surge rated, low capacitance steering diodes and a TVS diode in a single package.  During transient conditions, the steering diodes direct the transient to either the positive side of the power supply line or to ground.  The internal TVS diode prevents over-voltage on the power line, protecting any downstream components.

The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance construction minimizes voltage overshoot during high current surges.  This device is optimized for ESD protection of portable electronics. They may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).

Product Features

Transient protection for high-speed data lines to  IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT)40A (5/50ns)

Array of surge rated diodes with internal TVS Diode

Small package (2 .4 x 2.2mm) saves board space

Protects up to four I/O lines & power line

Low capacitance (<3pF) for high-speed interfaces

No insertion loss to 2.0GHz

Low leakage current and clamping voltage

Low operating voltage: 5.0V

Solid-state silicon-avalanche technology

Product Applications

USB 2.0

USB OTG

Monitors and Flat Panel Displays

Digital Visual Interface (DVI)

High-Definition Multimedia Interface (HDMI)

Gigabit Ethernet

SIM Ports

IEEE 1394 Firewire Ports

Product Specifications

Product Photos

For more product information, please download the PDF
