Hot sale Original 1N5406 DIODE STANDARD DO201AD Diode 600 V 3A Through Hole DO-201AD
Manufacturer Product Number
1N5406
Description
DIODE Standard Recovery Rectifier 600V 3.0 A DO-201AD
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
VOLTAGE RANGE 50 to 1000 Volts
CURRENT 3.0 Ampere
FEATURES
• Low forward voltage drop
• High current capability
• High reliability
• High surge current capability
Product Description
|
Type |
Description |
|---|---|
| PART# | 1N5406 |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Obsolete |
|
Technology |
Standard |
|
Voltage - DC Reverse (Vr) (Max) |
600 V |
|
Current - Average Rectified (Io) |
3A |
|
Voltage - Forward (Vf) (Max) @ If |
1.2 V @ 3 A |
|
Speed |
Standard Recovery >500ns, > 200mA (Io) |
|
Current - Reverse Leakage @ Vr |
5 µA @ 600 V |
|
Capacitance @ Vr, F |
30pF @ 4V, 1MHz |
|
Mounting Type |
Through Hole |
|
Package / Case |
DO-201AD, Axial |
|
Supplier Device Package |
DO-201AD |
|
Operating Temperature - Junction |
-55°C ~ 150°C |
|
Base Product Number |
1N5406 |

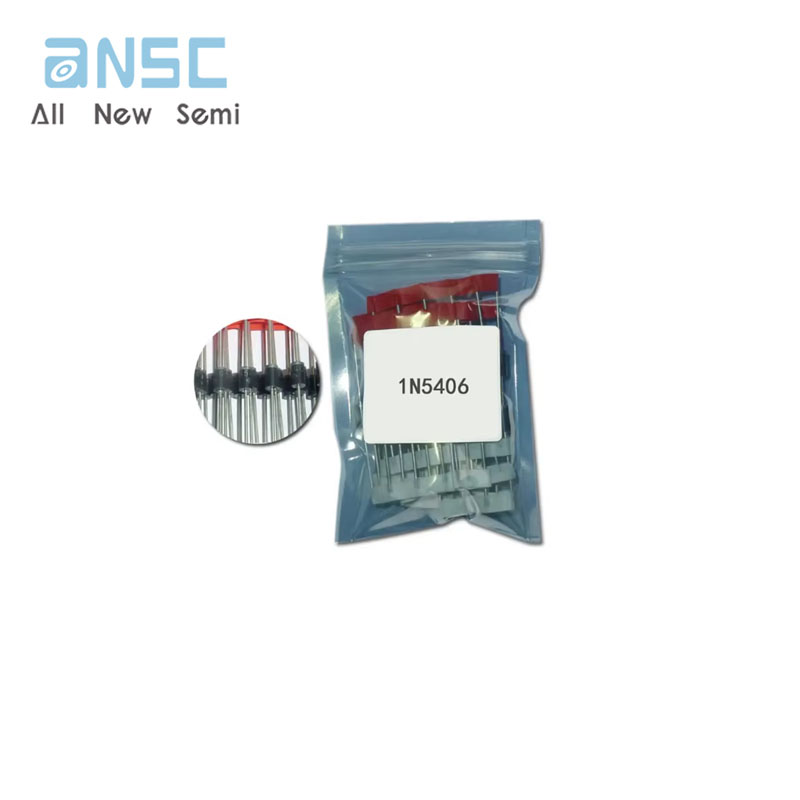

Actual image of the product
