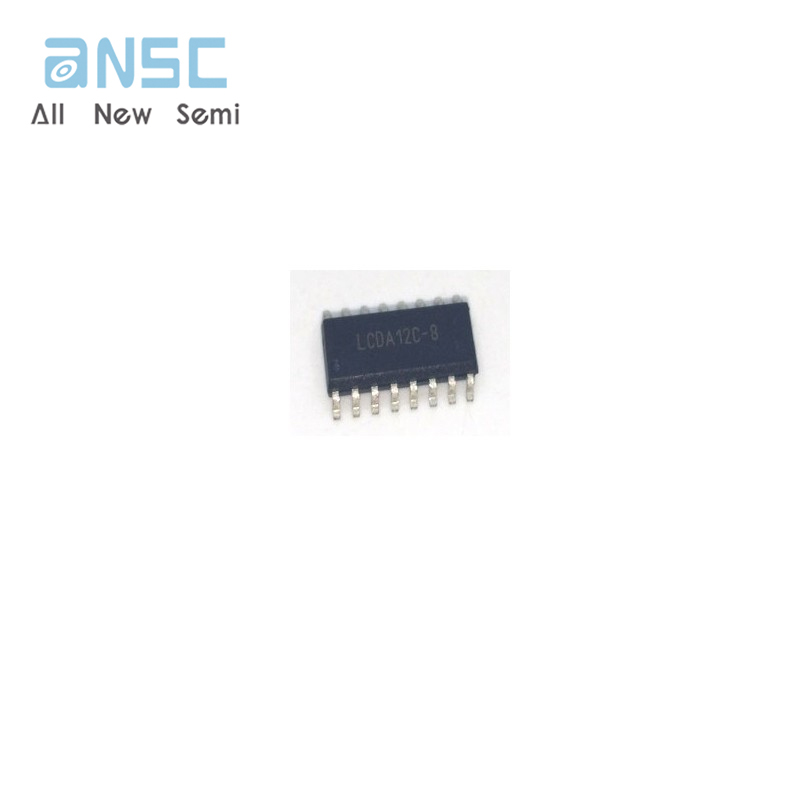

Hot sale Original LCDA12C-8 Trans Voltage Suppressor Diode 500W 12V V(RWM) Unidirectional 16 Element Silicon
Manufacturer Product Number
LCDA12C-8
Description
LCDA12C-8 Trans Voltage Suppressor Diode 500W 12V V(RWM) Unidirectional 16 Element Silicon MS-012AC SOP-16
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The LCDAxxC-8 has been specifically designed to protect sensitive components which are connected to data and transmission lines from over voltages caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The low capacitance array configuration of the LCDAxxC-8 allows the user to protect eight high-speed data or I/O lines. They may be used on systems operating from 5 to 15 Volts. The high surge capability (500W, tp=8/20µs) makes the LCDAxxC-8 suitable for telecommunications systems operating in harsh transient environments. The low inductance construction minimizes voltage overshoot during high current surges. Features ◆ Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 0.5kV, 12A (8/20µs) ◆ Protects eight I/O lines ◆ Low capacitance for high-speed interfaces ◆ High surge capability ◆ Low clamping voltage ◆ Solid-state silicon avalanche technology Applications ◆ Multi-Mode Transceiver Protection ◆ WAN Equipment: CSU/DSU Multiplexers Routers ISP Equipment Customer Premise Equipment ◆ Protection for any of the following interfaces: RS-232 (V.28) RS-422 (V.11, X.21) RS-449 (V.11/V.10) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-LCDA12C-8 |
| Ihs Manufacturer | Original |
| Part Package Code | SOIC |
| Package Description | R-PDSO-G16 |
| Pin Count | 16 |
| Additional Feature | LOW INDUCTANCE |
| Breakdown Voltage-Min | 13.3 V |
| Clamping Voltage-Max | 26.6 V |
| Configuration | COMPLEX |
| Diode Element Material | SILICON |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Non-rep Peak Rev Power Dis-Max | 500 W |
| Number of Elements | 16 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Polarity | UNIDIRECTIONAL |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 12 V |
| Surface Mount | YES |
| Technology | AVALANCHE |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
Actual image of the product
