Hot sale Original 1.5KE18CA TVS Diode Zener 2 Channels 15.3V 1500W (1.5kW) General Purpose Through Hole

Product Details

1500 Watt Mosorb™ Zener Transient Voltage Suppressors

Bidirectional*

Mosorb devices are designed to protect voltage sensitive components from high voltage, high–energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. These devices are exclusive, cost-effective, highly reliable Surmetic axial leaded package and are ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/ consumer applications, to protect CMOS, MOS and Bipolar integrated circuits.

Specification Features:

• Working Peak Reverse Voltage Range – 5.8 V to 214 V
• Peak Power – 1500 Watts @ 1 ms
• ESD Rating of Class 3 (>16 KV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 µA above 10 V
• UL 497B for Isolated Loop Circuit Protection
• Response Time is typically < 1 ns

Product Description

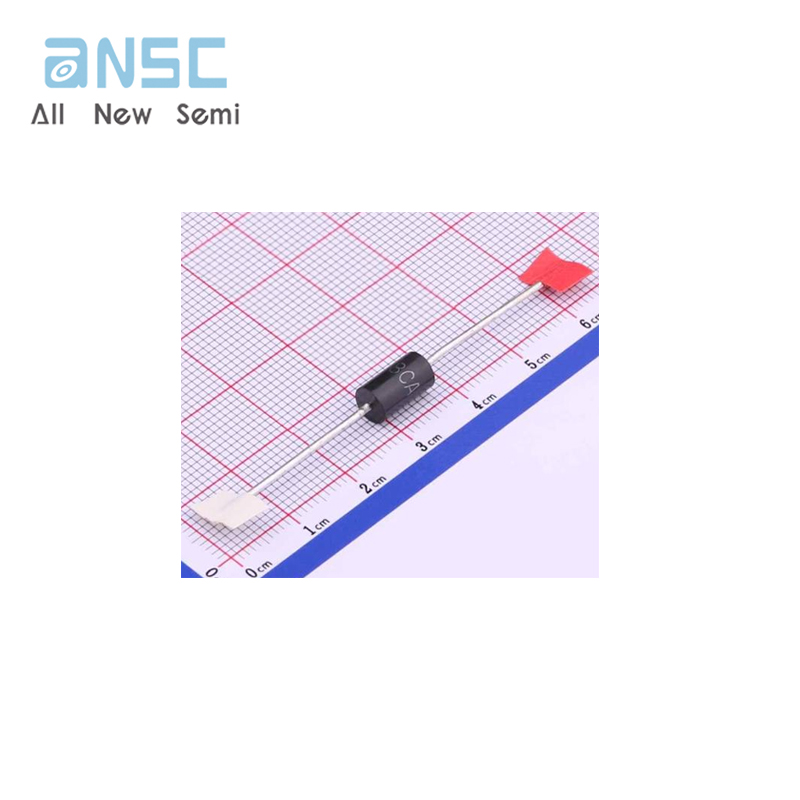

Actual image of the product

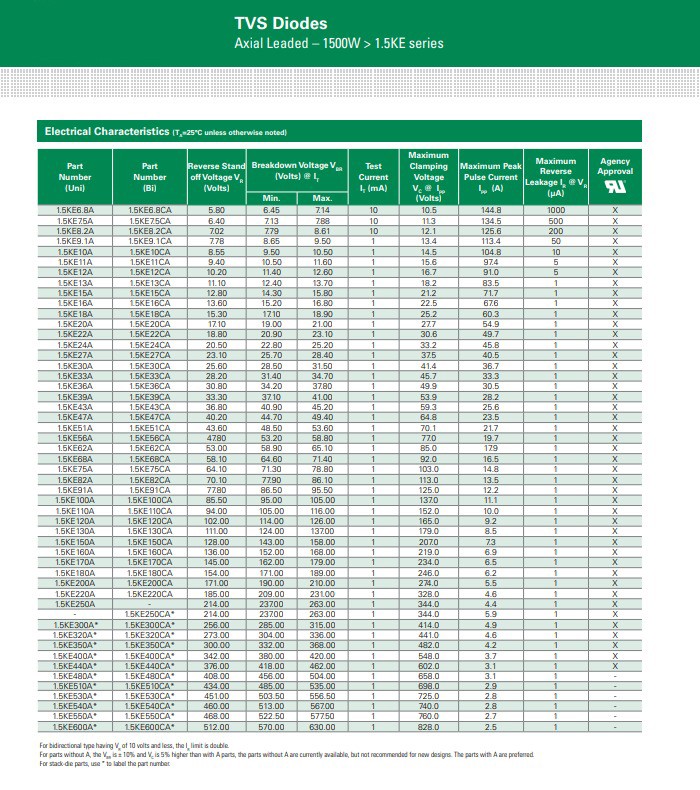

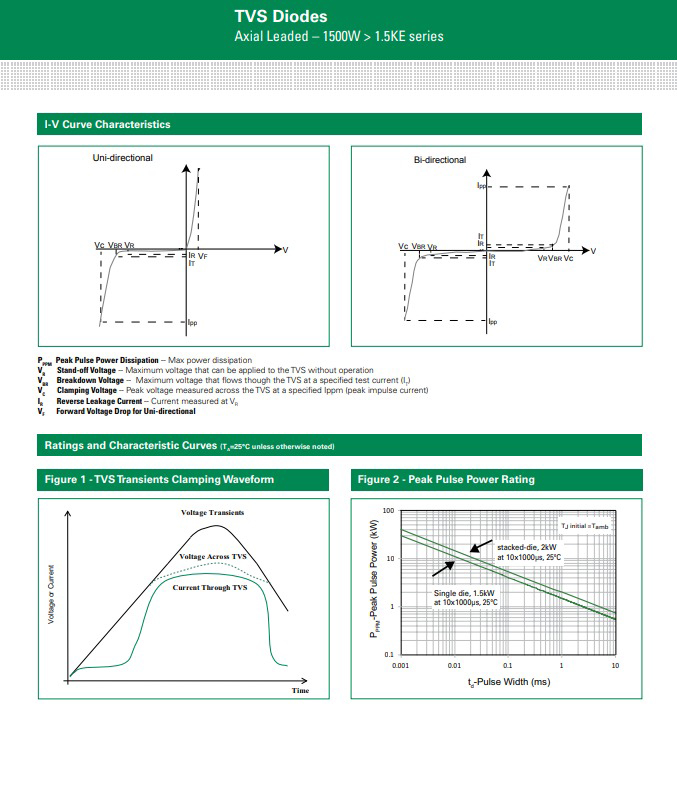

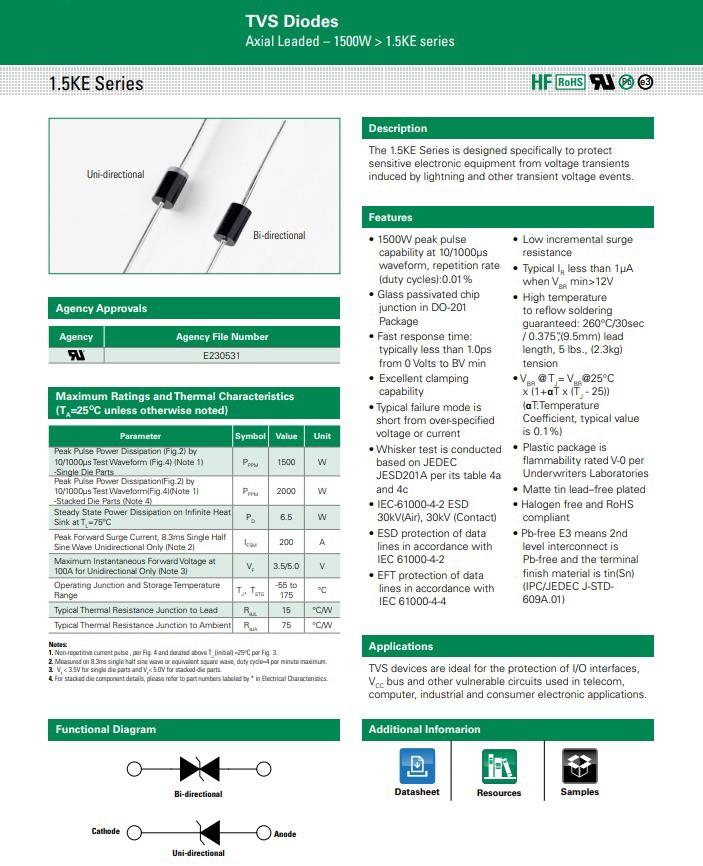

Product datasheet

For more information, please download
