BOM distribution service electronic components ULTRA FAST RECOVERY RECTIFIERS Diodes UFS120JE3/TR13 Professional supply Original

Product Details

Brief Description: The UFS120JE3/TR13 is a surface-mount, fast-recovery diode. It is a single-element, silicon-based rectifier with a maximum forward voltage of 950mV and a maximum forward current of 1A.

Features:

• Fast-recovery diode with a reverse recovery time of 30ns

• Maximum forward voltage of 950mV

• Maximum forward current of 1A

• Peak non-repetitive surge current of 35A

• Peak reverse current of 5μA

• Operating temperature range of -55°C to 175°C

• Radiation-hardening not specified

• Lead-free and RoHS compliant

Application Grade: The UFS120JE3/TR13 is designed for general-purpose applications, including power supplies, motor control, and other applications where a fast-recovery diode is required.

Applications:

• Power supplies

• Motor control

• Switching power supplies

• DC-DC converters

• Other applications where a fast-recovery diode is required

Key Information:

• Average rectified current: 1A

• Reverse leakage current: 5μA at 200V

• Forward voltage: 950mV

• Forward current: 1A

• Peak non-repetitive surge current: 35A

• Peak reverse current: 5μA

• Operating temperature range: -55°C to 175°C

• Package: DO-214BA (Surface Mount)

• Packaging: Tape & Reel (TR)

• ECCN code: EAR99

• HTS code: 8541.10.00.80

• MSL: 1 (Unlimited)

Overall, the UFS120JE3/TR13 is a reliable and efficient fast-recovery diode suitable for a wide range of applications. Its fast-recovery time and high current capability make it an excellent choice for power supplies and other high-current applications.

Product Description

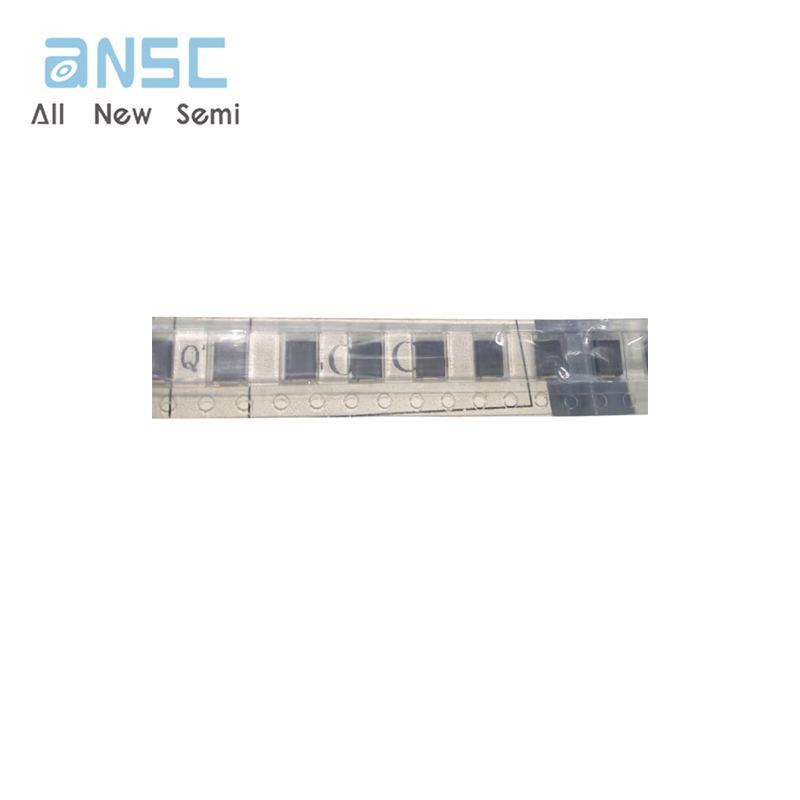

Actual image of the product

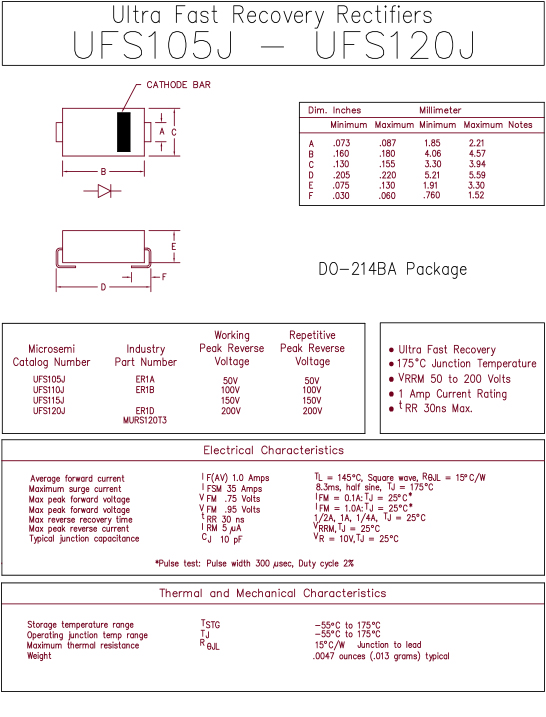

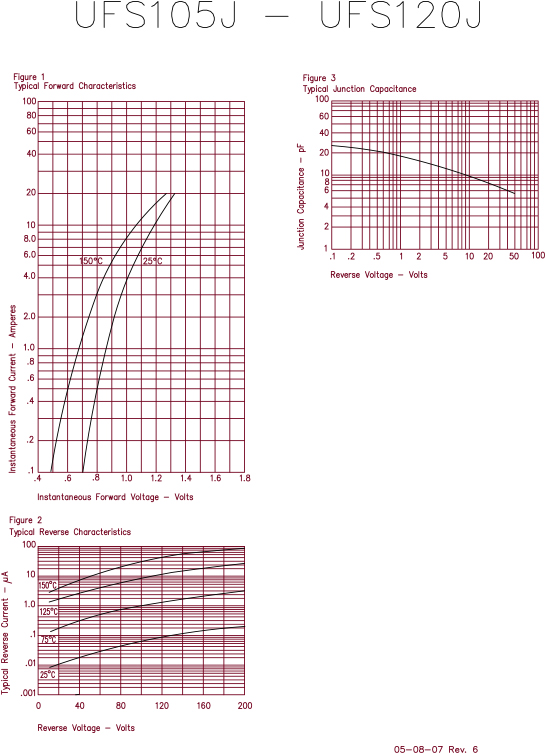

Product datasheet

For more information, please download
