Hot-selling and scarce BAV99 High-speed double diode SOT23 spot stock
Manufacturer Product Number
BAV99
Description
BAV99 High-speed double diode SOT23 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The BAV99 consists of two high-speed switching diodes connected in series, fabricated in planar technology, and encapsulated in the small SOT23 plastic SMD package.
Product Features
• Small plastic SMD package
• High switching speed: max. 4 ns
• Continuous reverse voltage:max. 75 V
• Repetitive peak reverse voltage: max. 85 V
• Repetitive peak forward current: max. 450 mA.
Product Applications
• High-speed switching in thick and thin-film circuits.
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BAV99 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Diode Configuration | 1 Pair Series Connection |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) (per Diode) | 215mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 (TO-236) |
| Base Product Number | BAV99 |

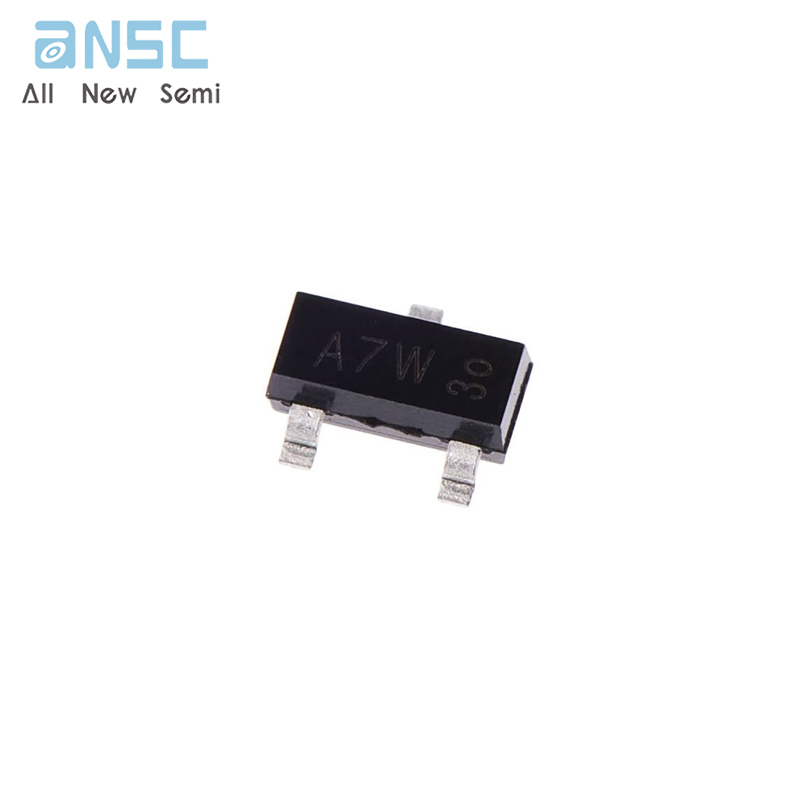

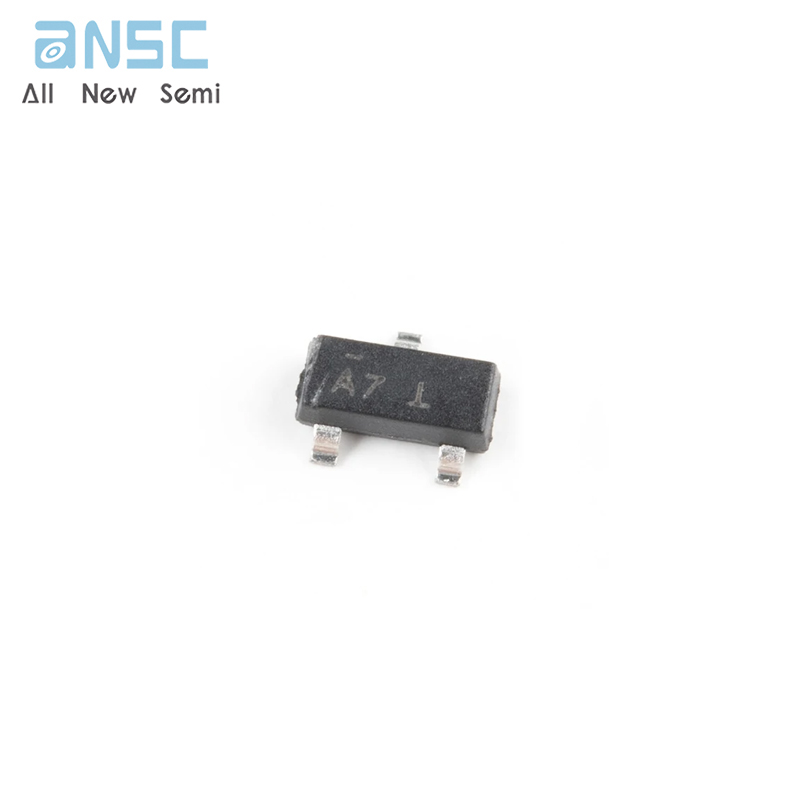

Product Photos
For more product information, please download the PDF
