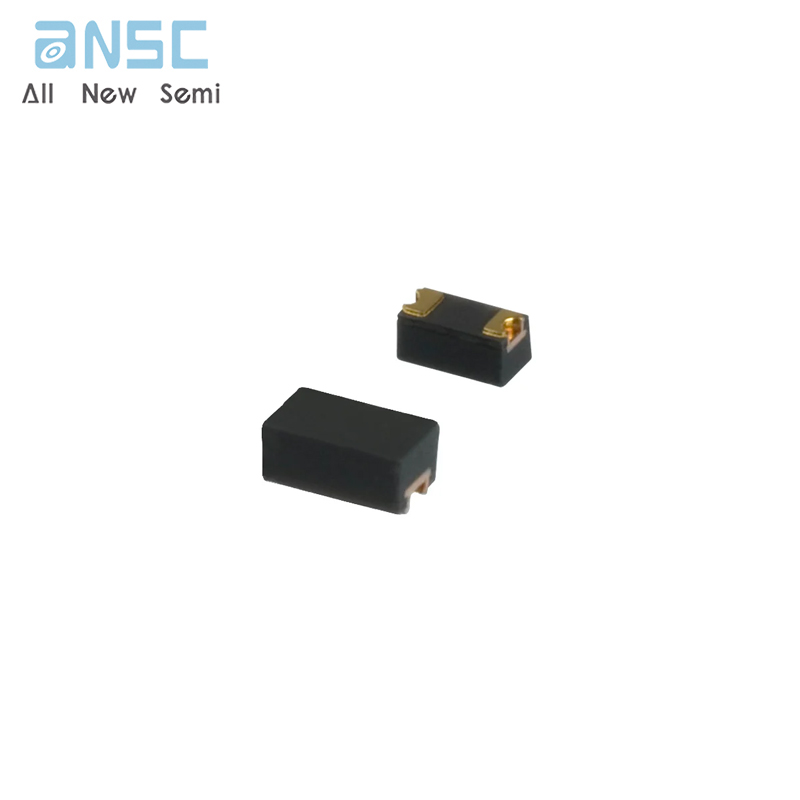

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MM5Z5V6T1G Zener Voltage Regulators SOD-523 spot stock
Manufacturer Product Number
MM5Z5V6T1G
Description
MM5Z5V6T1G Zener Voltage Regulators SOD-523 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This series of Zener diodes is packaged in a SOD-523 surface mountpackage . They are designed to provide voltage regulation protectionand are especially attractive in situations where space is at a premium .They are well suited for applications such as cellular phones, handheld portables, and high density PC boards .
Product Features
• Standard Zener Breakdown Voltage Range − 2.4 V to 75 V
• Standard Tolerance Series
• Steady State Power Rating of 500 mW
• Small Body Outline Dimensions:
0.047″x 0.032″ (1 .20 mm x 0.80 mm)
Low Body Height: 0.028″ (0 .7 mm)
• ESD Rating of Class 3 (> 16 kV)per Human Body Model
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
• These Devices are Pb-Free and are RoHS Compliant*
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MM5Z5V6T1G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Tolerance | ±7.1% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 40 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Base Product Number | MM5Z5 |
Product Photos
For more product information, please download the PDF
