Hot-selling and scarce MBR20200CTG Switch‐mode Power Rectifier TO-220 spot stock
Manufacturer Product Number
MBR20200CTG
Description
MBR20200CTG Switch‐mode Power Rectifier TO-220 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Low Forward Voltage
Low Power Loss/High Efficiency
High Surge Capacity
175C Operating Junction Temperature
20 A Total (10 A Per Diode Leg)
This is a Pb-Free Device*
Product Applications
Power Supply −Output Rectification
Power Management
Instrumentation
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MBR20200CTG |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | - |
| Series | SWITCHMODE™ |
| Packaging | Tube |
| Part Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 mA @ 200 V |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | MBR20200 |

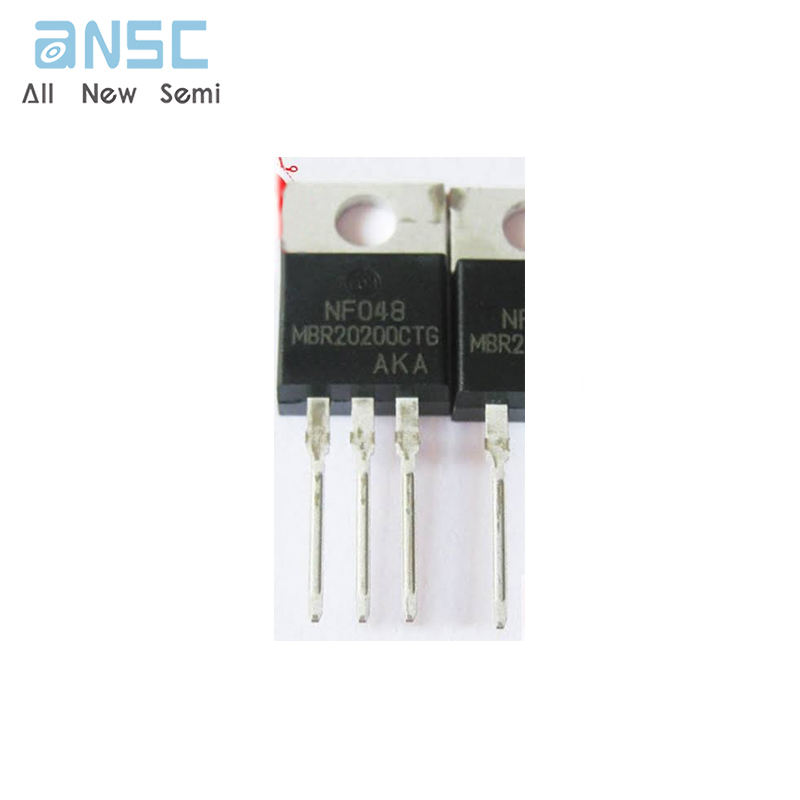

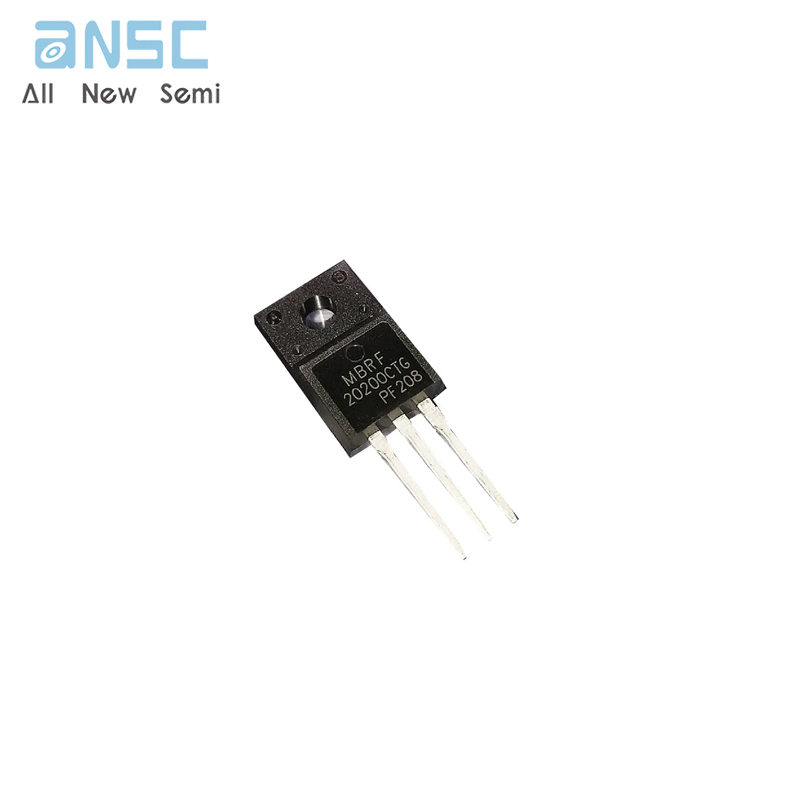

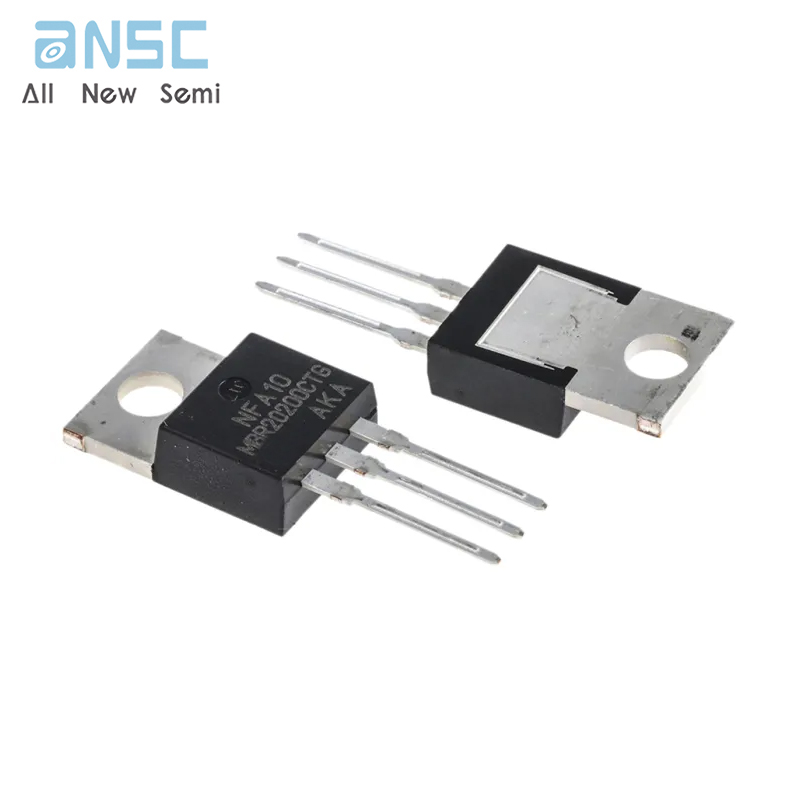

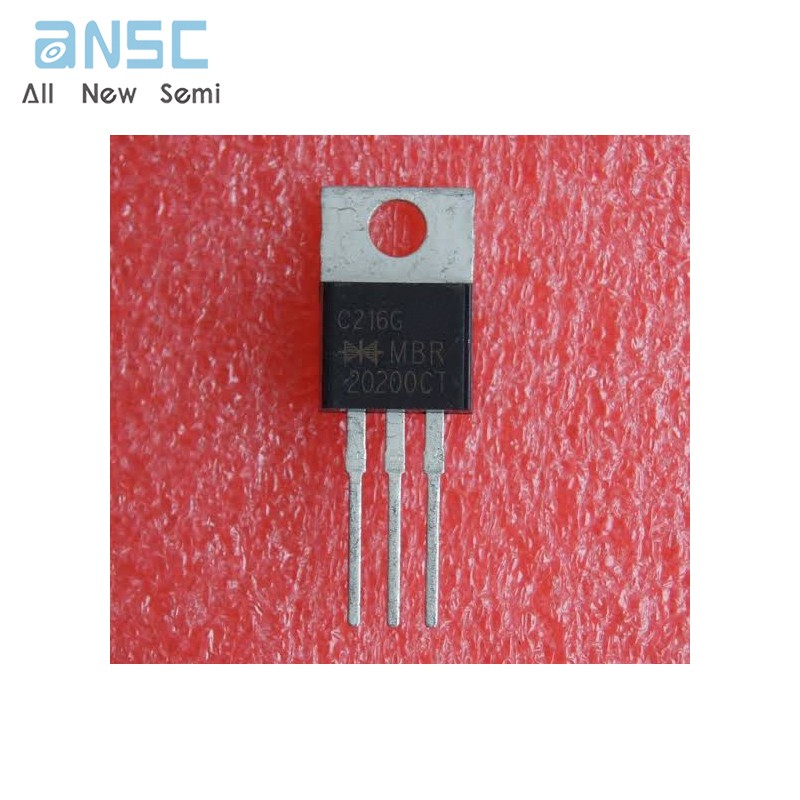

Product Photo
For more product information, please download the PDF
