Hot-selling and scarce 1N4148WS SURFACE MOUNT SWITCHING DIODES SOD23 spot stock
Manufacturer Product Number
1N4148WS
Description
1N4148WS SURFACE MOUNT SWITCHING DIODES SOD23 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Case: SOD-323, plastic
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Approx. Weight: 0.00014 ounces, 0.0041 grams
Product Features
Fast switching speed.
Surface mount package Ideally Suited for Automatic insertion
Electrically Identical to Standard JEDEC
High Conductance
Lead free in compliance with EU RoHS 2.0
Green molding compound as per IEC 61249 standard
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-1N4148WS |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-90, SOD-323F |
| Supplier Device Package | SOD-323F |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | 1N4148 |

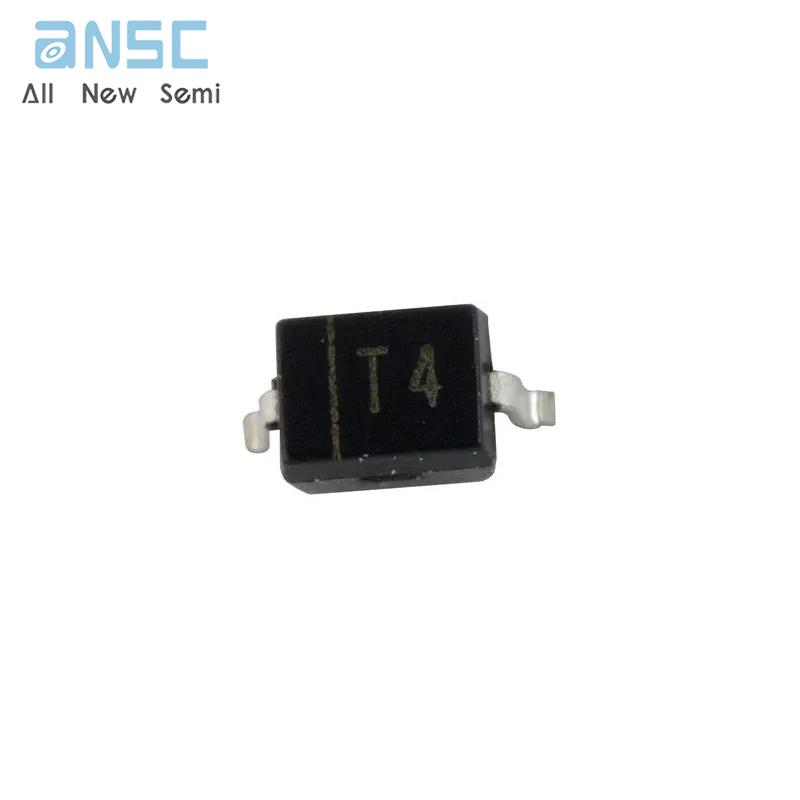

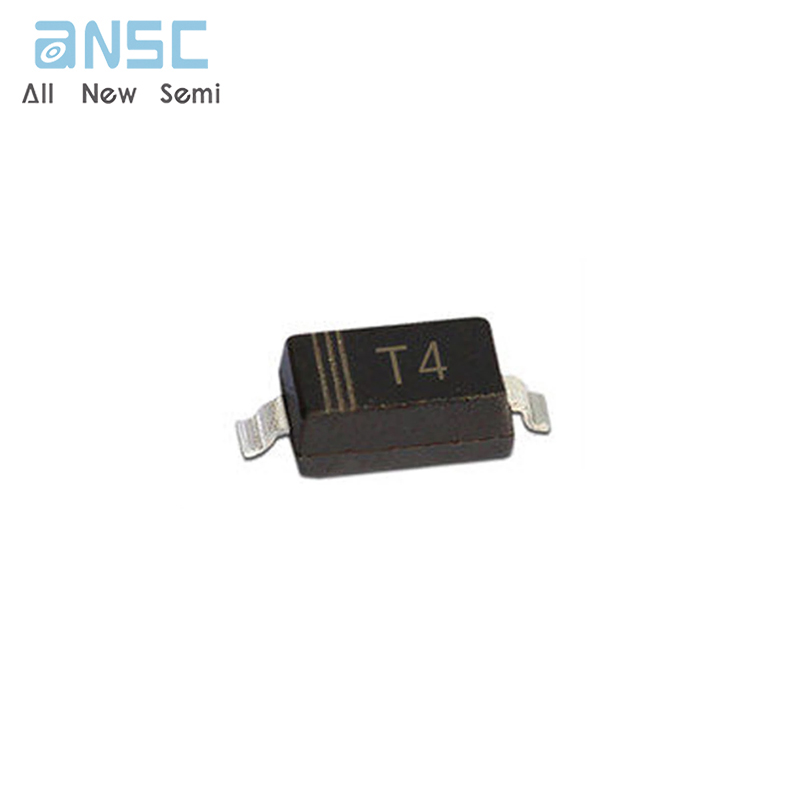

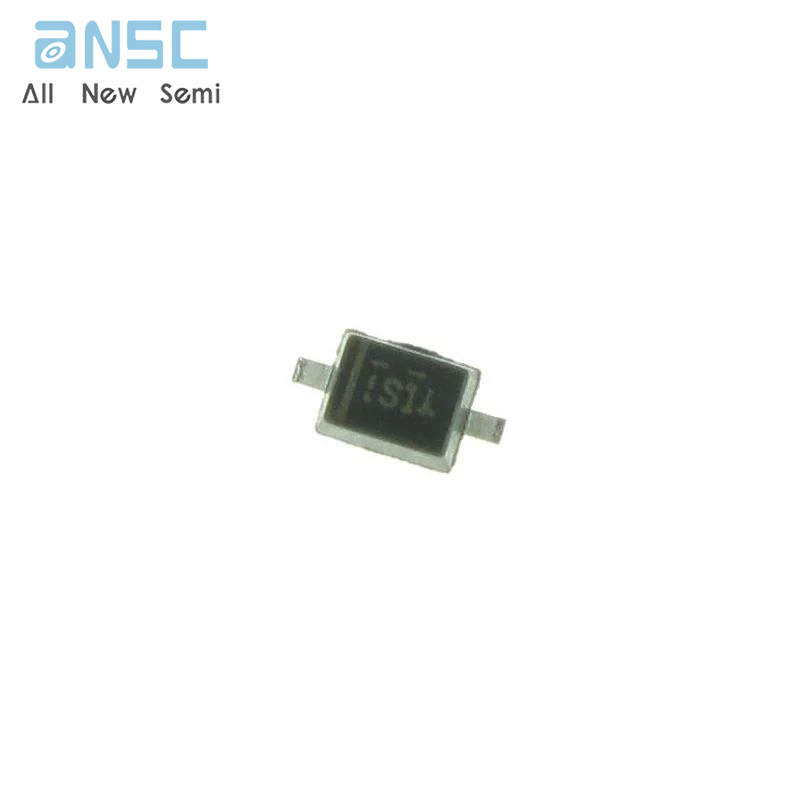

Product Photos
For more product information, please download the PDF
