Hot sale original PMLL4448 Rectifier Diodes 0.2A 100V SILICON SIGNAL DIODE HERMETIC SEALED GLASS PACKAGE-2
Manufacturer Product Number
PMLL4448
Description
PMLL4448 Rectifier Diodes 0.2A 100V SILICON SIGNAL DIODE HERMETIC SEALED GLASS PACKAGE-2
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The PMLL4148L and PMLL4448 are high-speed switching diodes fabricated in planar technology, and encapsulated in small hermetically sealed glass SOD80C SMD packages. PMLL4148L was formerly named PMLL4148 and has no difference to this type in technical specification, processing, packing or labelling. FEATURES • Small hermetically sealed glass SMD package • High switching speed: max. 4 ns • Continuous reverse voltage: max. 75 V • Repetitive peak reverse voltage: max. 100 V • Repetitive peak forward current: max. 450 mA. APPLICATIONS • High-speed switching • Fast logic applications. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-PMLL4448 |
| Manufacturer | / |
| Package Description | HERMETIC SEALED, GLASS PACKAGE-2 |
| Pin Count | 2 |
| Samacsys Manufacturer | / |
| Additional Feature | HIGH SPEED SWITCH |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1 V |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 2 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 200 °C |
| Output Current-Max | 0.2 A |
| Package Body Material | GLASS |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | 260 |
| Power Dissipation-Max | 0.5 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 100 V |
| Reverse Current-Max | 0.025 µA |
| Reverse Recovery Time-Max | 0.004 µs |
| Surface Mount | YES |
| Terminal Finish | Tin (Sn) |
| Terminal Form | WRAP AROUND |
| Terminal Position | END |
| Time@Peak Reflow Temperature-Max (s) | 30 |

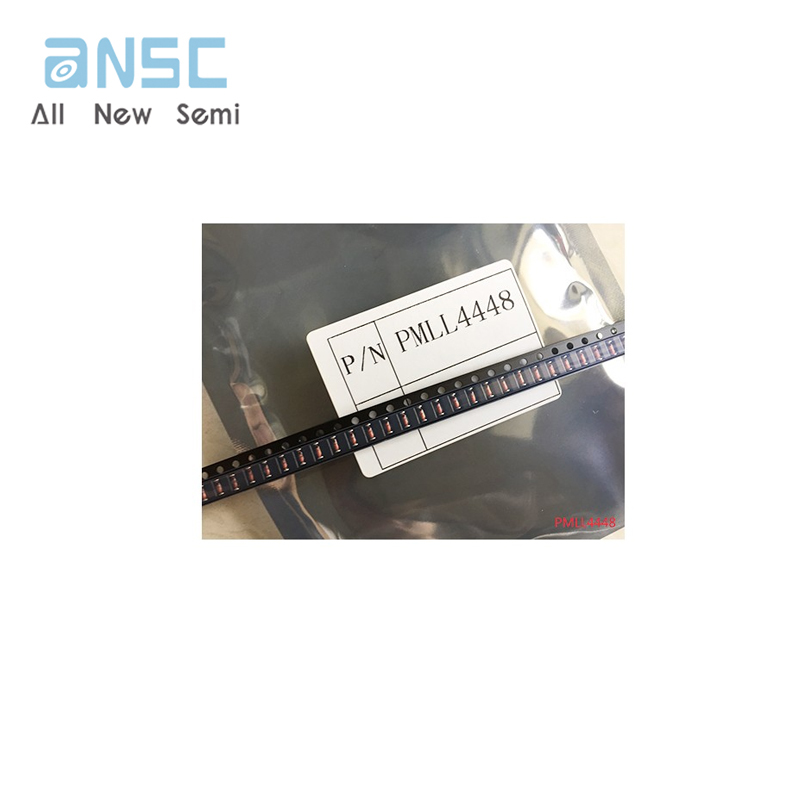

Actual image of the product

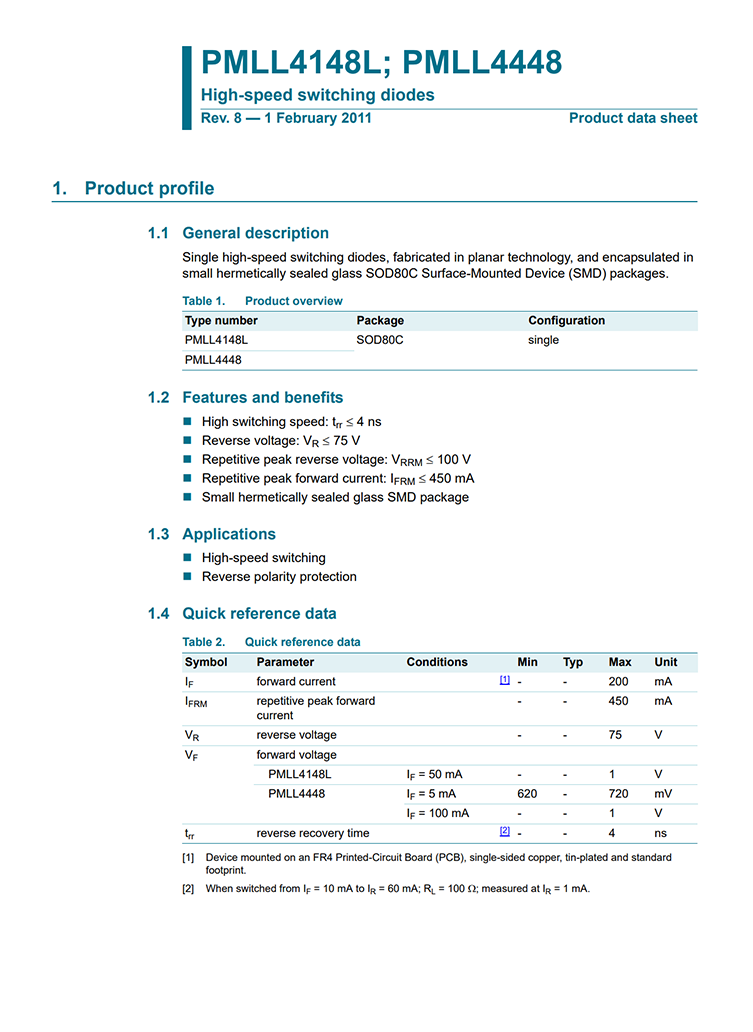

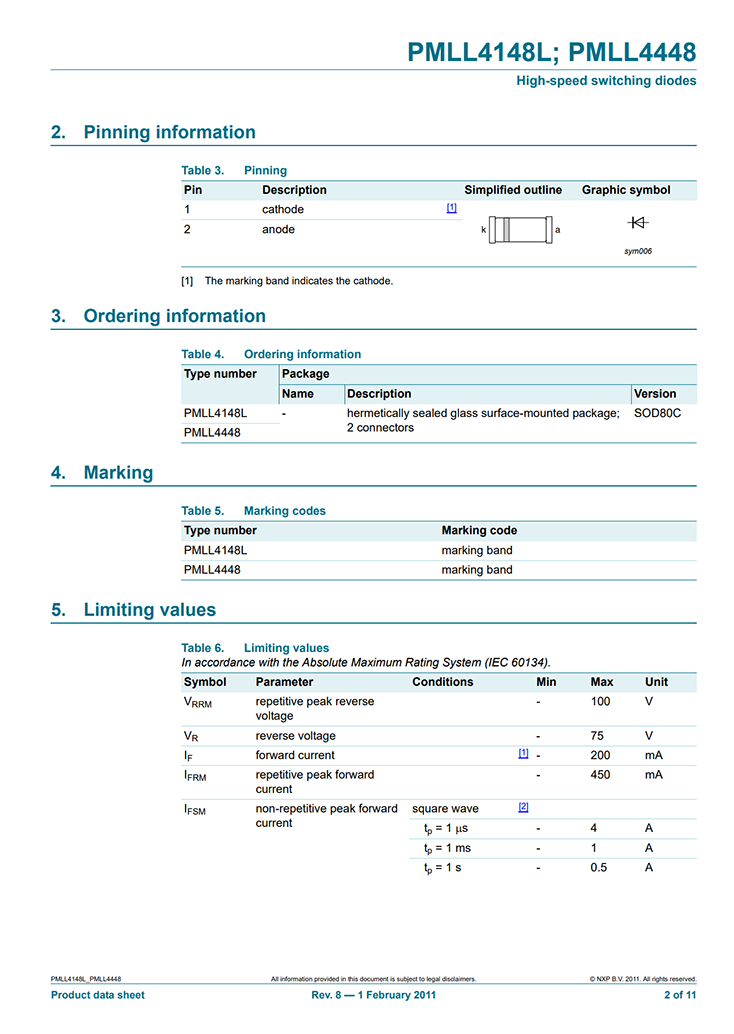

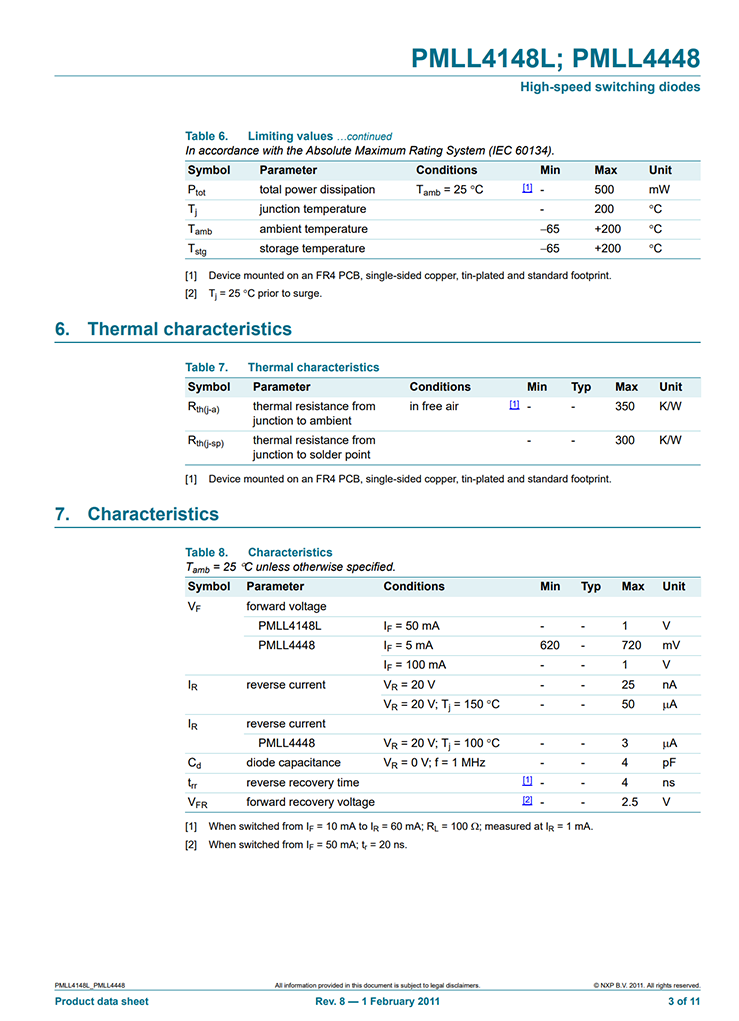

Product datasheet
For more information, please download
