Hot-selling and scarce DB104S SINGLE-PHASEGLASS PASSIVATED SILICON BRIDGE RECTIFIERS SOP4 spot stock
Manufacturer Product Number
DB104S
Description
DB104S SINGLE-PHASEGLASS PASSIVATED SILICON BRIDGE RECTIFIERS SOP4 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
● Glass passivated die construction
● Low forward voltage drop
● High current capability
● High surge current capability
● Designed for surface mount application
● Plastic material-UL flammability 94V-0
● This is a Pb −Free Device
● All SMC parts are traceable to the wafer lot
● Additional testing can be offered upon request
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DB104S |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Bridge Rectifiers | |
| Manufacturer | - |
| Series | DBS |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 41 mA |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | DBS |

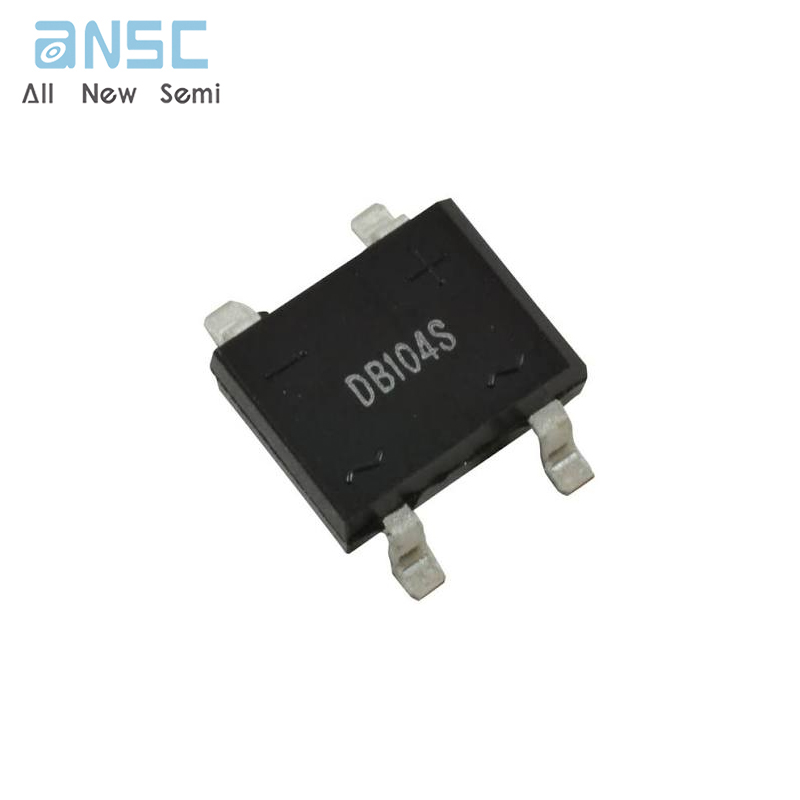

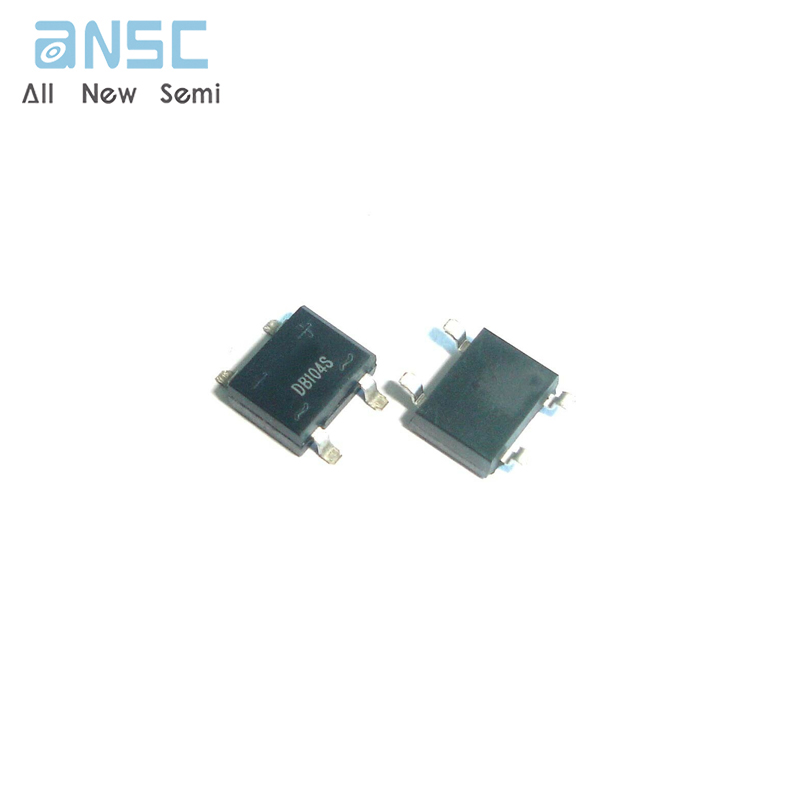

Product Photos
For more product information, please download the PDF
Other Products In The same category:
DB104S SINGLE-PHASEGLASS PASSIVATED SILICON BRIDGE RECTIFIERS SOP4 spot stock
280In stock:
Can ship immediately
