Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original SMBYW02-200 Diodes Rectifiers Single Diodes Standard 200V 2A Surface Mount DO-214AA, SMB 10 µA @ 200 V
Manufacturer Product Number
SMBYW02-200
Description
Original SMBYW02-200 Diodes Rectifiers Single Diodes Standard 200V 2A Surface Mount DO-214AA, SMB 10 µA @ 200 V
Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
An acceptable reverse voltage would be 200V.As a result, this device has a rectified current of 2A volts on average.Phase diode rectifier is permissible for forward current to reach 2A.Fuse elements have an indefinite life expectancy of 2A, which is the maximum current that the fuse can carry for an indefinite period of time.There is no maximum value for 50A surge current.Using the output current as an example, 2A is the maximum value.Based on the data charts in the datasheets, the peak reverse is 10μA.
Product Features
an average rectified current of 2A volts
a current rating of 2A
2A is the maximum value
the peak reverse is 10μA
Product Applications
SMBYW02-200 applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
| Type | Description |
| ANSC PART# | ANSC - SMBYW02-200 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 6 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | SMBYW |

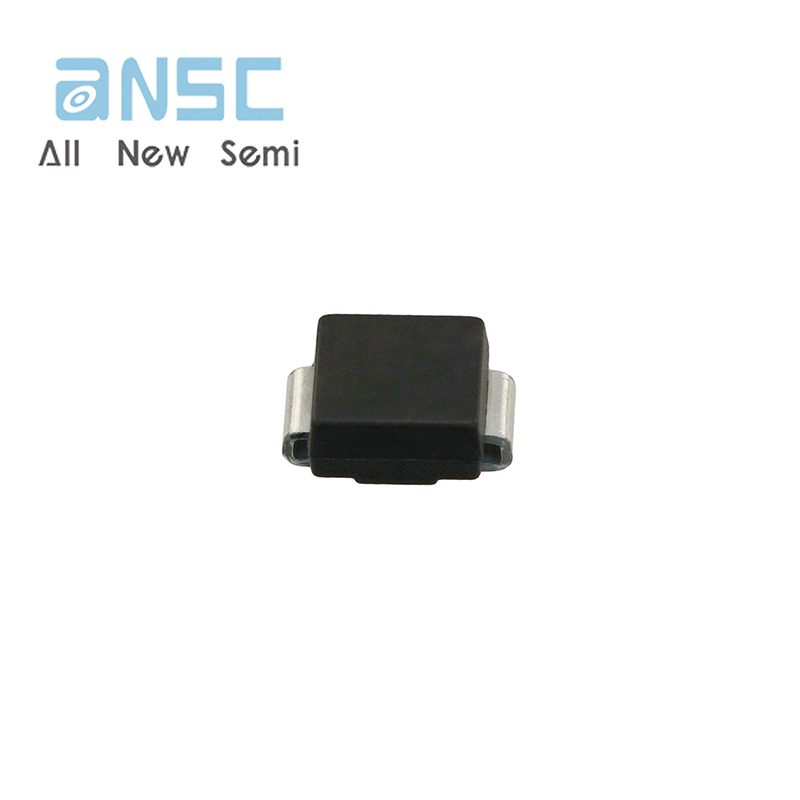

Actual image of the product
