Hot-selling and scarce SMDJ70CA 113V Clamp 26.5A Ipp Tvs Diode Surface Mount DO-214AB spot stock
Manufacturer Product Number
SMDJ70CA
Description
SMDJ70CA 113V Clamp 26.5A Ipp Tvs Diode Surface Mount DO-214AB spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Product Features
• 3000 W PPPM capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
• For surface mounted applications in order to optimize board space
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c pass class 1 and 2
• Glass passivated chip junction
• IEC-61000-4-2 ESD 30kV(Air),30kV (Contact)
• Low dynamic resistance
• VBR @TJ =VBR@25°C x (1+αTx (TJ - 25))(αT:Temperature Coefficient, typical value is 0.1%)
• UL Recognized compound meeting flammability rating V-0
• Halogen free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
• Recognized to UL 497B as an Isolated Loop Circuit Protector
■ Products manufactured in the Philippines are available.
-Parts with an E suffix are manufactured outside China. ( See Ordering and Packaging Options section for details)
Product Applications
TVS components are ideal for the protection of I/O Interfaces,VCC bus and other vulnerable circuits used in telecom, computer, Industrial and consumer electronic applications.
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SMDJ70CA |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Series | SMDJ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 70V |
| Voltage - Breakdown (Min) | 77.8V |
| Voltage - Clamping (Max) @ Ipp | 113V |
| Current - Peak Pulse(10/1000µs) | 26.5A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |

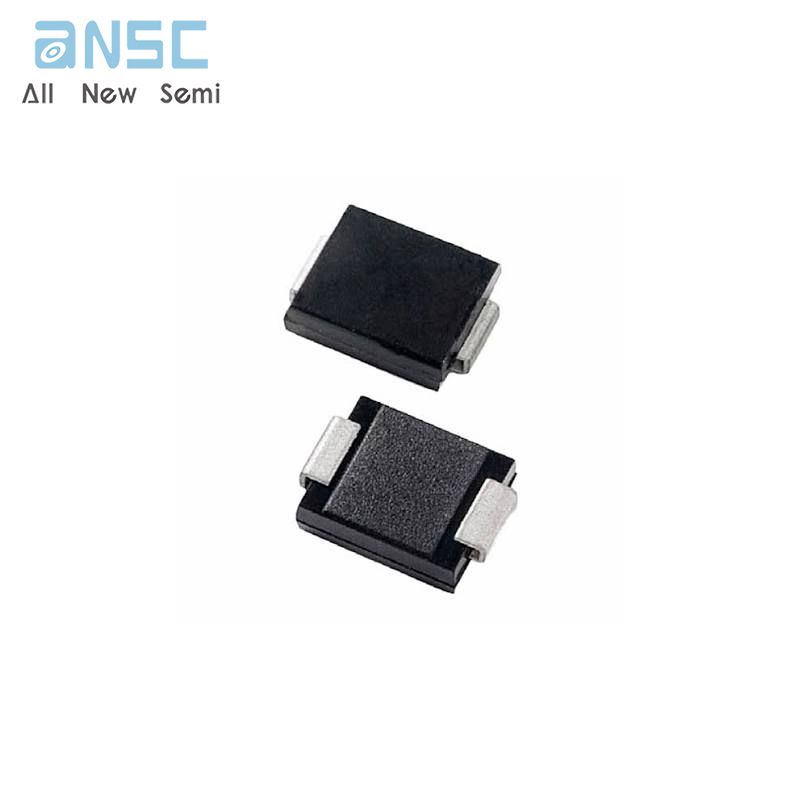

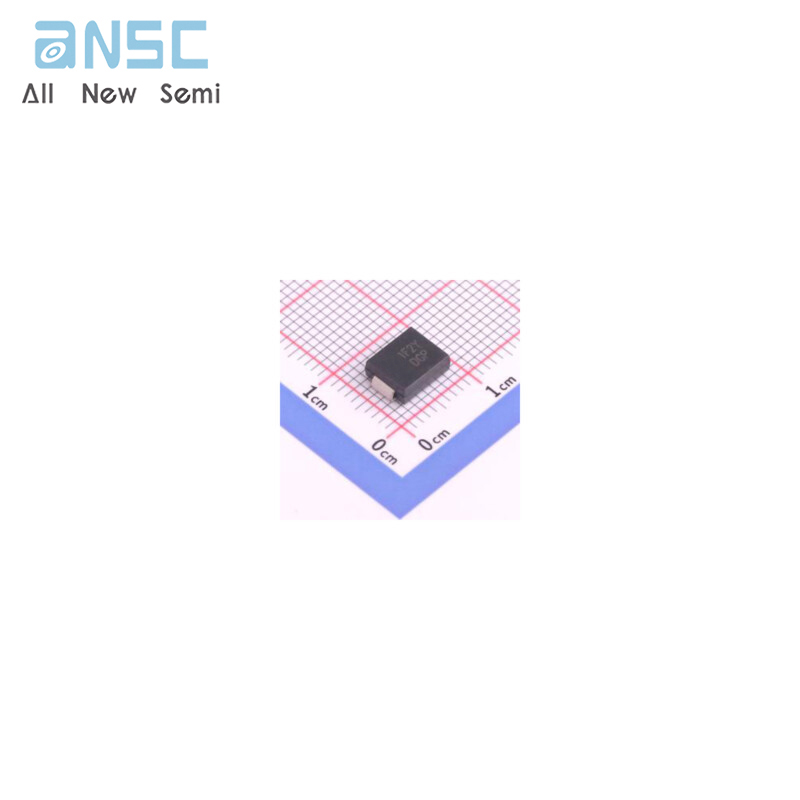

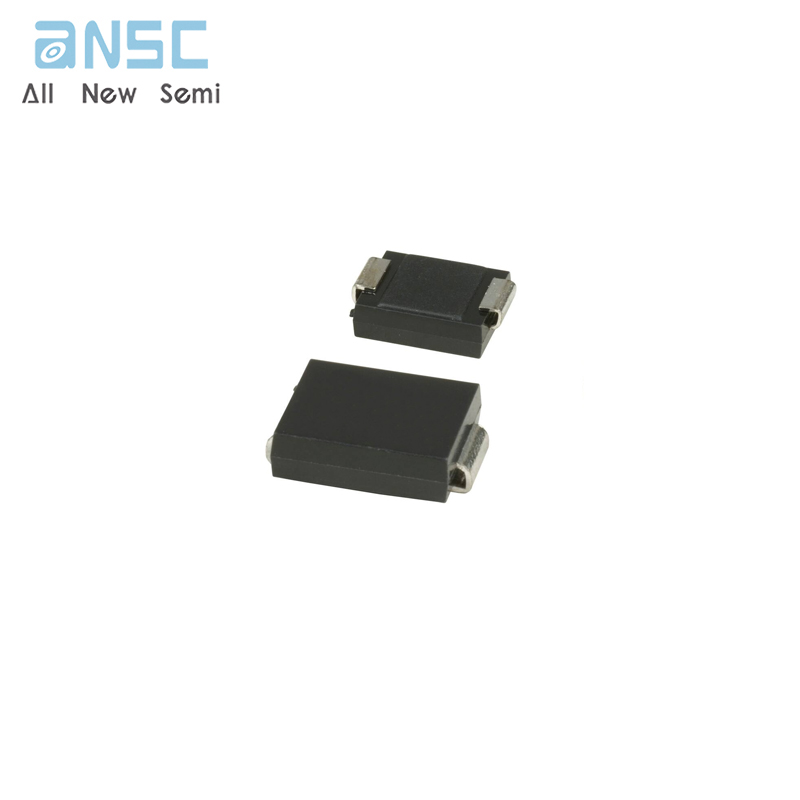

Product Photos
