Professional supply Original Schottky barrier rectifier BOM distribution service electronic components PMEG4050EP Diodes

Manufacturer Product Number

PMEG4050EP

Description

PMEG4050EP Rectifier Diode

Package Condition

original

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

General description
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package.
Features
■ Average forward current: IF(AV) ≤ 5 A
■ Reverse voltage: VR ≤ 40 V
■ Low forward voltage
■ High power capability due to clip-bond technology
■ AEC-Q101 qualified
■ Small and flat lead SMD plastic package
Applications
■ Low voltage rectification
■ High efficiency DC-to-DC conversion
■ Switch Mode Power Supply (SMPS)
■ Reverse polarity protection
■ Low power consumption applications

Product Description

Type#	Description
ANSC PART#	ANSC- PMEG4050EP
Ihs Manufacturer	Original
Application	EFFICIENCY
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Moisture Sensitivity Level	1
Non-rep Pk Forward Current-Max	70 A
Number of Elements	1
Number of Phases	1
Number of Terminals	2
Operating Temperature-Max	150 °C
Output Current-Max	5 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE
Peak Reflow Temperature (Cel)	260
Power Dissipation-Max	1.05 W
Reference Standard	IEC-60134
Surface Mount	YES
Technology	SCHOTTKY
Terminal Finish	Tin (Sn)
Terminal Form	FLAT
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30

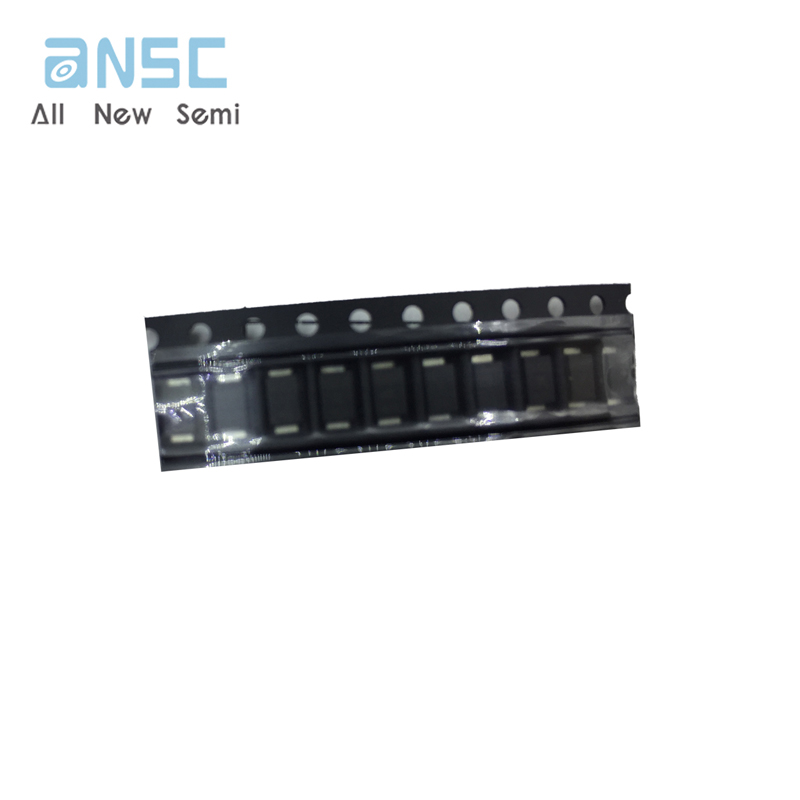

Actual image of the product

PMEG4050EP

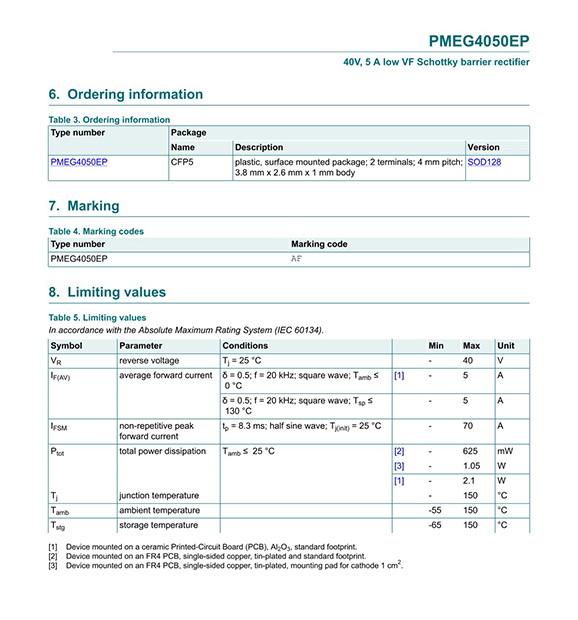

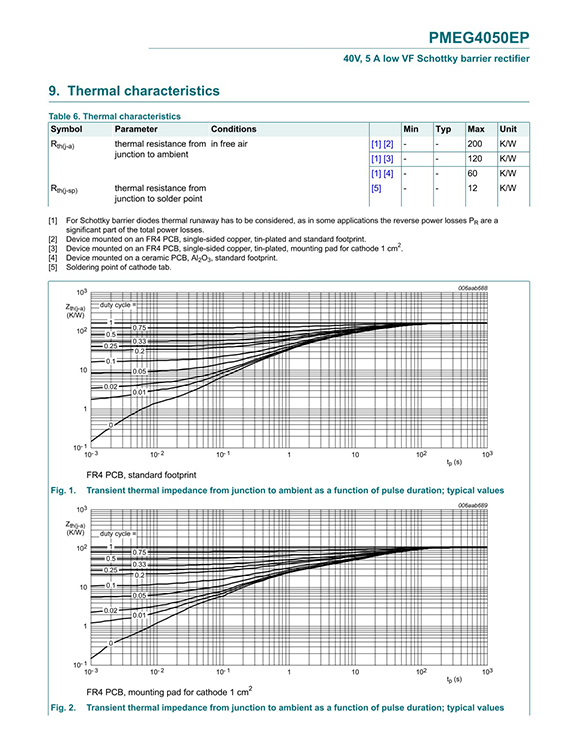

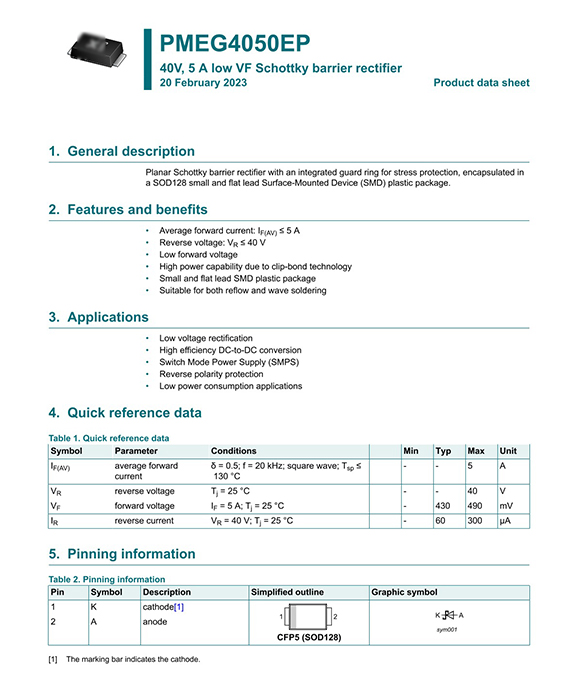

Product datasheet

For more information, please download
