Hot-selling and scarce SM8S33AHE3/2D Transient Voltage Suppressors DO218 spot stock
Manufacturer Product Number
SM8S33AHE3/2D
Description
SM8S33AHE3/2D Transient Voltage Suppressors DO218 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Junction passivation optimized design passivated anisotropic rectifier technology
• T J = 175 °C capability suitable for high reliability and automotive requirement
• Available in uni-directional polarity only
• Low leakage current
• Low forward voltage drop
• High surge capability
• Meets ISO7637-2 surge specification (varied by test condition)
• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
• AEC-Q101 qualified
Product Applications
Use in sensitive electronics protection against voltagetransients induced by inductive load switching and lighting,especially for automotive load dump protection application .
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SM8S33AHE3/2D |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Series | PAR® |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 33V |
| Voltage - Breakdown (Min) | 36.7V |
| Voltage - Clamping (Max) @ Ipp | 53.3V |
| Current - Peak Pulse(10/1000µs) | 124A |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | SM8S33 |

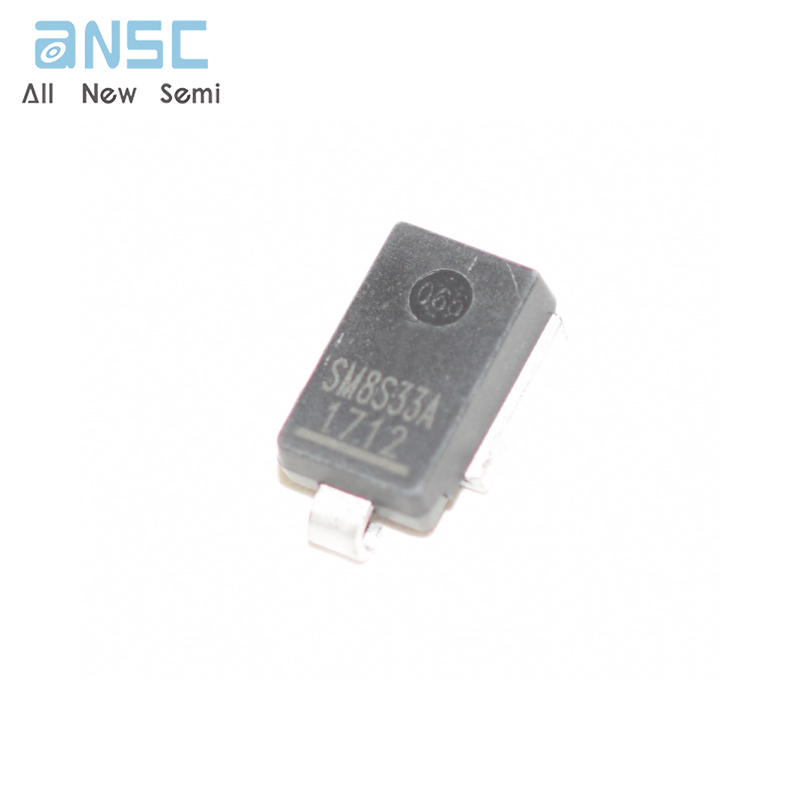

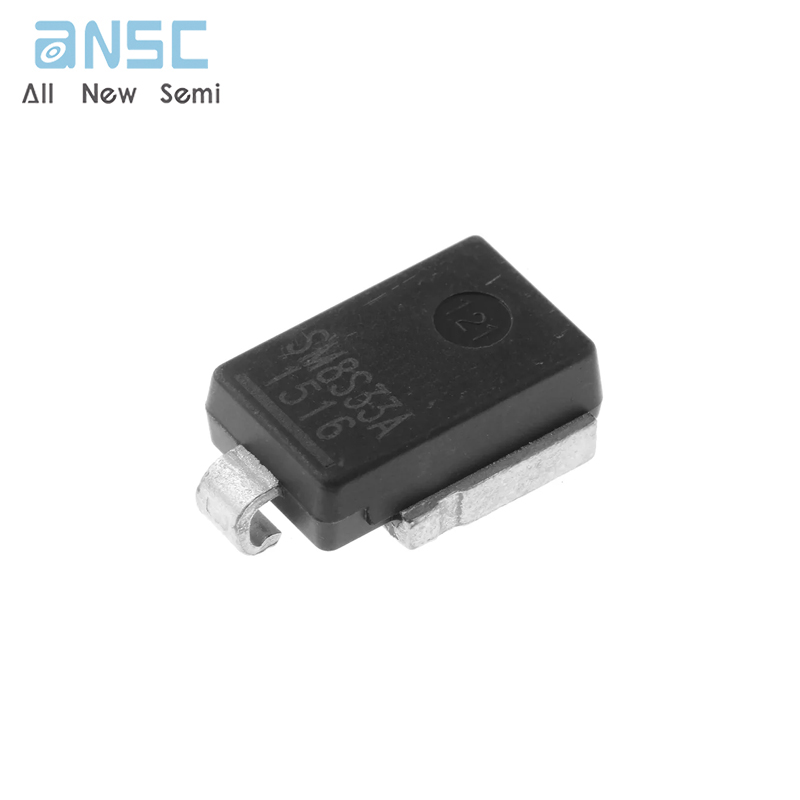

Product Photos
For more product information, please download the PDF
