Hot sale Original BAS70-05-TP Rectifiers Diode Array 1 Pair Common Cathode 70 V 70mA (DC) Surface Mount SOT-23 200nA
Manufacturer Product Number
BAS70-05-TP
Description
Original BAS70-05-TP Rectifiers Diode Array 1 Pair Common Cathode 70 V 70mA (DC) Surface Mount SOT-23 200nA
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
This device can support a maximum output voltage of 0.07A.
Product Features
a maximum output voltage of 0.07A
Product Applications
BAS70-05-TP applications of rectifier diode array.
Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - BAS70-05-TP |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Diode Arrays |
|
Manufacturer |
- |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Diode Configuration |
1 Pair Common Cathode |
|
Technology |
Schottky |
|
Voltage - DC Reverse (Vr) (Max) |
70 V |
|
Current - Average Rectified (Io) (per Diode) |
70mA (DC) |
|
Voltage - Forward (Vf) (Max) @ If |
1 V @ 15 mA |
|
Speed |
Small Signal =< 200mA (Io), Any Speed |
|
Reverse Recovery Time (trr) |
5 ns |
|
Current - Reverse Leakage @ Vr |
200 nA @ 50 V |
|
Operating Temperature - Junction |
-55°C ~ 125°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
Supplier Device Package |
SOT-23 |
|
Base Product Number |
BAS70 |

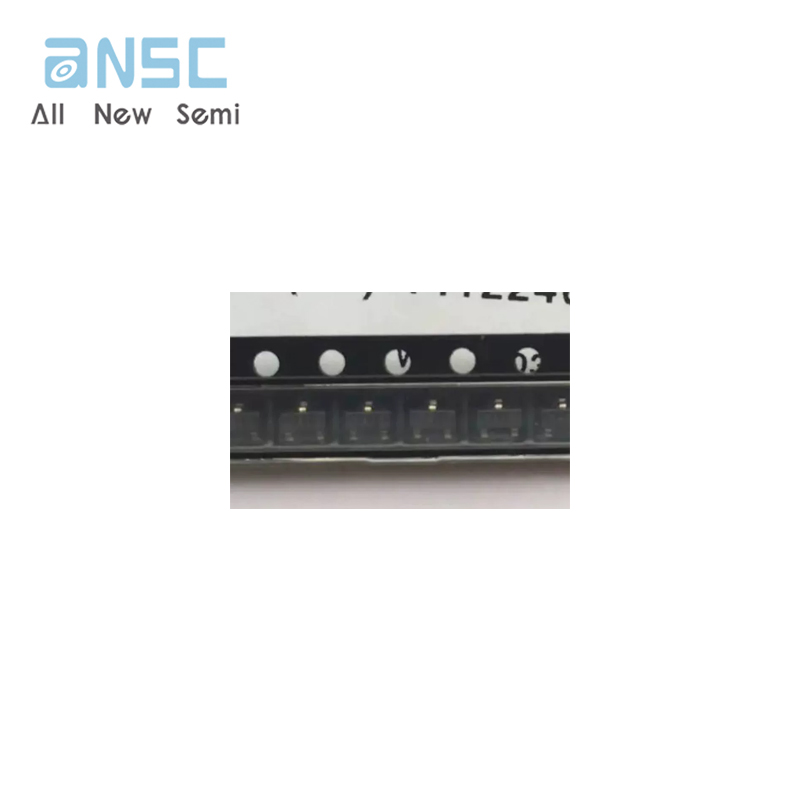

Actual image of the product

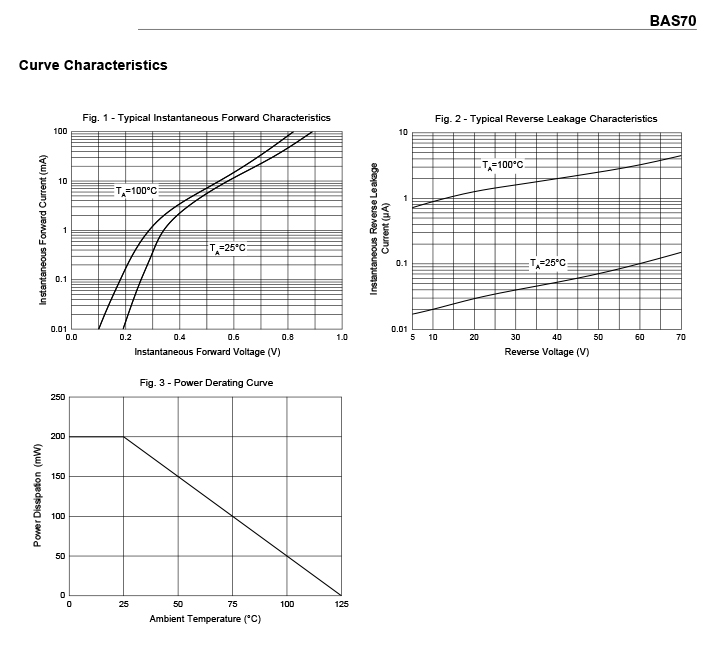

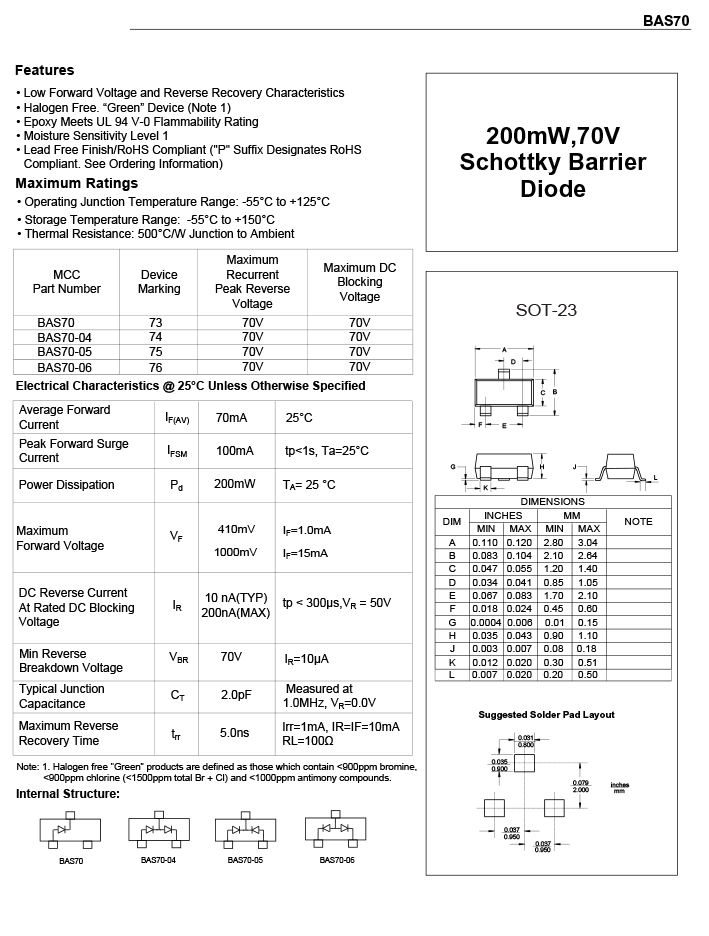

Product datasheet
For more information, please download
