Hot offer BOM distribution service electronic components MB56 5.0A Surface Mount Schottky Barrier Diode
Manufacturer Product Number
MB56
Description
MB56 Rectifier Diode Schottky 1 Phase 1 Element 5A 60V V(RRM) Silicon DO-214AB PLASTIC SMC 2 PIN
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
STAND-OFF VOLTAGE - 6.8 to 200 Volts
POWER DISSIPATION - 600 WATTS
FEATURES
● Rating to 200V VBR
● For surface mounted applications
● Reliable low cost construction utilizing molded plastic technique
● Plastic material has UL flammability classification 94V-O
● Typical IR less than 1uA above 10V
● Fast response time: typically less than 1.0ps for
● Uni-direction,less than 5.0ns for Bi-direction,form 0 Volts to BV min
Product Description
| Type# | Description |
| PART# | MB56 |
| Manufacturer | / |
| Part Package | DO-214AB |
| Package Description | ROHS COMPLIANT, PLASTIC, SMC, 2 PIN |
| Pin Count | 2 |
| Samacsys Manufacturer | / |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS |
| Application | EFFICIENCY |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| JEDEC-95 Code | DO-214AB |
| JESD-30 Code | R-PDSO-C2 |
| Non-rep Pk Forward Current-Max | 100 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 175 °C |
| Operating Temperature-Min | -65 °C |
| Output Current-Max | 5 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Rep Pk Reverse Voltage-Max | 60 V |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |

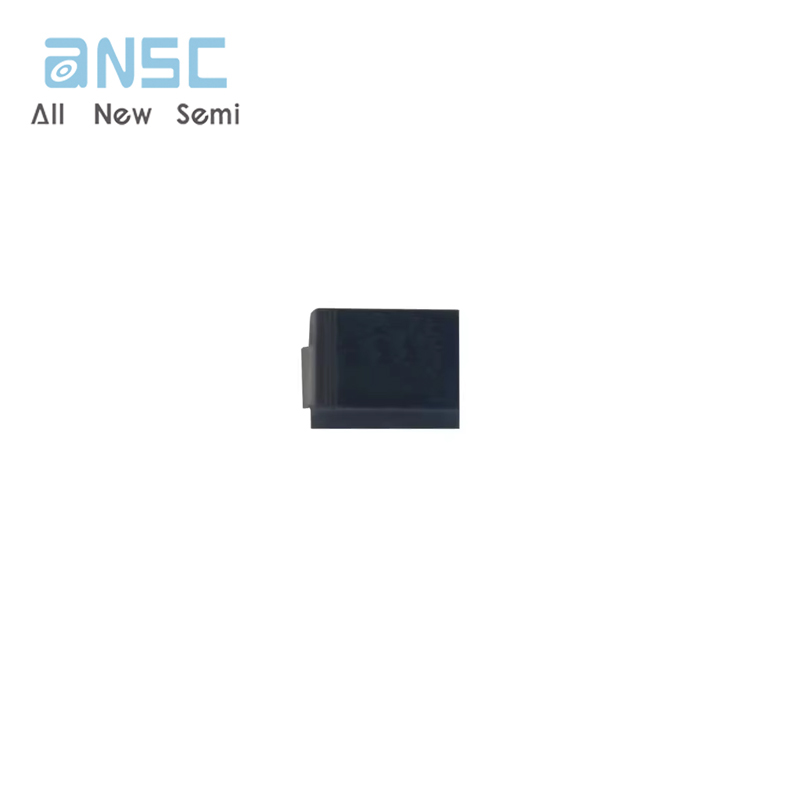

Actual image of the product

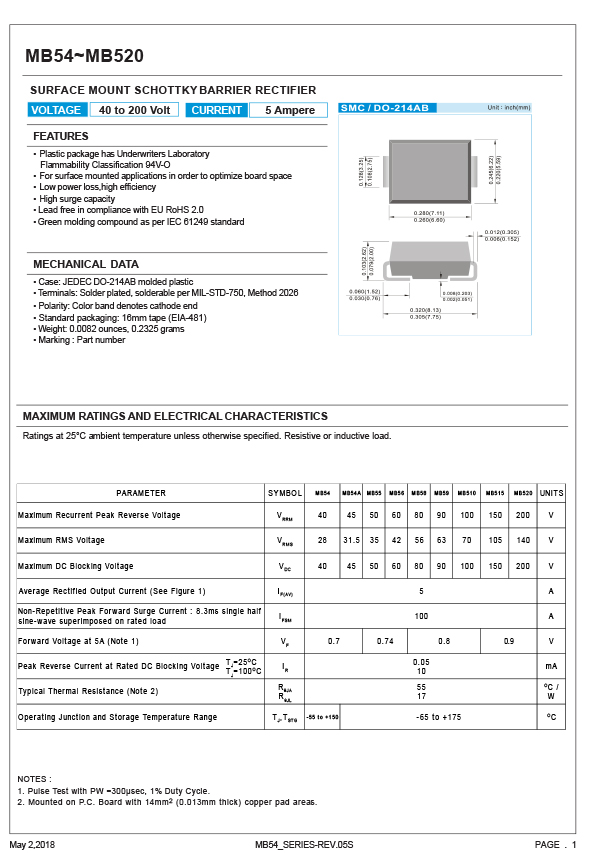

Product datasheet
