Hot-selling and scarce BAW56-7-F DUAL SURFACE MOUNT SWITCHING DIODE SOT23 spot stock
Manufacturer Product Number
BAW56-7-F
Description
BAW56-7-F DUAL SURFACE MOUNT SWITCHING DIODE SOT23 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
• Case: SOT-23
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).
• Polarity: See Diagram
• Marking Information: See Page 3
• Ordering Information: See Page 3
• Weight: 0.008 grams (approximate)
Product Features
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automatic Insertion
• For General Purpose Switching Applications
• High Conductance
• Lead Free/RoHS Compliant (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BAW56-7-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Diode Configuration | 1 Pair Common Anode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) (per Diode) | 300mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 75 V |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | BAW56 |

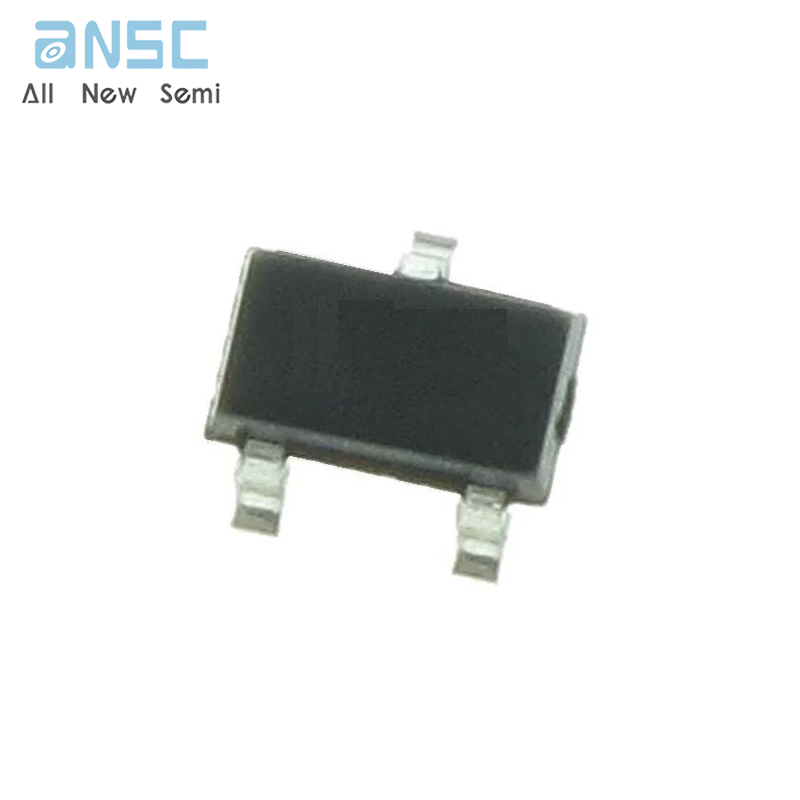

Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
