Hot sale Original DSS2X101-015A DIODE MOD SCHOTT SOT227B Diode Array 2 Independent 150 V 100A Chassis Mount SOT-227-4 miniBLOC
Manufacturer Product Number
DSS2X101-015A
Description
Original DSS2X101-015A DIODE MOD SCHOTT SOT227B Diode Array 2 Independent 150 V 100A Chassis Mount SOT-227-4 miniBLOC
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)

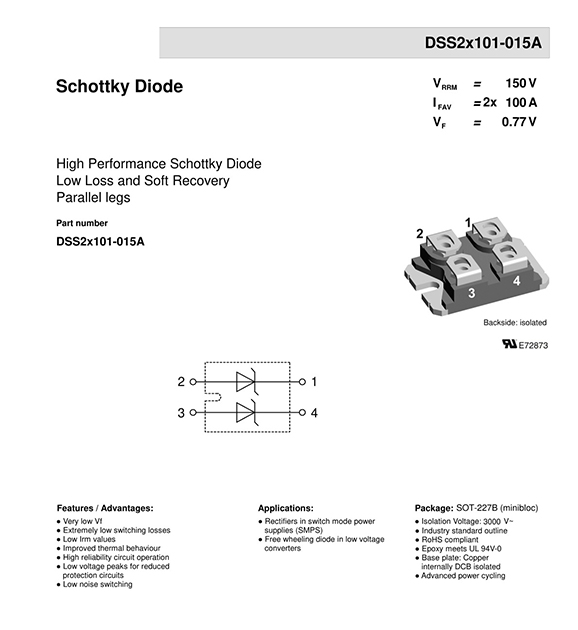

Product Details
Schottky Diode
High Performance Schottky Diode Low Loss and Soft Recovery Parallel legs
Features / Advantages:
● Very low Vf
● Extremely low switching losses
● low Irm values
● Improved thermal behaviour
● High reliability circuit operation
● Low voltage peaks for reduced protection circuits
● Low noise switching
Applications:
● Rectifiers in switch mode power supplies (SMPS)
● Free wheeling diode in low voltage converters
Product Description
| Type | Description |
| Part# | DSS2X101-015A |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Diode Configuration | 2 Independent |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Current - Average Rectified (Io) (per Diode) | 100A |
| Voltage - Forward (Vf) (Max) @ If | 910 mV @ 100 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 4 mA @ 150 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
| Base Product Number | DSS2 |

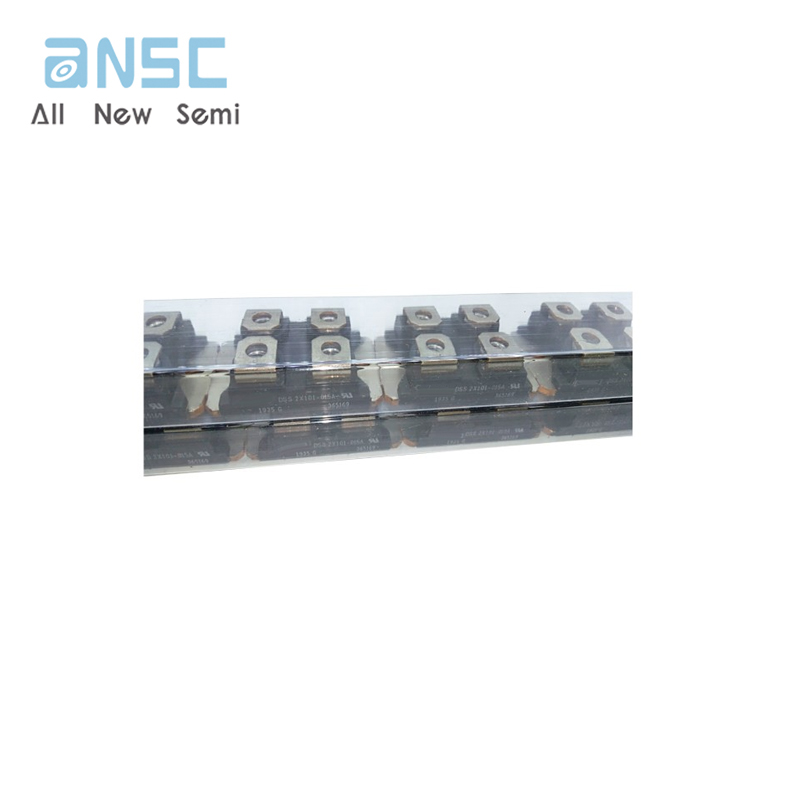

Product Photos

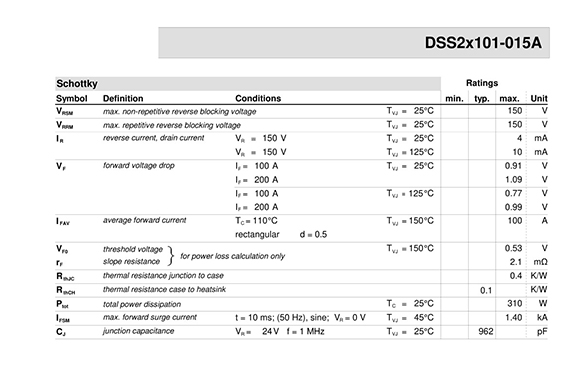

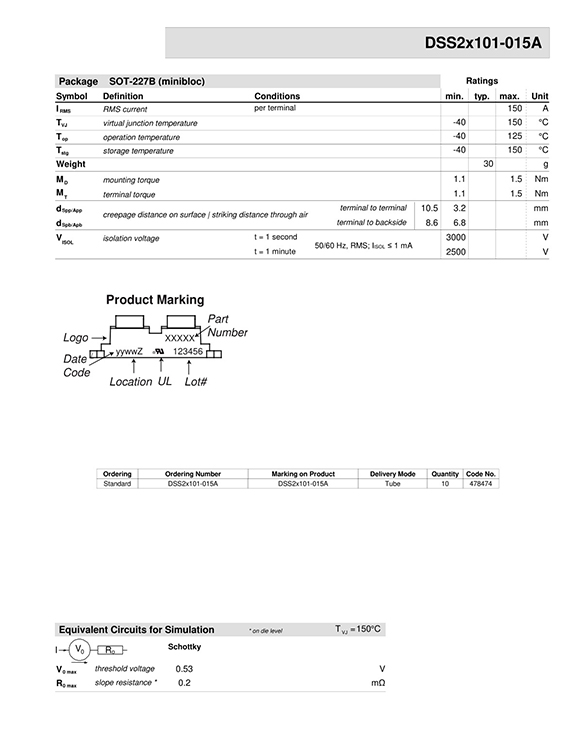

Product datasheet
For more information, please download
