Hot-selling and scarce ZHCS1000TA SURFACE MOUNT SCHOTTKY BARRIER DIODE SOT-23 spot stock
Manufacturer Product Number
ZHCS1000TA
Description
ZHCS1000TA SURFACE MOUNT SCHOTTKY BARRIER DIODE SOT-23 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Package: SOT23
Package Material: Molded Plastic,“Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.0089 grams (Approximate)
Product Features
High Current Capability (IF = 1A)
Low VF
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free.“Green” Device
Product Applications
DC-DC converters
Mobile telecoms
PCMIA & SCSI
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ZHCS1000TA |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 12 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 30 V |
| Capacitance @ Vr, F | 25pF @ 25V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Operating Temperature - Junction | 125°C (Max) |
| Base Product Number | ZHCS1000 |

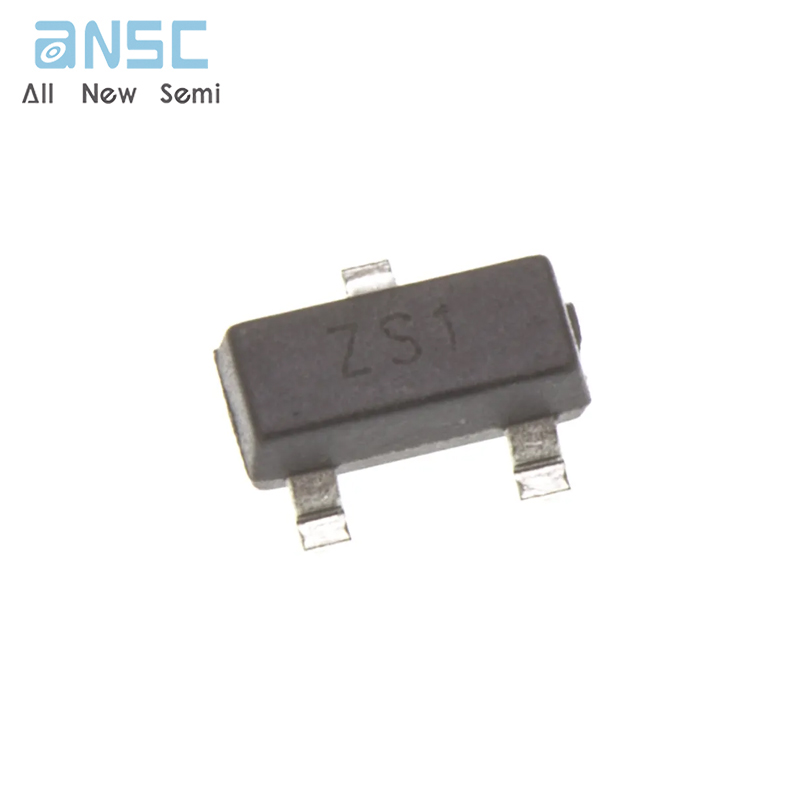

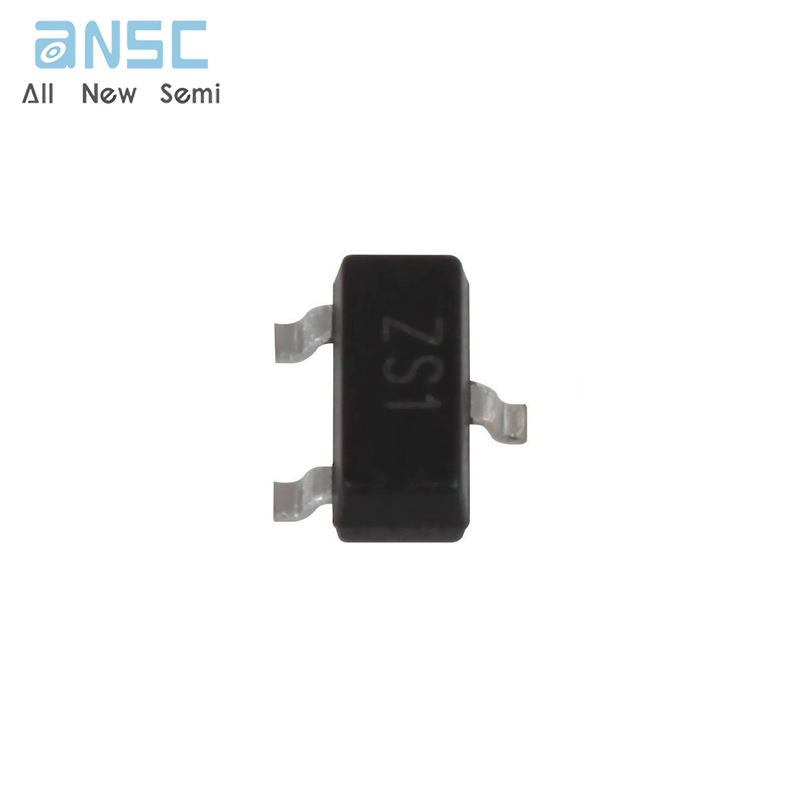

Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
