Hot sale Original ESDARF02-1BU2CK TVS DIODE 3.6VWM 12VC 0201 12V Clamp 1.5A (8/20µs) Ipp Tvs Diode Surface Mount
Manufacturer Product Number
ESDARF02-1BU2CK
Description
ESDARF02-1BU2CK TVS DIODE 3.6VWM 12VC 0201
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description: * The ESDAxx is a dual monolithic voltage suppressor designed to protect components which are connected to data and transmission lines against ESD. It clamps the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transients. It can also work as bidirectionnal suppressor by connecting only pin1 and 2. Features: * 2 Unidirectional Transil functions * Low leakage current: IR max< 20 μA at VBR * 300W peak pulse power(8/20μs) * High ESD protection level: up to 25 kV * Complies with the following standards: IEC61000-4-2 Level 4 MIL STD 883c - Method 3015-6 Class 3(Human Body Model) Application: * Computers * Printers * Communication systems * It is particulary recommended for the RS232 I/O port protection where the line interface withstands only with 2kV ESD surges. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - ESDARF02-1BU2CK |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.6V |
| Voltage - Breakdown (Min) | 5V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000碌s) | 1.5A (8/20µs) |
| Power - Peak Pulse | 20W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.2pF @ 200MHz ~ 3GHz |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 201 |
| Base Product Number | ESDARF02 |

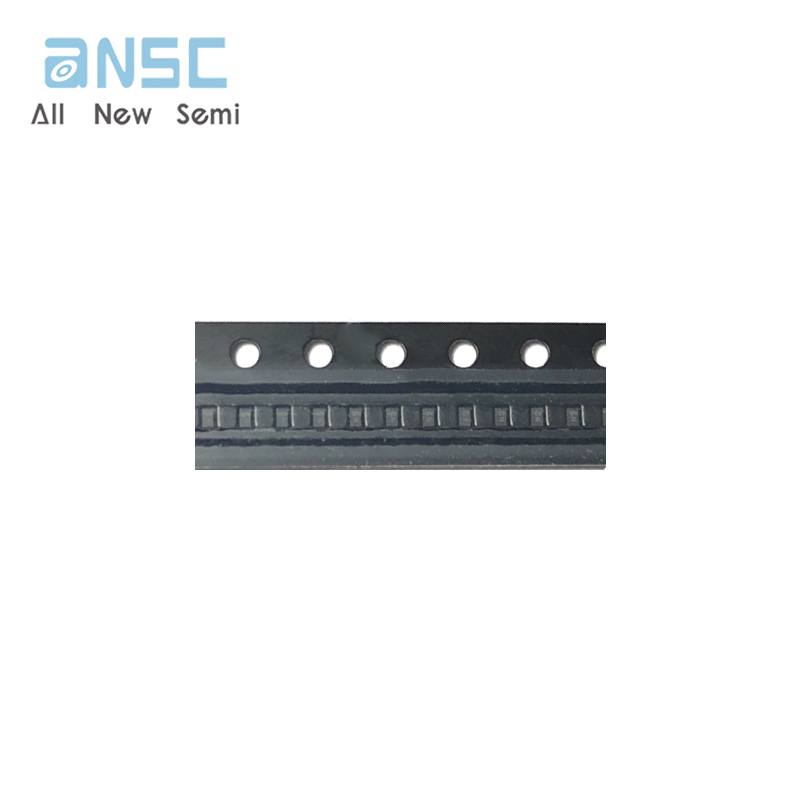

Actual image of the product

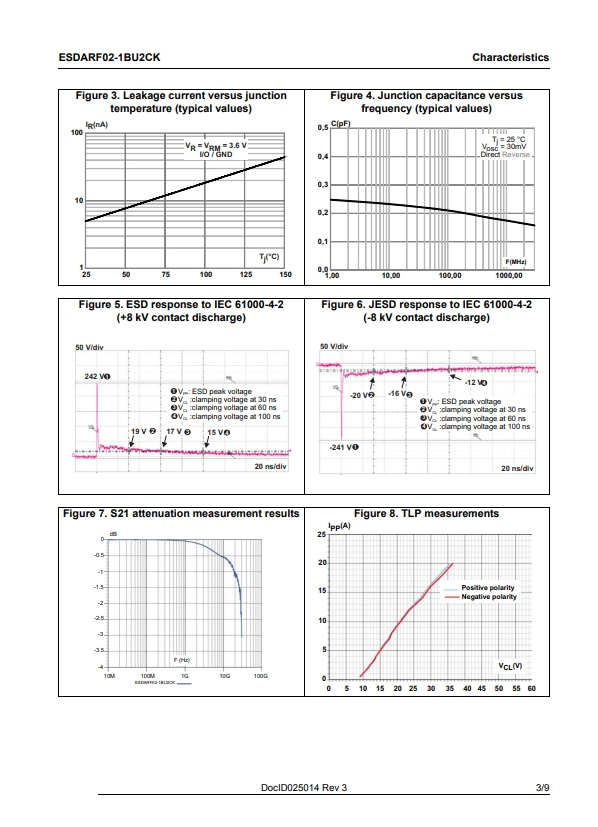

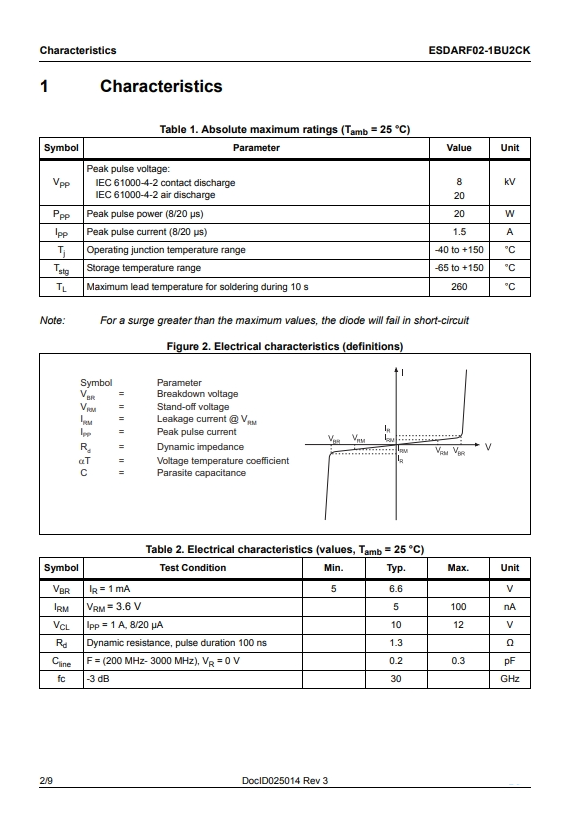

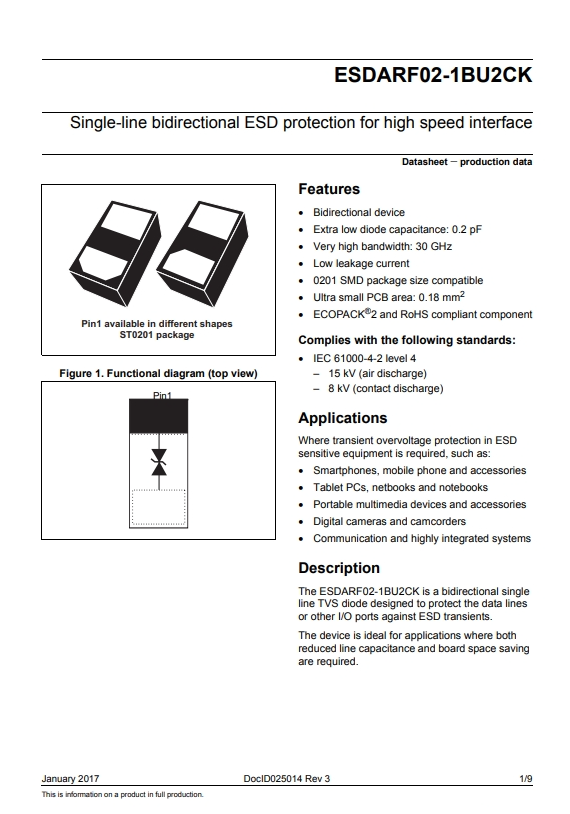

Product datasheet
For more information, please download
