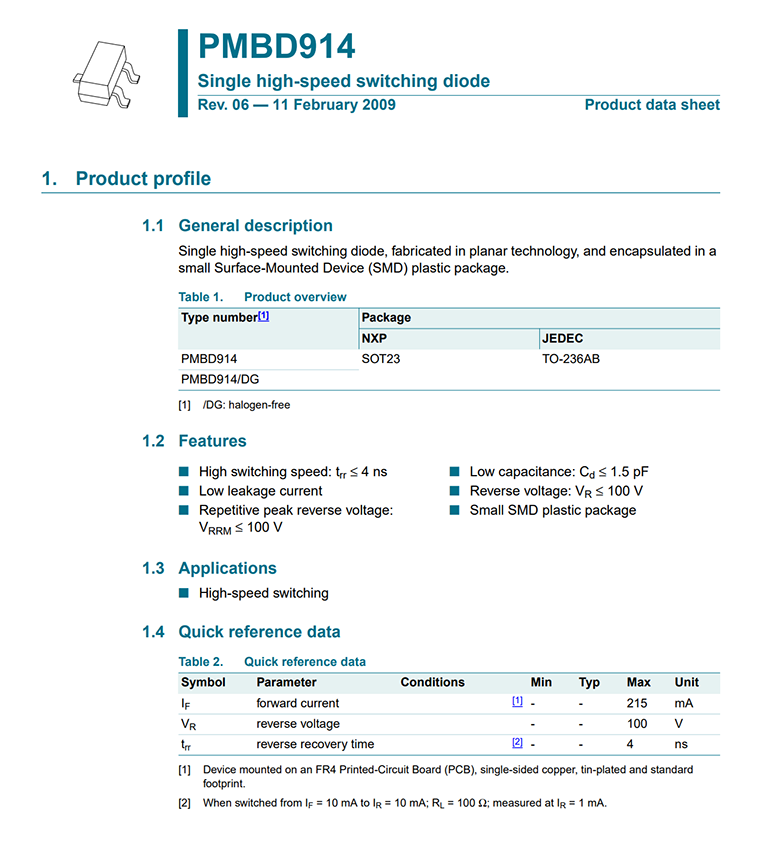

The PMBD914 is a high-speed switching diode fabricated in planar technology, and encapsulated in the small SOT23 plastic SMD package.
FEATURES
• Small plastic SMD package
• High switching speed: max. 4 ns
• Continuous reverse voltage: max. 70 V
• Repetitive peak reverse voltage: max. 85 V
• Repetitive peak forward current: max. 500 mA
• Reverse recovery time: max. 4 ns.
APPLICATIONS
• High-speed switching in thick and thin-film circuits.

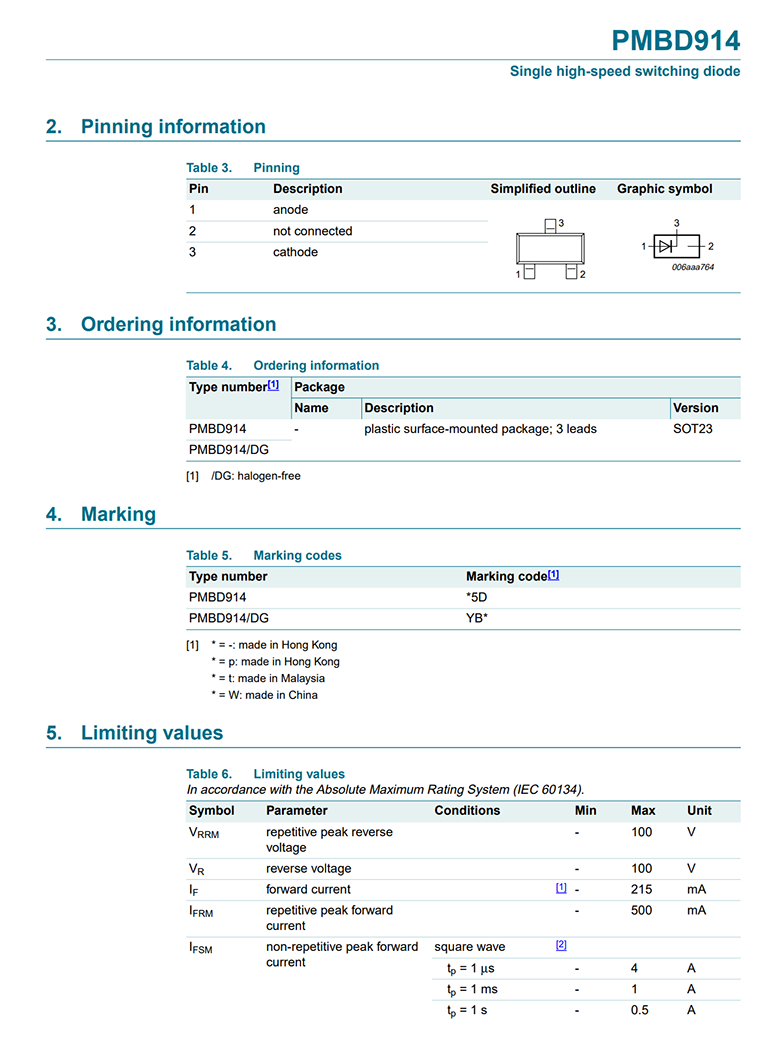

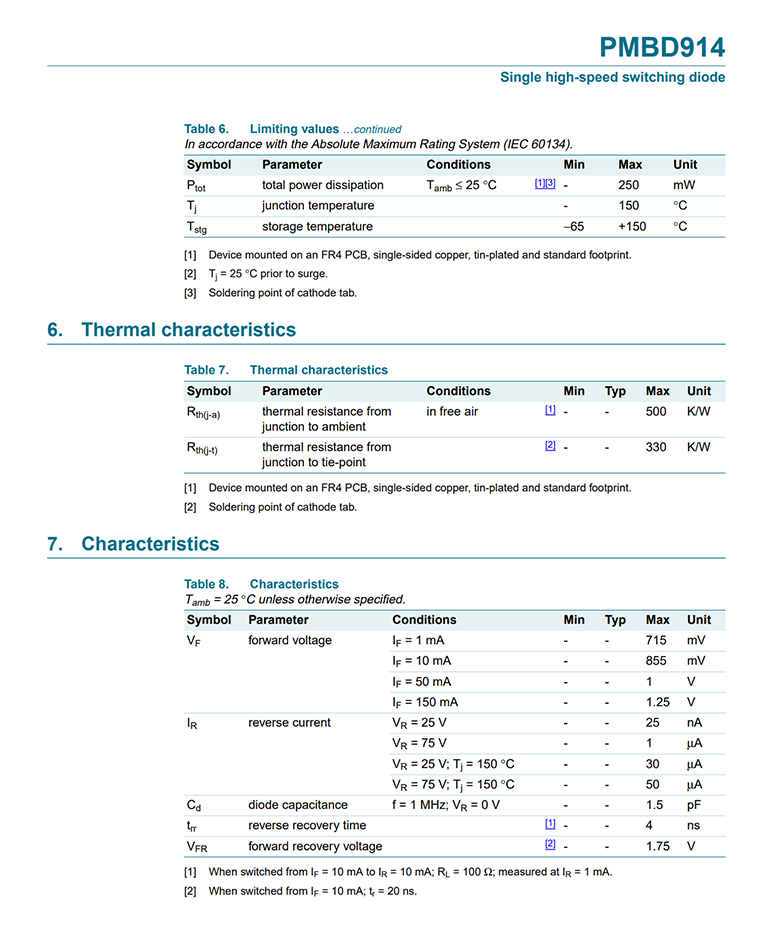

Product Description
| Type# | Description |
| ANSC PART# | ANSC -PMBD914 |
| Manufacturer | / |
| Part Package | SOT-23 |
| Package Description | PLASTIC PACKAGE-3 |
| Pin Count | 3 |
| Samacsys Manufacturer | NXP |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1 V |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 0.5 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Output Current-Max | 0.215 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Dissipation-Max | 0.25 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 100 V |
| Reverse Current-Max | 5 µA |
| Reverse Recovery Time-Max | 0.004 µs |
| Surface Mount | YES |
| Terminal Finish | Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
