Hot sale Original TPD4S012DRYR TVS DIODE 5.5VWM Clamp 3A (8/20us) Ipp Tvs Diode Surface Mount 6-SON Steering (Rail to Rail)
Manufacturer Product Number
TPD4S012DRYR
Description
Original TPD4S012DRYR TVS DIODE 5.5VWM Clamp 3A (8/20us) Ipp Tvs Diode Surface Mount 6-SON Steering (Rail to Rail)
Package Condition
original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

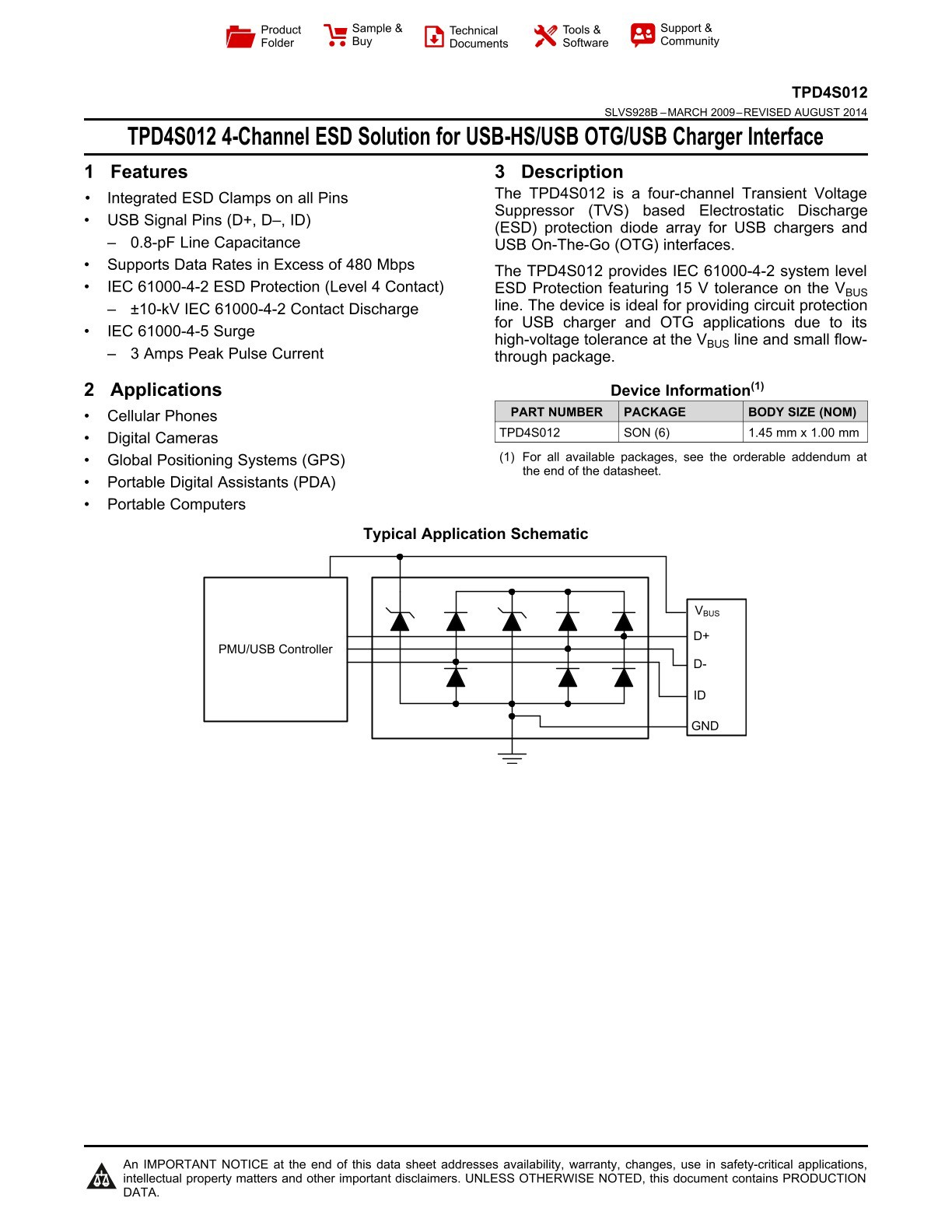

| Description The TPD4S012 is a four-channel Electrostatic Discharge (ESD) protection diode array based on Transient Voltage Suppressor (TVS) for USB chargers and USB On-The-Go (OTG) interfaces. The TPD4S012 delivers IEC 61000-4-2 system level ESD protection with a Vgus line tolerance of 15 V. Because of its high voltage tolerance at the Vg BuS line and tiny flow-through packaging, the device is perfect for providing circuit protection for USB charging and OTG applications. Features ●Integrated ESD Clamps on all Pins ●USB Signal Pins (D+, D-, ID) - 0.8-pF Line Capacitance ●Supports Data Rates in Excess of 480 Mbps ●IEC 61000-4-2 ESD Protection (Level 4 Contact) - +10-KV IEC 61000-4-2 Contact Discharge ●IEC 61000-4-5 Surge - 3 Amps Peak Pulse Current Applications ●Cellular Phones ●Digital Cameras ●Global Positioning Systems (GPS) ●Portable Digital Assistants (PDA) ●Portable Computers |
Product Description
| Type | Description |
| ANSC PART# | ANSC - TPD4S012DRYR |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5.5V |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 60W |
| Power Line Protection | Yes |
| Applications | USB |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-SON (1.45x1) |
| Base Product Number | TPD4S012 |

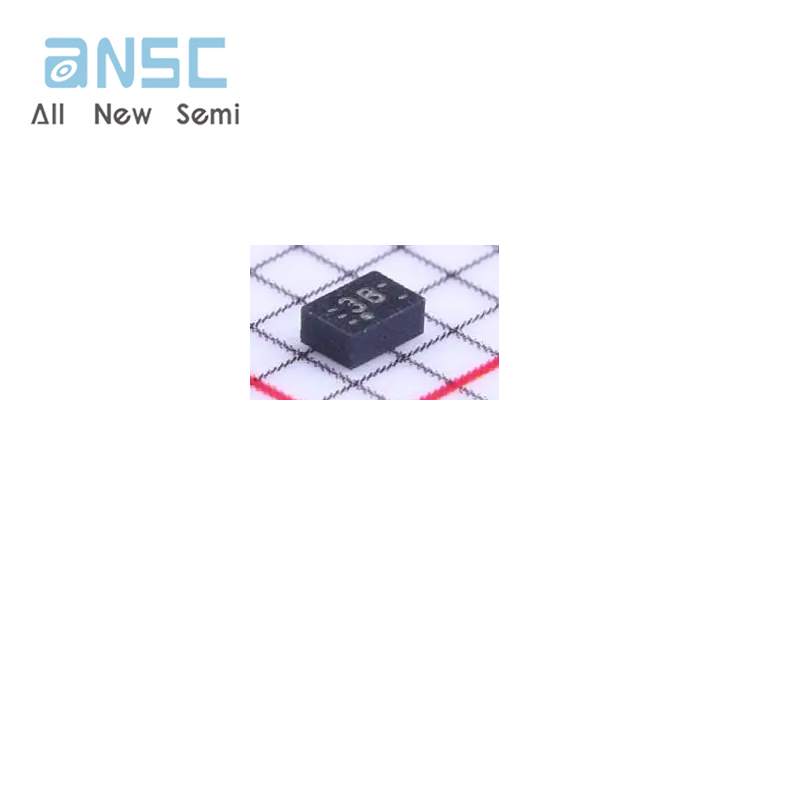

Actual image of the product

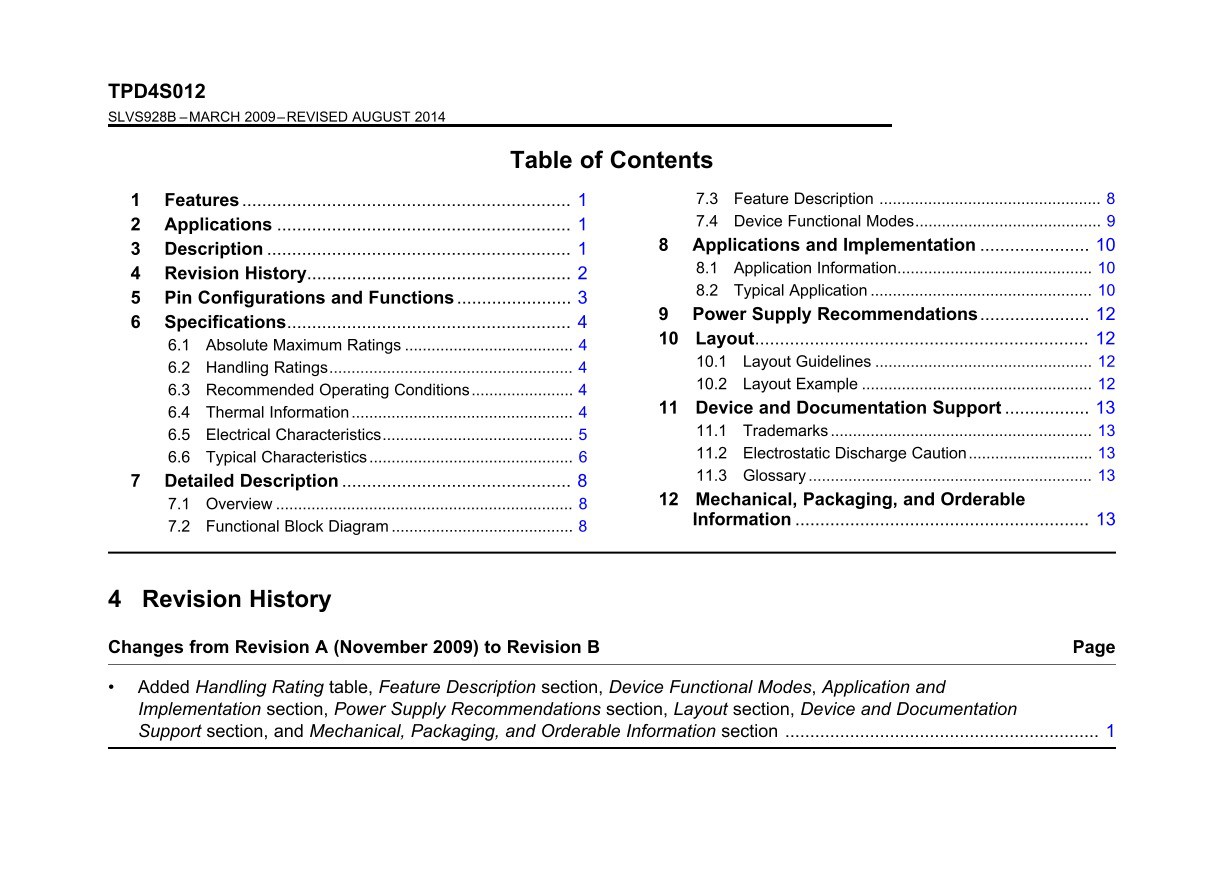

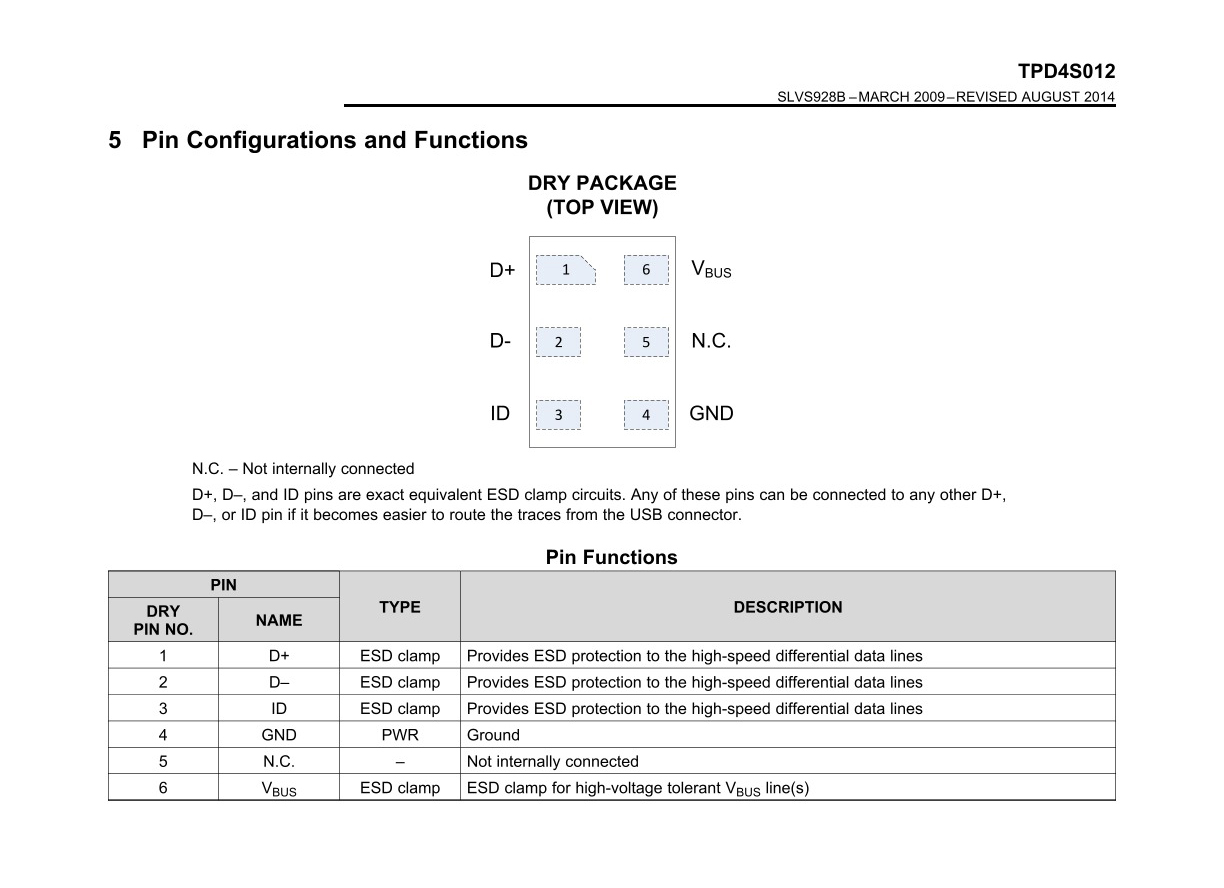

Product datasheet
