Hot sale Original SMBJ16A-13-F TVS DIODE 16VWM 26V Clamp 23.1A Ipp Tvs Diode Surface Mount SMB General Purpose
Manufacturer Product Number
SMBJ16A-13-F
Description
Original SMBJ16A-13-F TVS DIODE 16VWM 26V Clamp 23.1A Ipp Tvs Diode Surface Mount SMB General Purpose
Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
600W Peak Pulse Power Dissipation
5.0V - 170V Standoff Voltages
Glass Passivated Die Construction
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Material - UL Flammability Classification Rating 94V-0
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - SMBJ16A-13-F |
|
Category |
Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes |
|
Mfr |
- |
|
Series |
SMBJ |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Type |
Zener |
|
Unidirectional Channels |
1 |
|
Voltage - Reverse Standoff (Typ) |
16V |
|
Voltage - Breakdown (Min) |
17.8V |
|
Voltage - Clamping (Max) @ Ipp |
26V |
|
Current - Peak Pulse (10/1000µs) |
23.1A |
|
Power - Peak Pulse |
600W |
|
Power Line Protection |
No |
|
Applications |
General Purpose |
|
Capacitance @ Frequency |
- |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AA, SMB |
|
Supplier Device Package |
SMB |
|
Base Product Number |
SMBJ16 |

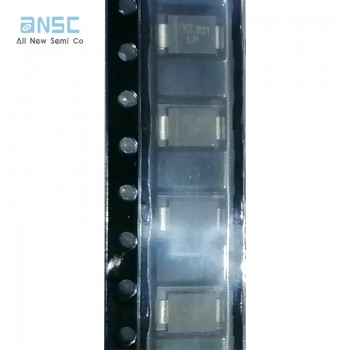

Actual image of the product
