Hot sale Original 5KP24A-E3/54 Diodes TVS Diodes Zener 1 Channels General Purpose 5000W (5kW) P600, Axial 24V 38.9V Clamp 129A

Product Description

The 5KP24A-E3/54 is a high-reliability, unidirectional TransZorb? TVS (Transient Voltage Suppressor) diode . Designed to provide excellent clamping capability and robust protection against voltage spikes and electrical surges, this diode is ideal for a wide range of applications requiring reliable circuit protection.

Product Features

· High Peak Pulse Power: The 5KP24A-E3/54 can handle up to 5 kW of peak pulse power, making it suitable for high-power applications.

· High Reverse Breakdown Voltage: With a reverse breakdown voltage of 26.7V, this diode offers robust protection against transient voltage events.

· Low Leakage Current: The maximum reverse leakage current is only 2 μA, ensuring minimal current flow during non-conductive states.

· Lead-Free Termination: The matte tin (Sn) termination ensures compliance with lead-free requirements (Pbfree Code: yes).

· Wide Operating Temperature Range: The diode operates effectively between -55°C and 175°C TJ, providing flexibility in various environmental conditions.

· High Surge Current Capability: The maximum surge current is 129A, making it suitable for applications where high transient currents are expected.

Product Applications

The primary applications of the 5KP24A-E3/54 include: - General Purpose Circuit Protection: Ideal for protecting electronic circuits from voltage spikes and electrical surges in general-purpose applications. - Automotive Systems: Used in automotive systems to protect against transient voltage events caused by electrical discharges or other disturbances. - Industrial Equipment: Provides reliable protection for industrial equipment such as motors, pumps, and other machinery prone to electrical surges.

Secondary applications include: - Telecommunications Equipment: Protects telecommunications equipment from voltage spikes and electrical surges. - Consumer Electronics: Used in consumer electronics to safeguard against transient voltage events that could damage components.

Embedded Modules

The 5KP24A-E3/54 is commonly used in various embedded modules designed for circuit protection: - Power Supply Modules: Often integrated into power supply modules to protect against voltage spikes and electrical surges. - Motor Control Modules: Used in motor control modules to safeguard against transient voltage events that could damage motor control circuits. - Communication Interface Modules: Integrated into communication interface modules to protect against electrical surges that could disrupt data transmission.

In summary, the 5KP24A-E3/54 is a robust and reliable TransZorb? TVS diode designed to provide excellent clamping capability and high reliability in a wide range of applications requiring circuit protection against transient voltage events.

Product Description

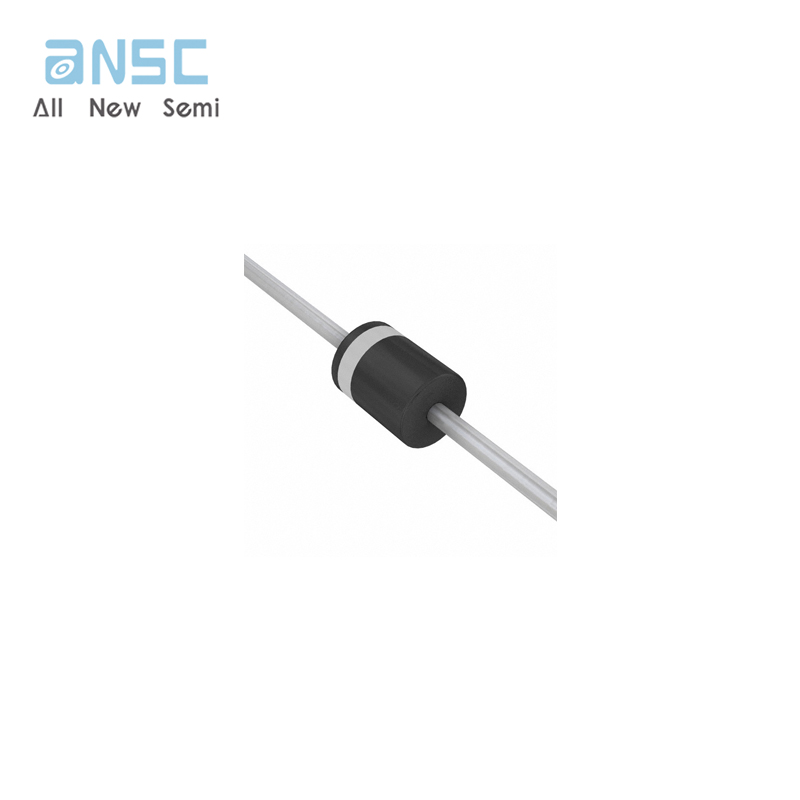

Actual image of the product

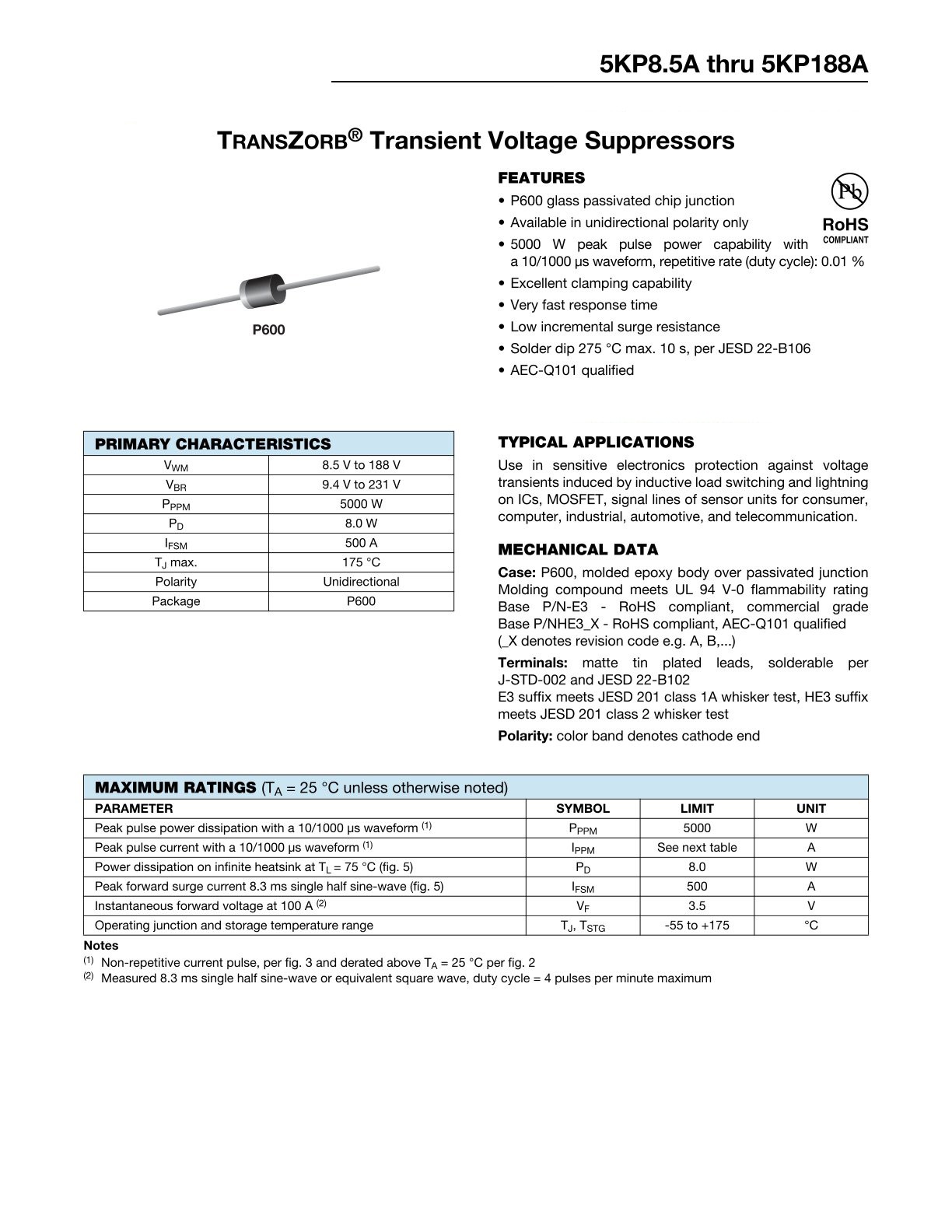

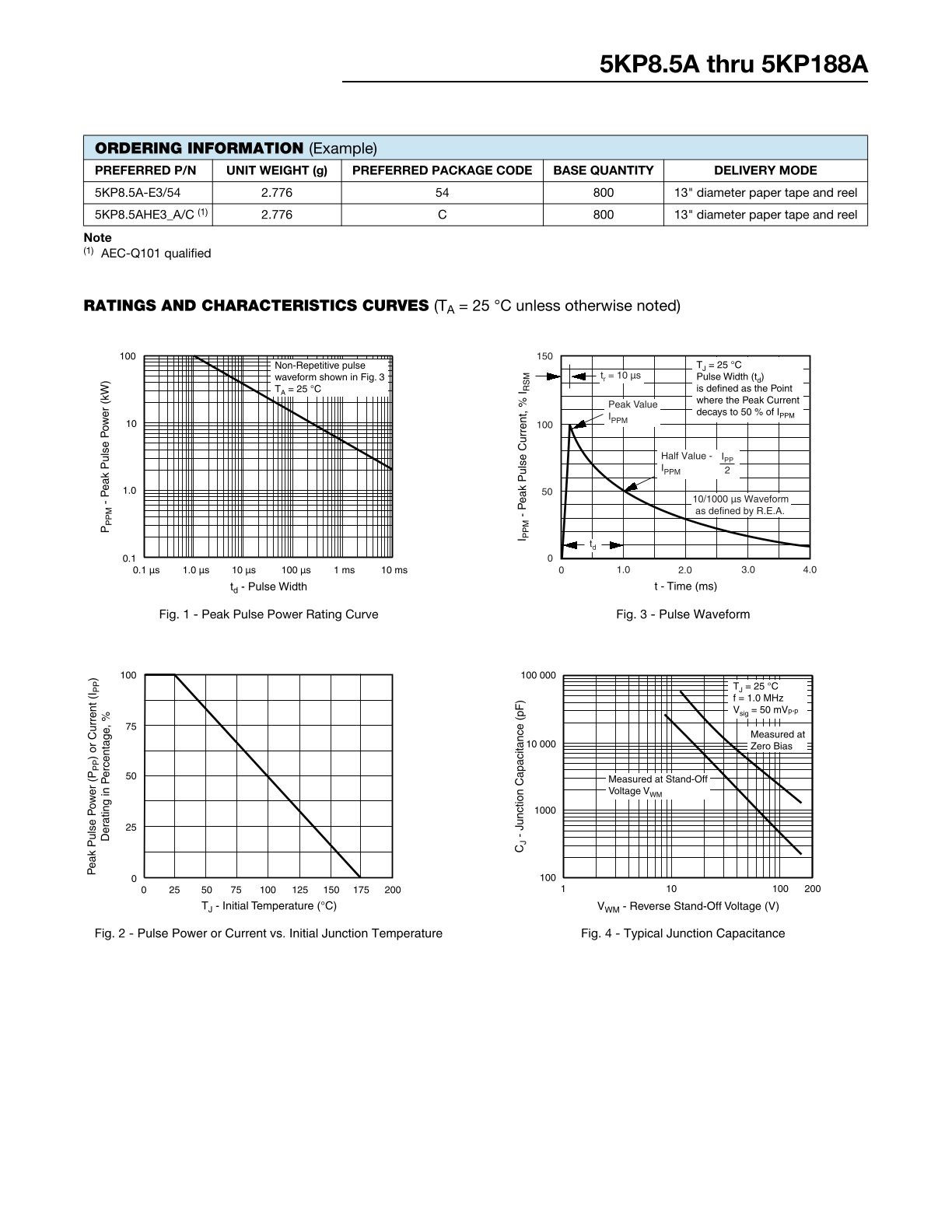

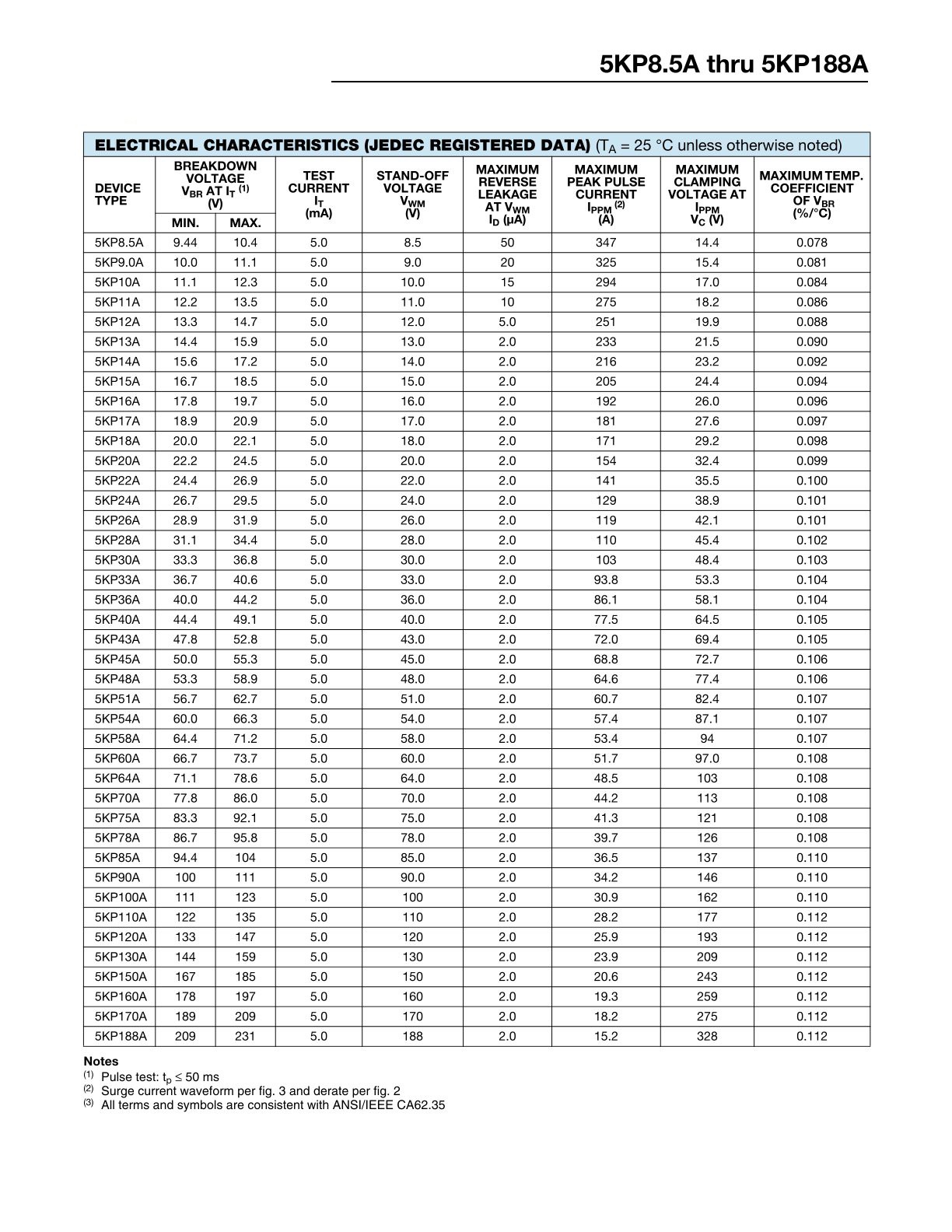

Product datasheet

For more information, please download
