Spot sales of RB160L-40TE25 Schottky barrier diode SOD
Manufacturer Product Number
RB160L-40TE25
Description
RB160L-40TE25 Schottky barrier diode SOD
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
1) Compact power mold type (PMDS)
2) Low IR. (IR=5mA Typ.)
3) High reliability
Product Applications
High frequency rectification
For switching power supply
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-RB160L-40TE25 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Not For New Designs |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | PMDS |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | RB160 |

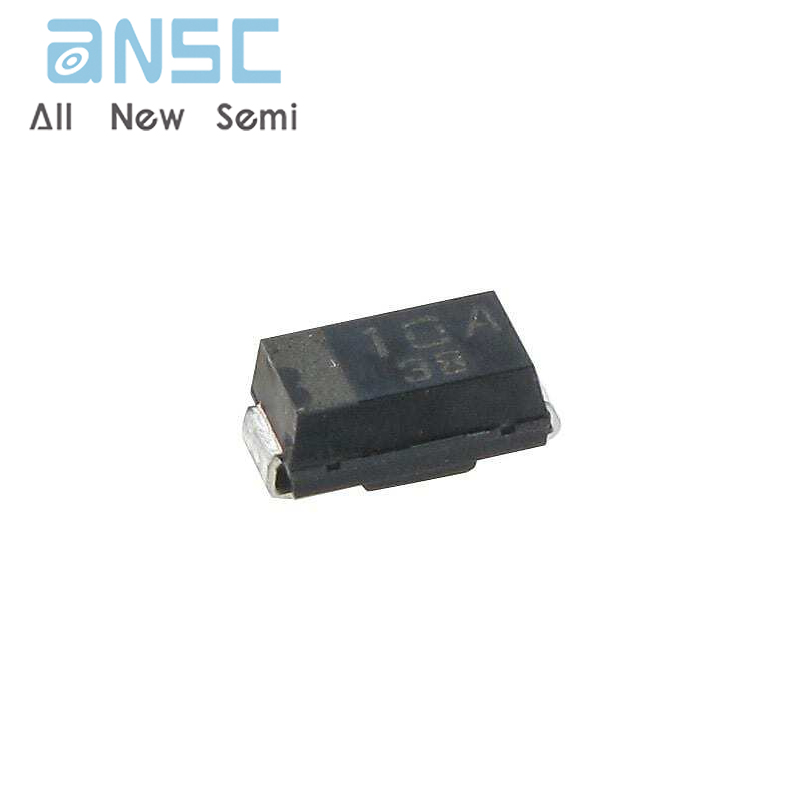

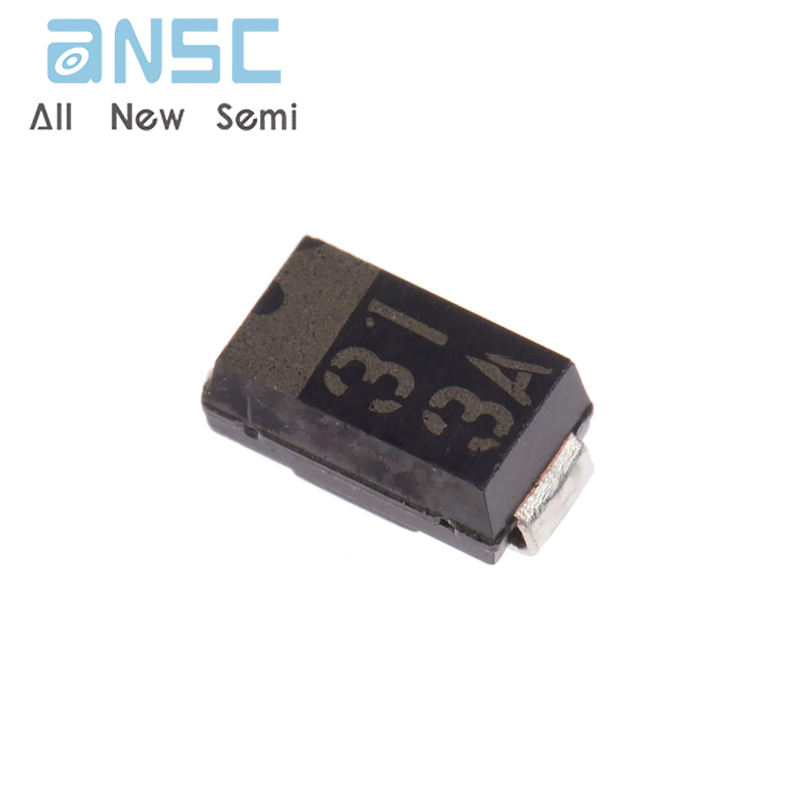

Product Photos
For more product information, please download the PDF
