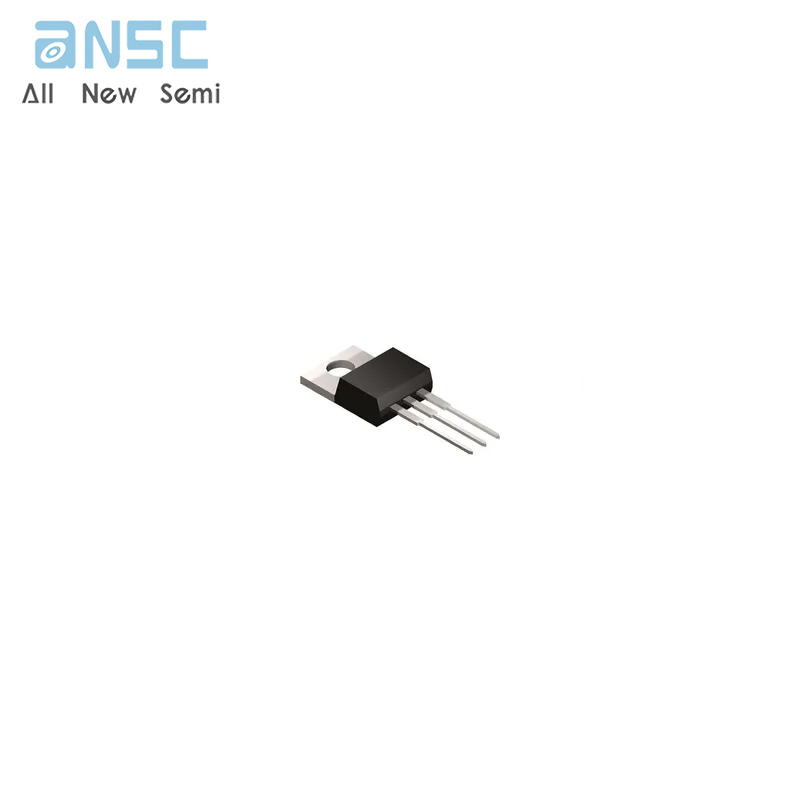

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MSRF1560G Soft Recovery Power Rectifier TO220 spot stock
Manufacturer Product Number
MSRF1560G
Description
MSRF1560G Soft Recovery Power Rectifier TO220 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These state−of−the−art devices are designed for boost converter orhard−switched converter applications, especially for Power FactorCorrection application . It could also be used as a free wheeling diodein variable speed motor control applications and switching modepower supplies .
Product Features
• Soft Recovery with Low Reverse Recovery Charge (QRR) and Peak Reverse Recovery Current (IRRM)
• 150°C Operating Junction Temperature
• Popular TO−220 Package
• Epoxy meets UL 94 V−0 @ 0.125 in
• Low Forward Voltage
• Low Leakage Current
• High Temperature Glass Passivated Junction
• Pb−Free Package is Available
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MSRF1560G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | SWITCHMODE™ |
| Packaging | Tube |
| Part Status | Obsolete |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Current - Reverse Leakage @ Vr | 15 µA @ 600 V |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack |
| Supplier Device Package | TO-220FP |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | MSRF1560 |
Product Photos
For more product information, please download the PDF
