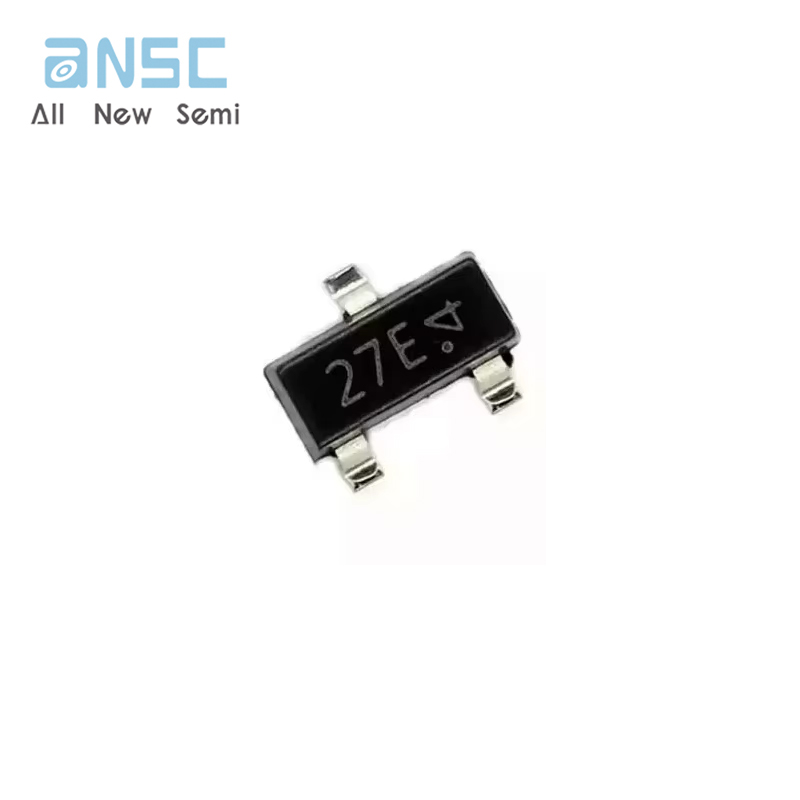

High Quality 27E.4 TVS DIODE 24V 44V SOT23-3 NUP2105LT1G
Manufacturer Product Number
NUP2105LT1G
Description
NUP2105LT1G 27 V ESD Protection Diode - Dual Line CAN Bus Protector, SOT-23 (TO-236) 3 LEAD, 3000-REEL
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Dual Line CAN Bus Protector The NUP2105L has been designed to protect the CAN transceiver in high−speed and fault tolerant networks from ESD and other harmful transient voltage events. This device provides bidirectional protection for each data line with a single compact SOT−23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements. Features • 350 W Peak Power Dissipation per Line (8 x 20 μsec Waveform) • Low Reverse Leakage Current (< 100 nA) • Low Capacitance High−Speed CAN Data Rates • IEC Compatibility: − IEC 61000−4−2 (ESD): Level 4 − IEC 61000−4−4 (EFT): 40 A – 5/50 ns − IEC 61000−4−5 (Lighting) 8.0 A (8/20 μs) • ISO 7637−1, Nonrepetitive EMI Surge Pulse 2, 9.5 A (1 x 50 μs) • ISO 7637−3, Repetitive Electrical Fast Transient (EFT) EMI Surge Pulses, 50 A (5 x 50 ns) • Flammability Rating UL 94 V−0 • Pb−Free Packages are Available Applications • Industrial Control Networks ♦ Smart Distribution Systems (SDS) ♦ DeviceNet • Automotive Networks ♦ Low and High−Speed CAN ♦ Fault Tolerant CAN |
Product Description
| Type | Description |
| Part# | NUP2105LT1G |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 24V (Min) |
| Voltage - Breakdown (Min) | 26.2V |
| Voltage - Clamping (Max) @ Ipp | 44V |
| Current - Peak Pulse (10/1000µs) | 8A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | NUP2105 |
