Hot-selling and scarce SMDB05C STANDARD CAPACITANCE TVS ARRAY SOP8 spot stock
Manufacturer Product Number
SMDB05C
Description

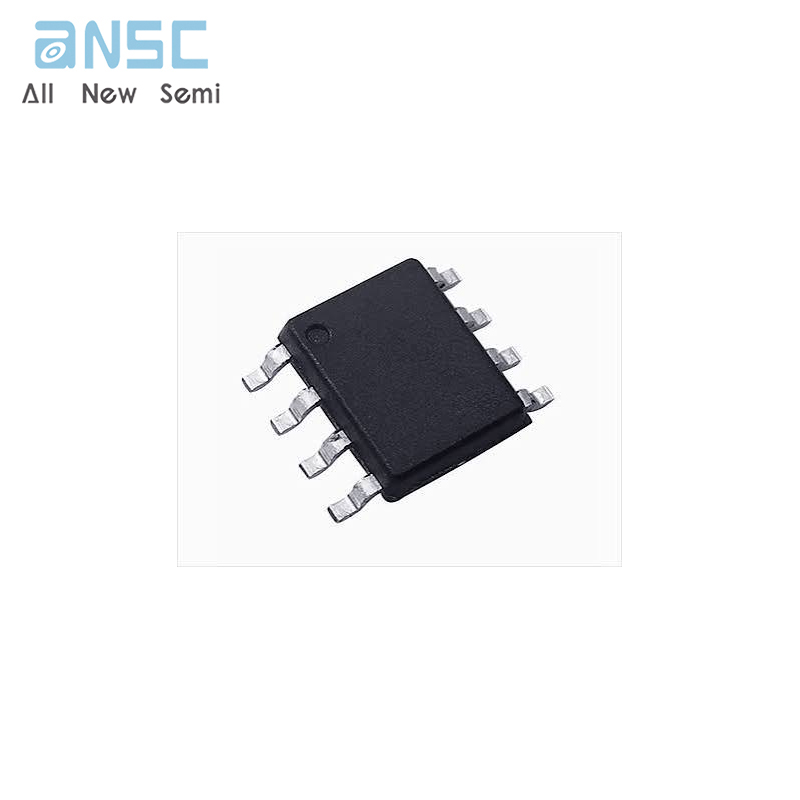

SMDB05C STANDARD CAPACITANCE TVS ARRAY SOP8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SMDBXXC series of TVS array have been designed to provide bidirectional protection for sensitive electronics from damage due to voltage transients caused by electrostatic discharge (ESD),electrical fast transients (EFT),lightning and other voltage-induced transient events.The device can be used to protect combinations of four Bidirectional lines.
Product Features
Protects 3.3,5,12,15,24 V Components
Bidirectional
Provides Electrically Isolated Protection
500 W @8/20 us
Protects 4 Lines
SO-8 Packaging
This is a Pb −Free Device
“-A”is an AEC-Q101 qualified device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Product Applications
RS-232 data lines
Microprocessor Based Equipment
Notebooks,Desktops,&Servers
LAN/WAN Equipment
Serial and Parallel Port
Peripherals
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SMDB05C |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.8V |
| Current - Peak Pulse (10/1000µs) | 1A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 300pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | SMDB05 |
