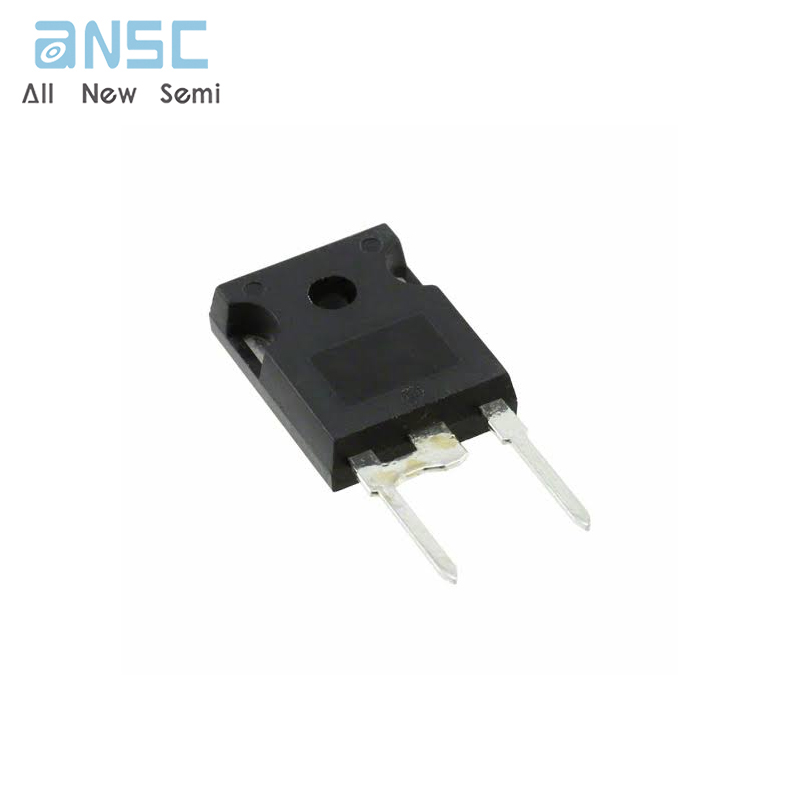

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce VS-8ETU04-N3 Ultrafast Rectifier Diode 400 V 8A Through Hole TO-220AC spot stock
Manufacturer Product Number
VS-8ETU04-N3
Description
VS-8ETU04-N3 Ultrafast Rectifier Diode 400 V 8A Through Hole TO-220AC spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The state of the art ultrafast recoveryrectifiers specifically designed with optimized performanceof forward voltage drop and ultrafast recovery time .
The planar structure and the platinum doped life timecontrol, guarantee the best overall performance,ruggedness and reliability characteristics .
These devices are intended for use in the outputrectification stage of SMPS, UPS, DC/DC converters as wellas freewheeling diode in low voltage inverters and choppermotor drives .
Their extremely optimized stored charge and low recoverycurrent minimize the switching losses and reduce overdissipation in the switching element and snubbers .
Product Features
• Ultrafast recovery time
• Low forward voltage drop
• 175 °C operating junction temperature
• Low leakage current
• Designed and qualified according to JEDEC-JESD47
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-VS-8ETU04-N3 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | FRED Pt® |
| Packaging | Tube |
| Part Status | Obsolete |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 43 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | 8ETU04 |
Product Photos
For more product information, please download the PDF
