Hot sale Original ZMM5256B Zener Diode, 30V V(Z), 5%, 0.5W, Silicon, Unidirectional MINIMELF-2 0.5W 30V 5%
Manufacturer
Manufacturer Product Number
ZMM5256B
Description
Original ZMM5256B Zener Diode, 30V V(Z), 5%, 0.5W, Silicon, Unidirectional MINIMELF-2 0.5W 30V 5%
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
• 500mW。 Maximum power dissipation of 500 mW
• Low zener impedance
• High stability and high reliability
• Low reverse leakage
• Lead and body according with RoHS standard
Product Description
| Type# | Description |
| ANSC PART# | ANSC - ZMM5256B |
| Ihs Manufacturer | Original |
| Part Package Code | MELF |
| Package Description | MINIMELF-2 |
| Pin Count | 2 |
| Reach Compliance Code | Compliant |
| Samacsys Manufacturer | / |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | ZENER DIODE |
| Dynamic Impedance-Max | 49 Ω |
| JESD-30 Code | O-LELF-R2 |
| JESD-609 Code | e3 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 200 °C |
| Operating Temperature-Min | -65 °C |
| Package Body Material | GLASS |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 0.5 W |
| Qualification Status | Not Qualified |
| Reference Voltage-Nom | 30 V |
| Surface Mount | YES |
| Technology | ZENER |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | WRAP AROUND |
| Terminal Position | END |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Voltage Tol-Max | 5% |
| Working Test Current | 4.2 mA |

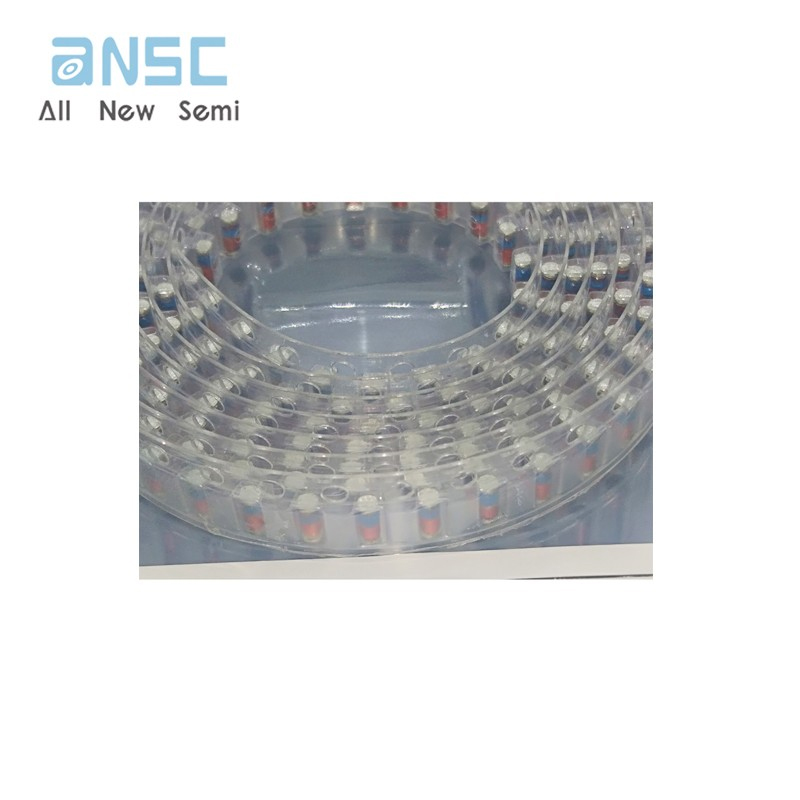

Actual image of the product

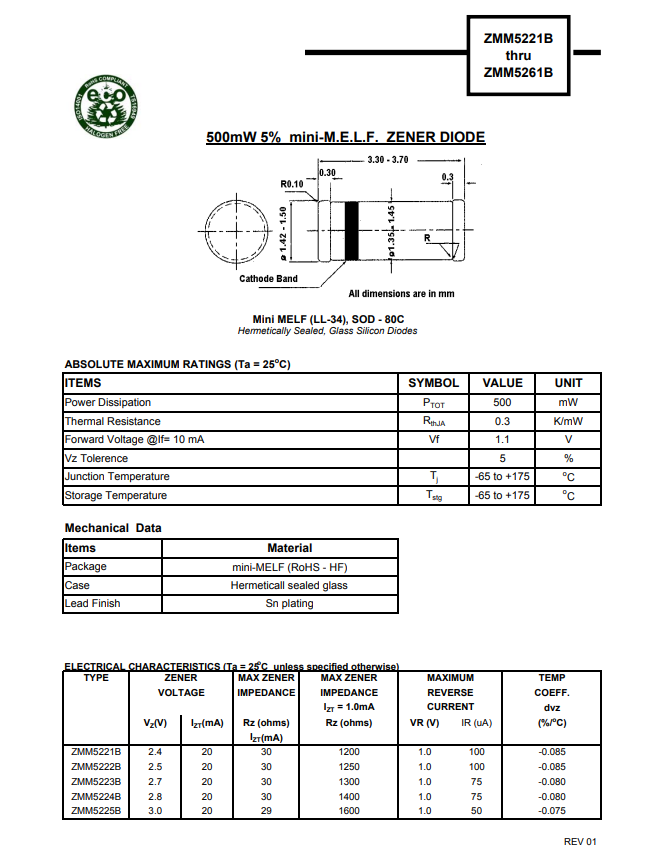

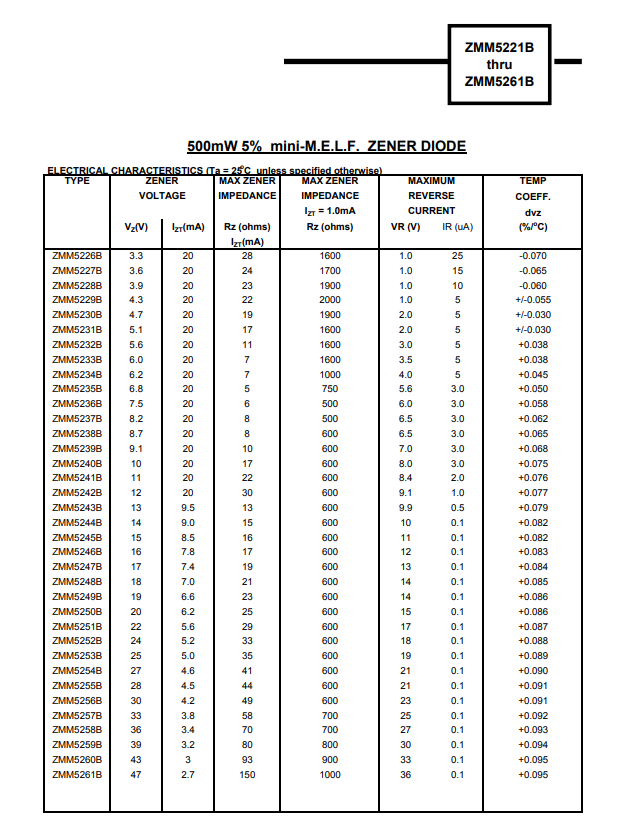

Product datasheet
For more information, please download
