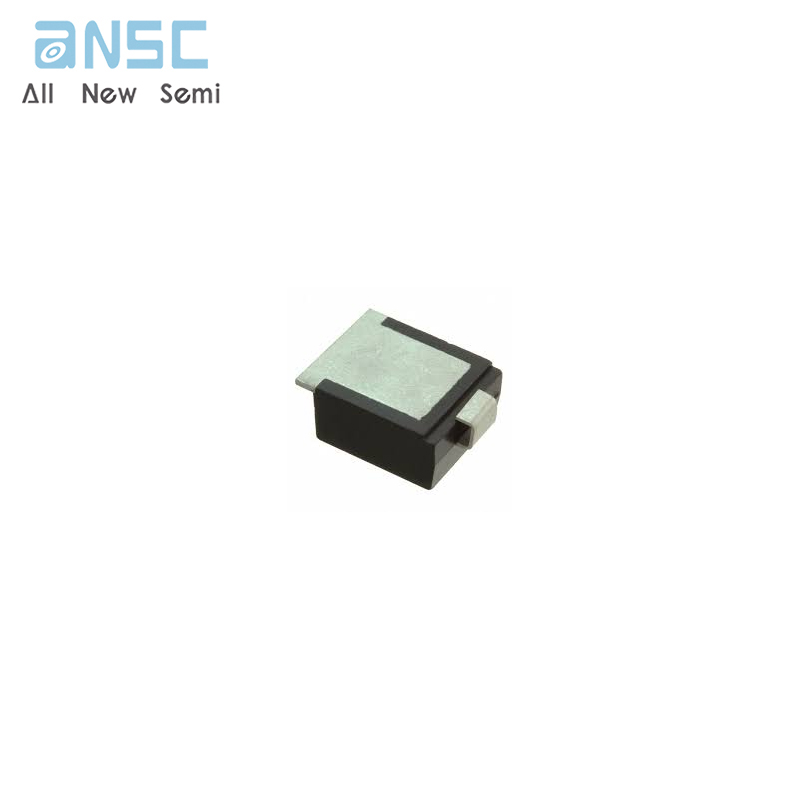

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce LTKAK6-066C Tvs Diode DO-218 spot stock
Manufacturer Product Number
LTKAK6-066C
Description
LTKAK6-066C Tvs Diode DO-218 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The LTKAK6 series offers superior clamping characteristics overstandard S .A .D . technologies by virtue of the Littelfuse Foldbacktechnology, which provides a clamping voltage lower than theavalanche voltage (but above the rated working voltage). Therefore,any voltage rise due to increased current conduction is containedto a minimum, providing the best possible protection level .ThisLTKAK6 series can be combined in series or parallel solutions tooffer various clamping levels and surge withstand options .
The LTKAK6 SMT package provides a more compact PCB layoutthan typical through-hole AK TVS components .
Product Features
■High Power TVS designed in a surface mount and compact SMTO-218 package
■Patent granted package design
■Foldback Technology for superior clamping characteristics
■Tube or tape and reel pack options available
■Ideal for automatic pick and place assembly and reflow process to reduce the manufacturing cost and increase the soldering quality as compared to axial leaded packages
■Low clamping and slope resistance .
■Meet MSL level1, per J-STD-020, LF maximum peak of 245°C
■Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD- 609A.01)
■UL Recognized compound meeting flammability rating V-0
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LTKAK6-066C |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Series | LTKAK6 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 66V |
| Voltage - Breakdown (Min) | 72V |
| Voltage - Clamping (Max) @ Ipp | 120V |
| Current - Peak Pulse(10/1000µs) | 6000A (6kA)(8/20µs) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 5500pF @ 10kHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Supplier Device Package | SMTO-218 Tab |
Product Photos
For more product information, please download the PDF
