Hot sale Original TPD1E10B06DPYT TVS DIODE 5.5VWM 14V Clamp 5A (8/20us) Tvs Diode Surface Mount 2-X1SON (1x.60) General Purpose
Manufacturer Product Number
TPD1E10B06DPYT
Description
Original TPD1E10B06DPYT TVS DIODE 5.5VWM 14V Clamp 5A (8/20us) Tvs Diode Surface Mount 2-X1SON (1x.60) General Purpose
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| High-side Power Switch for Motors, Solenoids, and Lamp Drivers The TPD1018F is a monolithic power IC for high-side switches. The IC has a vertical MOS FET output that can be directly driven from a CMOS or TTL logic circuit (e.g., an MPU). The device is equipped with intelligent self-protection and diagnostic functions. Features A monolithic power IC with a new structure combining a control block (Bi-CMOS) and a vertical power MOS FET (π-MOS) on a single chip One side of load can be grounded to a high-side switch Can directly drive a power load from a microprocessor. Built-in protection against overvoltage, thermal shutdown, and load short-circuiting Incorporates a diagnosis function that allows diagnosis output to be read externally in the event of loadshort-circuiting, overvoltage, or overheating. Low on-resistance : RDS (ON)= 0.8Ω(max) Low operating current : IDD= 120μA (typ.) (@VDD= 13.2V, VIN= 0V) 10-pin SSOP package for surface mounting |
Product Description
| Type | Description |
| ANSC PART# | TPD1E10B06DPYT |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 14V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 90W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 2-X1SON (1x.60) |
| Base Product Number | TPD1E10B06 |

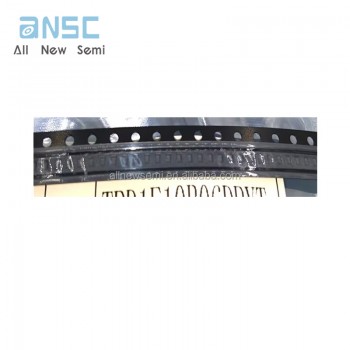

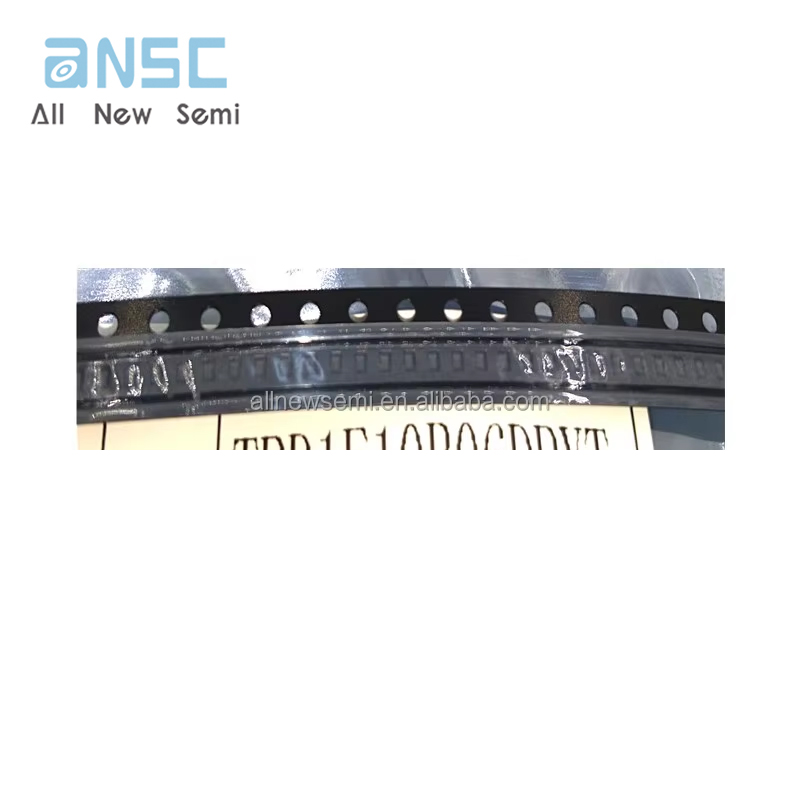

Actual image of the product

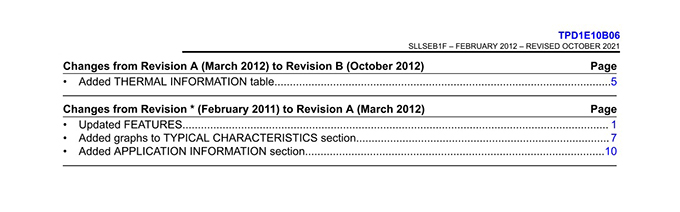

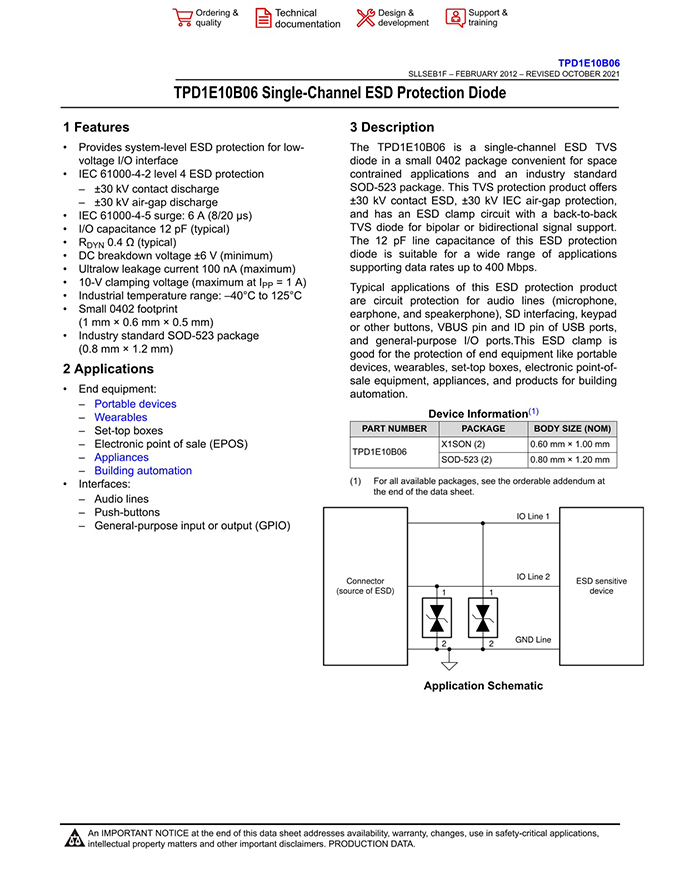

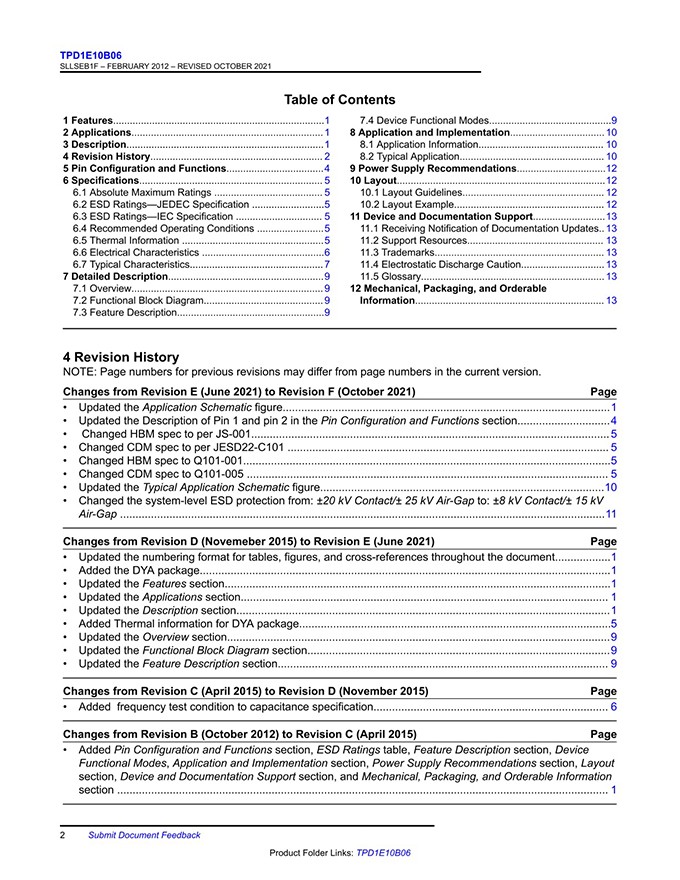

Product datasheet
