Hot sale Original BAS19 DIODE GP 120V 200MA SOT23-3 Rectifiers Single Diodes Surface Mount SOT-23-3
Manufacturer Product Number
BAS19
Description
Original BAS19 DIODE GP 120V 200MA SOT23-3 Rectifiers Single Diodes Surface Mount SOT-23-3
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
In this device, there is an average rectified current of 200mA volts.An unwanted consequence of the primary action of this electronic or electrical device is the production of 350mW heat.Forward current may not exceed 200mA.This is the maximum amount of 2A surge current that can be used.Depending on the capacitance, the device may deliver a value of 5pF.As the data chart indicates, the peak reverse is 100nA.
Product Features
an average rectified current of 200mA volts
the peak reverse is 100nA
Product Applications
BAS19 applications of single-phase diode rectifier
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
| Type | Description |
| ANSC PART# | ANSC- BAS19 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 100 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | BAS19 |

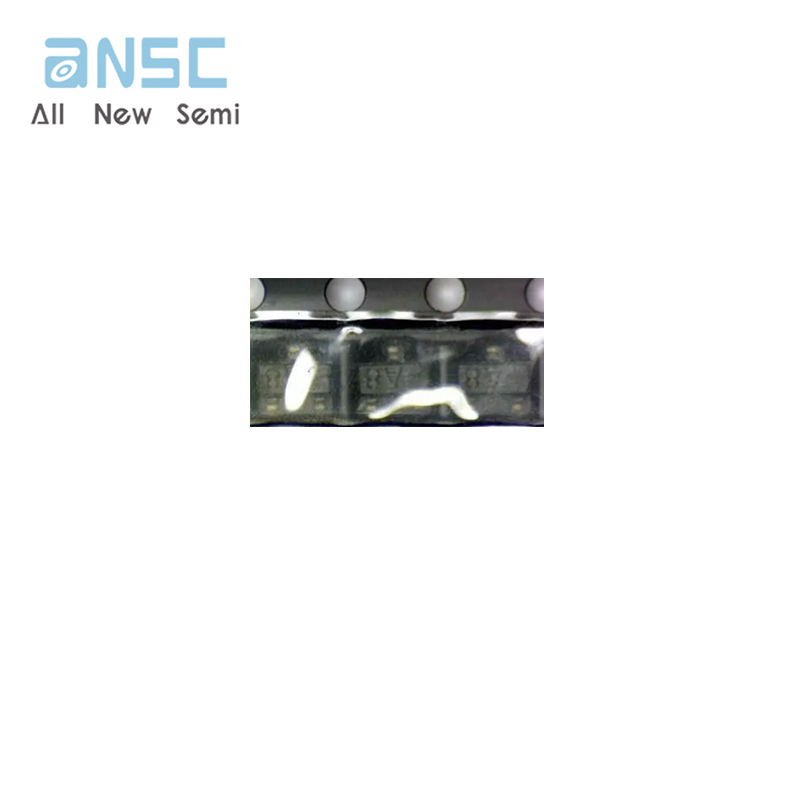

Actual image of the product
