2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER BOM distribution service electronic components B260A
Manufacturer Product Number
B260A
Description
B260A Rectifier Diode Schottky 1 Phase 1 Element 2A 60V V(RRM) Silicon SMA 2 PIN
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| Part# | B260A |
| Manufacturer | / |
| Package Description | SMA, 2 PIN |
| Pin Count | 2 |
| Samacsys Manufacturer | / |
| Additional Feature | FREE WHEELING DIODE |
| Application | GENERAL PURPOSE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.7 V |
| JESD-30 Code | R-PDSO-C2 |
| Non-rep Pk Forward Current-Max | 50 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -55 °C |
| Output Current-Max | 2 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 255 |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 60 V |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |

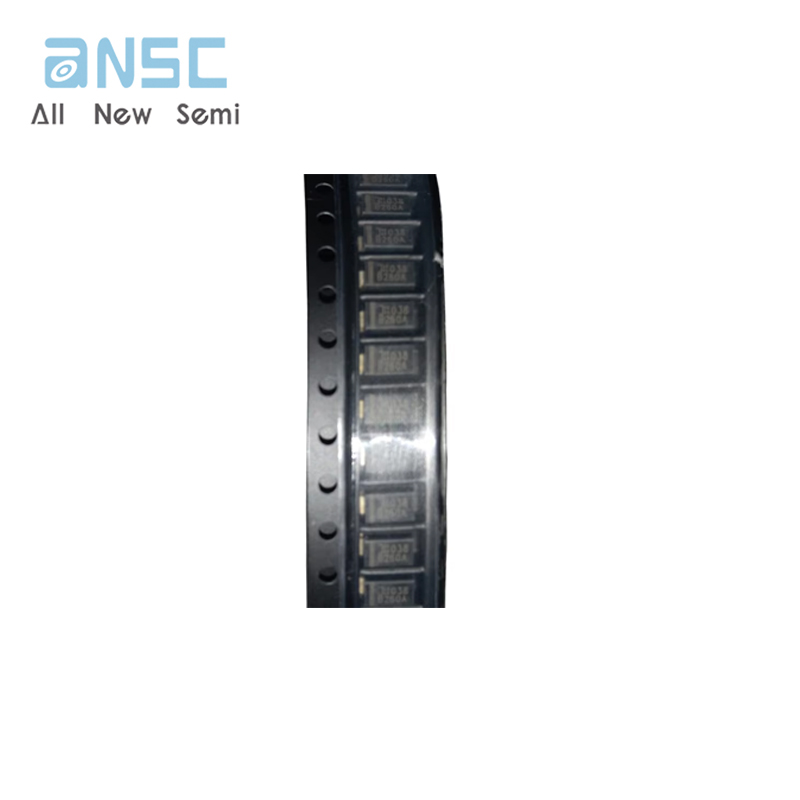

Actual image of the product

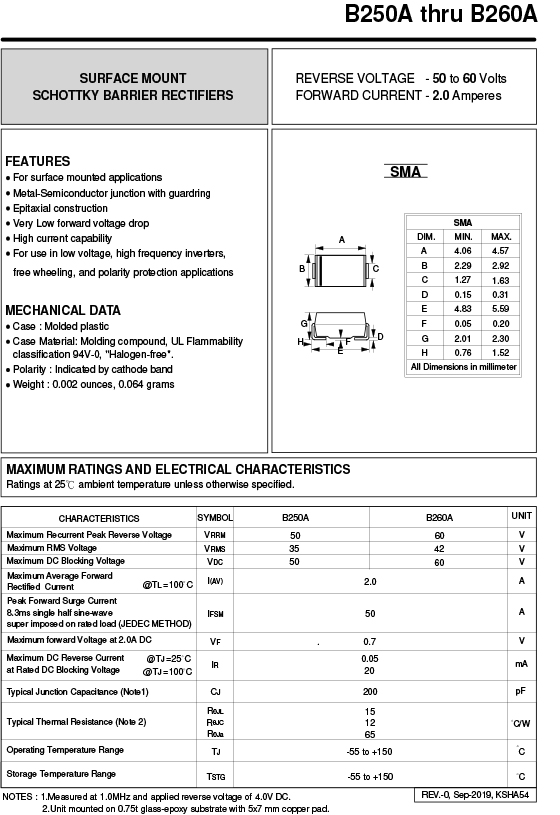

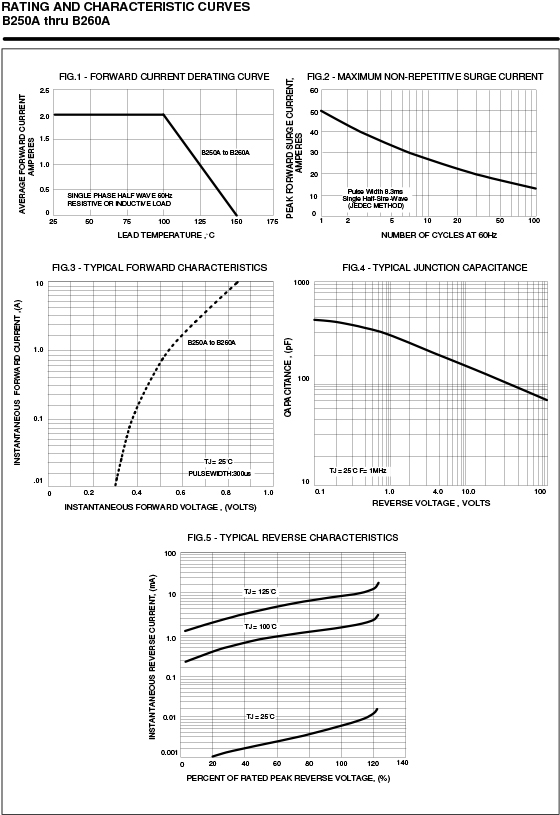

Product datasheet
For more information, please download
