Hot sale Original UCLAMP3301D.TCT TVS DIODE 3.3VWM 9.5VC SOD323 9.5V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount
Manufacturer Product Number
UCLAMP3301D.TCT
Description
UCLAMP3301D.TCT TVS DIODE 3.3VWM 9.5VC SOD323 9.5V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

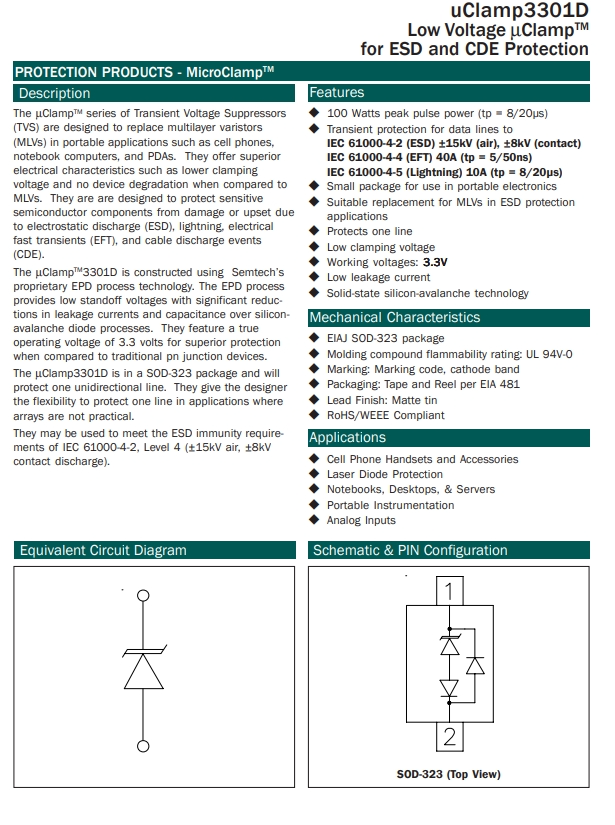

| Description The µClampTM series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs. They offer superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs. They are are designed to protect sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD), lightning, electrical fast transients (EFT), and cable discharge events (CDE). Features ◆ 100 Watts peak pulse power (tp = 8/20µs) ◆ Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (tp = 5/50ns) IEC 61000-4-5 (Lightning) 10A (tp = 8/20µs) ◆ Small package for use in portable electronics ◆ Suitable replacement for MLVs in ESD protection applications ◆ Protects one line ◆ Low clamping voltage ◆ Working voltages: 3.3V ◆ Low leakage current ◆ Solid-state silicon-avalanche technology Applications ◆ Cell Phone Handsets and Accessories ◆ Laser Diode Protection ◆ Notebooks, Desktops, & Servers ◆ Portable Instrumentation ◆ Analog Inputs |
Product Description
| Type | Description |
| ANSC PART# | ANSC-UCLAMP3301D.TCT |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | uClamp® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.5V |
| Voltage - Clamping (Max) @ Ipp | 9.5V |
| Current - Peak Pulse (10/1000µs) |
10A (8/20µs) |
| Power - Peak Pulse | 100W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 50pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | UCLAMP3301 |

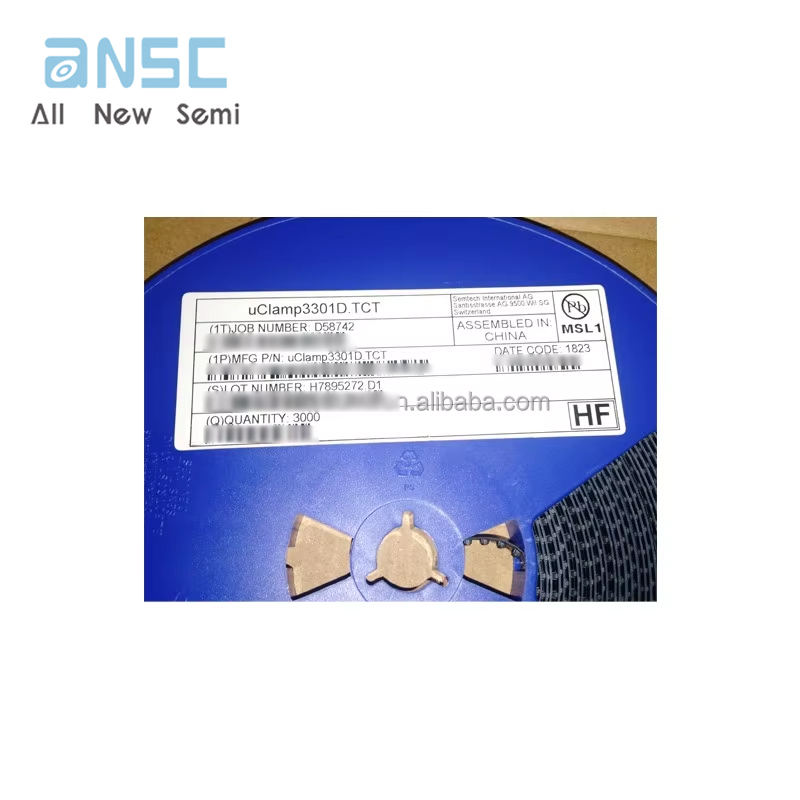

Actual image of the product

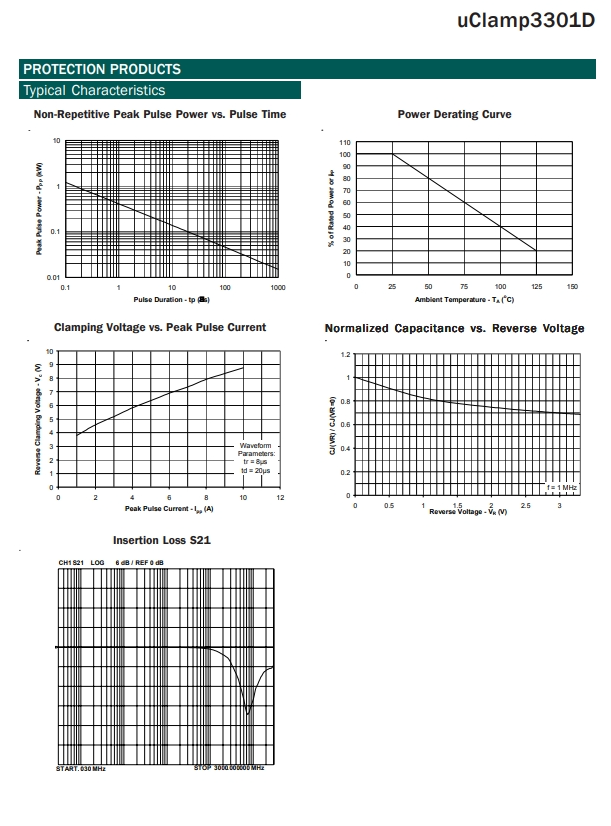

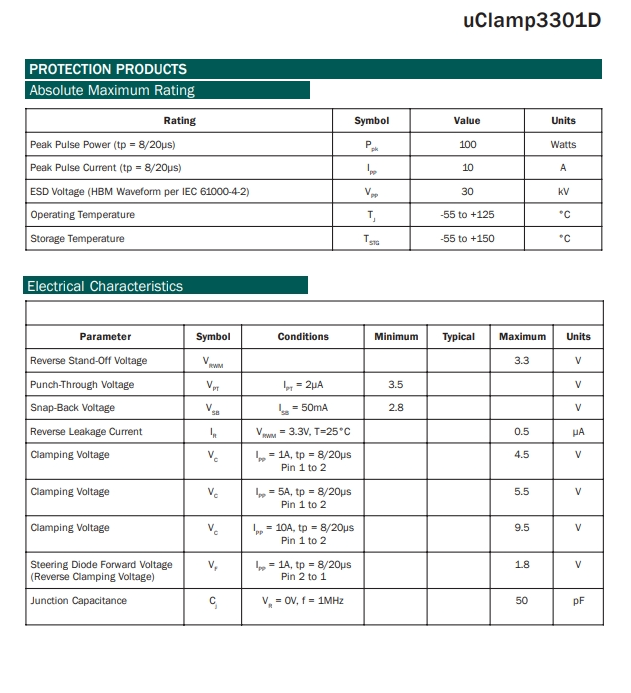

Product datasheet
For more information, please download
