Hot sale original BAT54CXV3T1G DIODE ARR SCHOT 30V 200MA SC893 Diode Array 1 Pair Common Cathode 30 V 200mA (DC) Surface Mount
Manufacturer Product Number
BAT54CXV3T1G
Description
BAT54CXV3T1G DIODE ARR SCHOT 30V 200MA SC893
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited.
Features
• Extremely Fast Switching Speed
• Low Forward Voltage − 0.35 V (Typ) @ IF = 10 mAdc
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Product Description
| Type# | Description |
| ANSC PART# | ANSC- BAT54CXV3T1G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-89, SOT-490 |
| Supplier Device Package | SC-89-3 |
| Base Product Number | BAT54 |

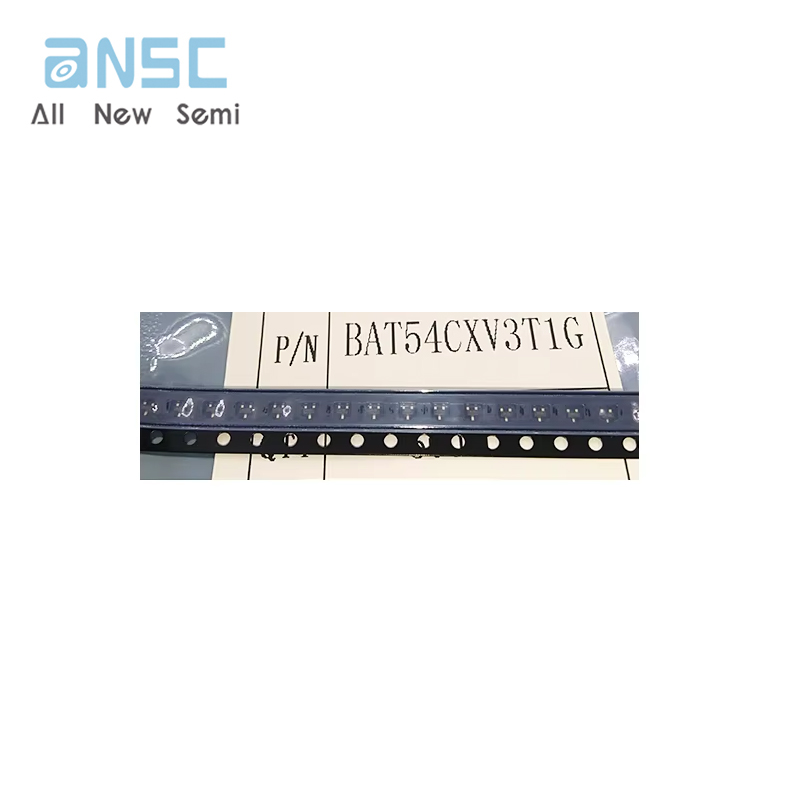

Actual image of the product

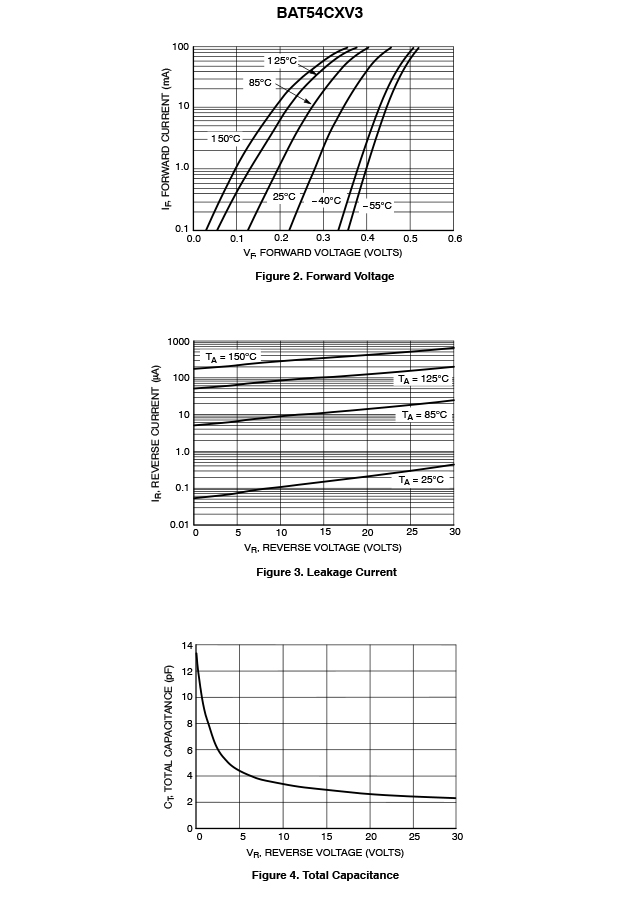

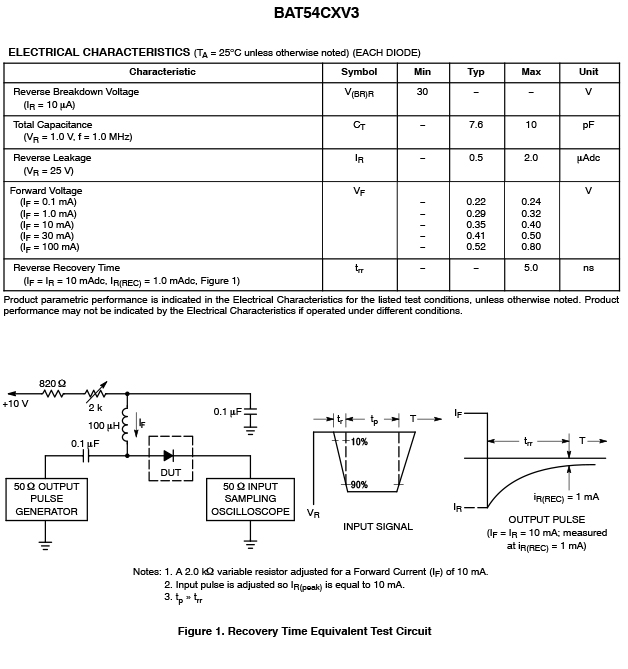

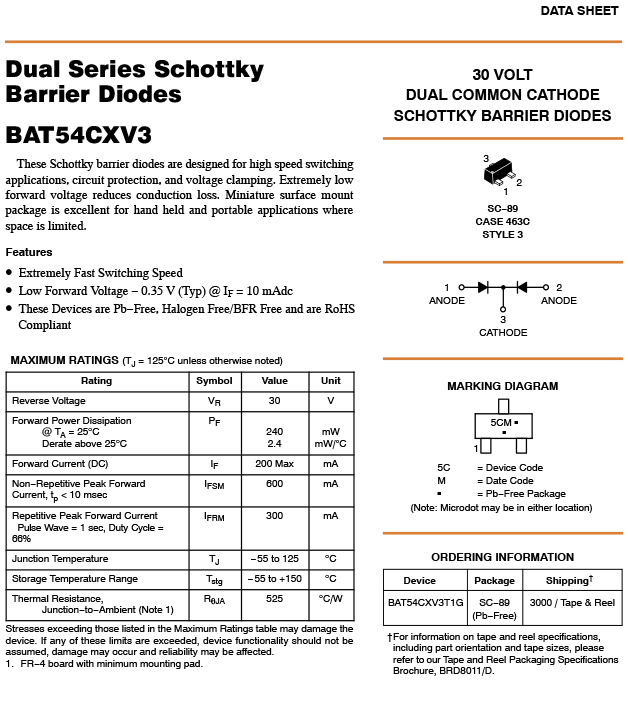

Product datasheet
For more information, please download
