Hot-selling and scarce MURS340T3G Ultra-fastRecovery Power Rectifiers DO-214A spot stock
Manufacturer Product Number
MURS340T3G
Description
MURS340T3G Ultra-fastRecovery Power Rectifiers DO-214A spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This series employs the state-of-the-art epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes, in surface mount applications where compact size and weight are critical to the system.
Product Features
• Small Compact Surface Mountable Package with J-Bend Leads
• Rectangular Package for Automated Handling
• High Temperature Glass Passivated Junction
• Low Forward Voltage Drop
(0.71 to 1.05 Volts Max @3.0 A,TJ = 150 °C)
• SURS8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;AEC-Q101 Qualified and PPAP Capable*
• These Devices are Pb-Free,Halogen Free/BFR Free and are RoHS Compliant
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MURS340T3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MURS340 |

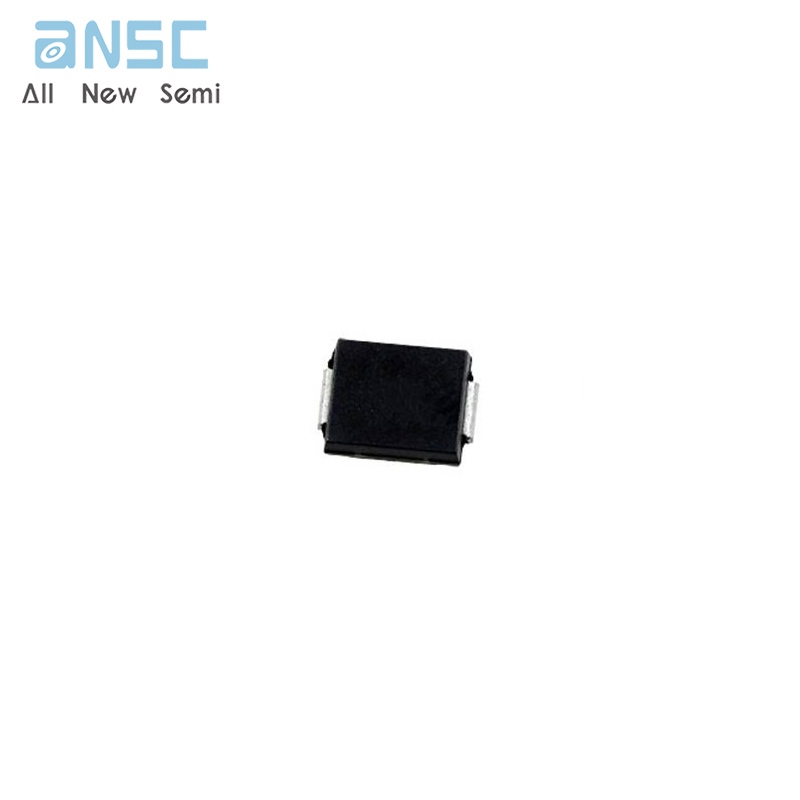

Product Photo
For more product information, please download the PDF
