Hot sale Original JAN1N752A-1 DIODE ZENER 5.6V 500MW DO204AH Zener Diode 5.6 V 500 mW ±5% Through Hole
Manufacturer Product Number
JAN1N752A-1
Description
JAN1N752A-1 DIODE ZENER 5.6V 500MW DO204AH Zener Diode 5.6 V 500 mW ±5% Through Hole DO-204AH (DO-35)
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

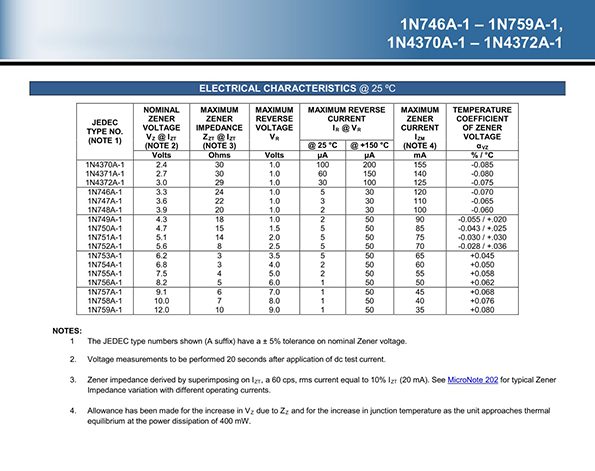

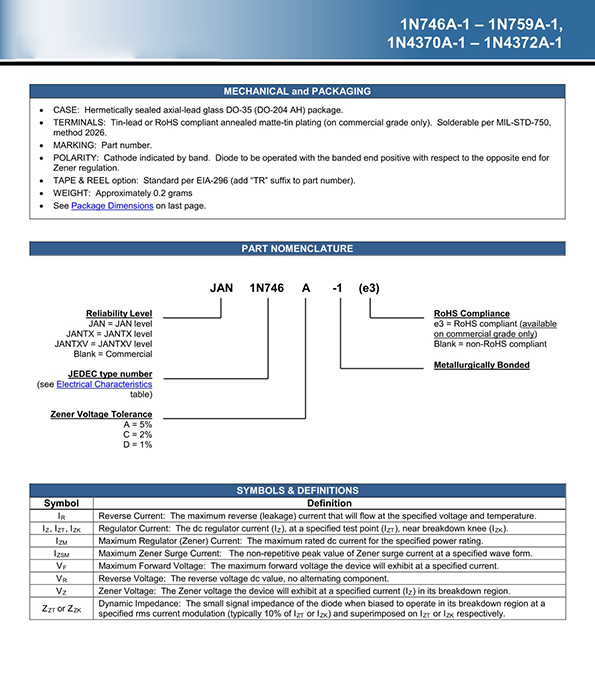

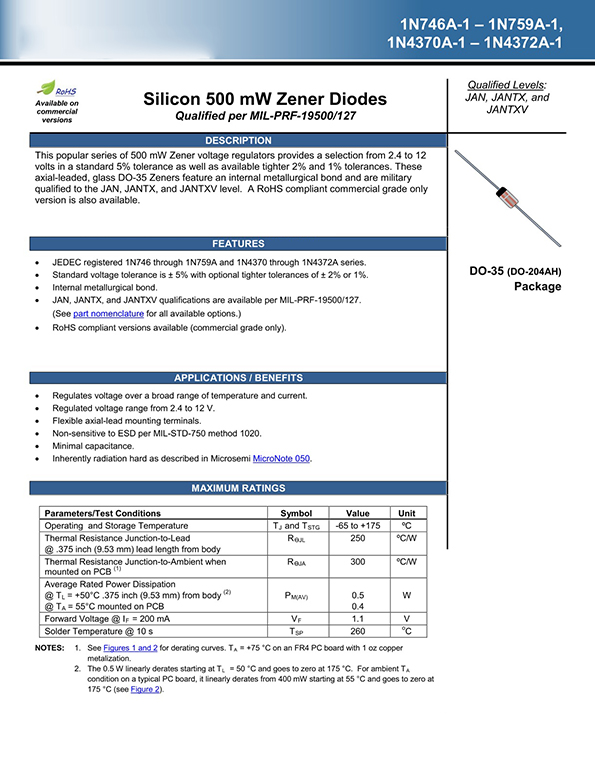

| DESCRIPTION The popular 1N746 thru 1N759A and 1N4370 thru 1N4372A series of 0.5 watt Zener Voltage Regulators provides a selection from 2.4 to 12 volts in standard 5 or 10 tolerances as well as tighter tolerances identified by different suffix letters on the part number. These glass axial-leaded DO-35 Zeners are also available with an internal-metallurgical-bond option by adding a “-1” suffix. These are also available in JAN, JANTX, and JANTXV military qualifications. Microsemi also offers numerous other Zener products to meet higher and lower power applications. FEATURES • JEDEC registered 1N746 thru 1N759A and 1N4370 thru 1N4372A series • Internal metallurgical bond option available by adding a “-1” suffix • Also available in JAN, JANTX, and JANTXV qualifications per MIL-PRF-19500/127 by adding the JAN, JANTX, or JANTXV prefixes to part numbers for desired level of screening as well as –1” suffix; (e.g. JANTX1N751A-1, JANTXV1N758C-1, etc.) • Military Surface Mount equivalents also available in DO-213AA by adding a UR-1 suffix in addition to the JAN, JANTX, and JANTXV prefix; e.g. JANTX1N962BUR-1 (see separate data sheet) • Commercial Surface Mount equivalents available as MLL746 to MLL759A and MLL4370 to MLL4372A including the “-1” suffix in the DO-213AA MELF style package (consult factory for others) • DO-7 glass body axial-leaded Zener equivalents are also available APPLICATIONS / BENEFITS • Regulates voltage over a broad operating current and temperature range • Selection from 2.4 to 12 V • Standard voltage tolerances are plus/minus 5 with A suffix identification and 10 with no suffix • Tight tolerances available in plus or minus 2 or 1 with C or D suffix respectively • Flexible axial-lead mounting terminals • Nonsensitive to ESD per MIL-STD-750 Method 1020 • Minimal capacitance (see Figure 3) • Inherently radiation hard as described in Microsemi MicroNote 050 |
Product Description
| Type | Description |
| ANSC PART# | ANSC- JAN1N752A-1 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 8 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 2.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C |
| Grade | Military |
| Qualification | MIL-PRF-19500/127 |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-204AH (DO-35) |
| Base Product Number | 1N752 |
