Hot sale Original RCLAMP0524P.TCT TVS DIODE 5VWM 15VC SLP2510P8 15V Clamp 5A (8/20µs) Ipp Tvs Diode
Manufacturer Product Number
RCLAMP0524P.TCT
Description
RCLAMP0524P.TCT TVS DIODE 5VWM 15VC SLP2510P8 15V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP2510P8
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The RCLAMP0524P.TCT is a RailClamp? TVS (Transistor Voltage Suppressor) diode, designed to provide low capacitance and high surge current protection for HDMI applications. This surface-mount device features a low capacitance of 300fF and a clamping voltage of 15V, making it suitable for protecting against voltage spikes and transients. Features: Low capacitance of 300fF for minimal signal distortion High surge current capability of 1A (10/1000μs) and 150W peak pulse power Operating temperature range of -55°C to 125°C (TJ) RoHS compliant and lead-free Nickel/Palladium/Gold (Ni/Pd/Au) terminal finish for reliable connections Surface-mount package with a 10-UFDFN footprint Applications: Primary Application: HDMI (High-Definition Multimedia Interface) protection Secondary Applications: Other high-speed data interfaces, such as DisplayPort, USB, and SATA |
Product Description
| Type | Description |
| ANSC PART# | ANSC-RCLAMP0524P.TCT |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | RailClamp® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Current - Peak Pulse (10/1000µs) |
5A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | Yes |
| Applications | HDMI |
| Capacitance @ Frequency | 0.8pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN |
| Supplier Device Package | SLP2510P8 |
| Base Product Number | RCLAMP0524 |

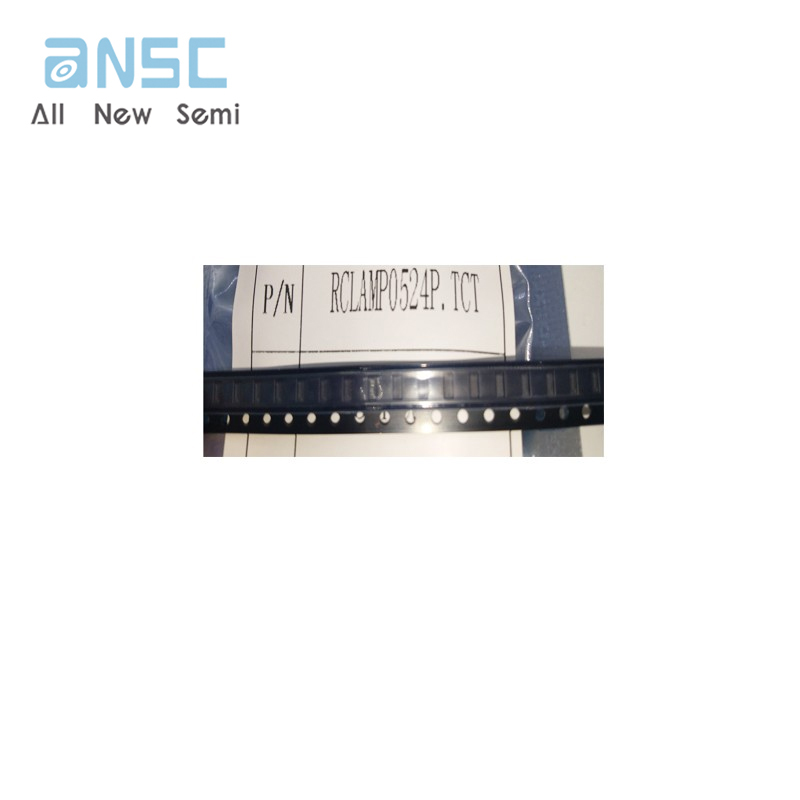

Actual image of the product

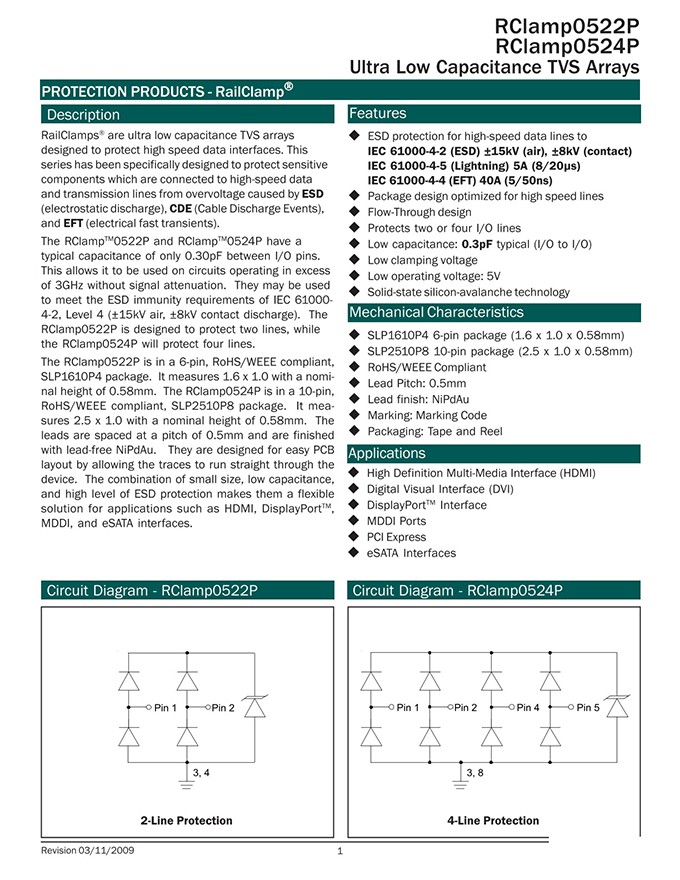

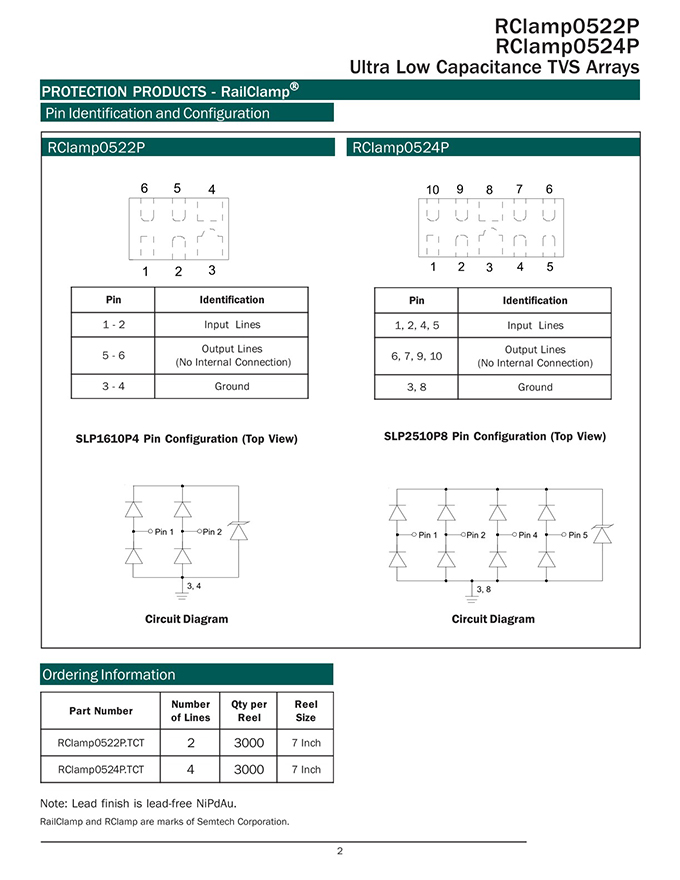

Product datasheet
For more information, please download
